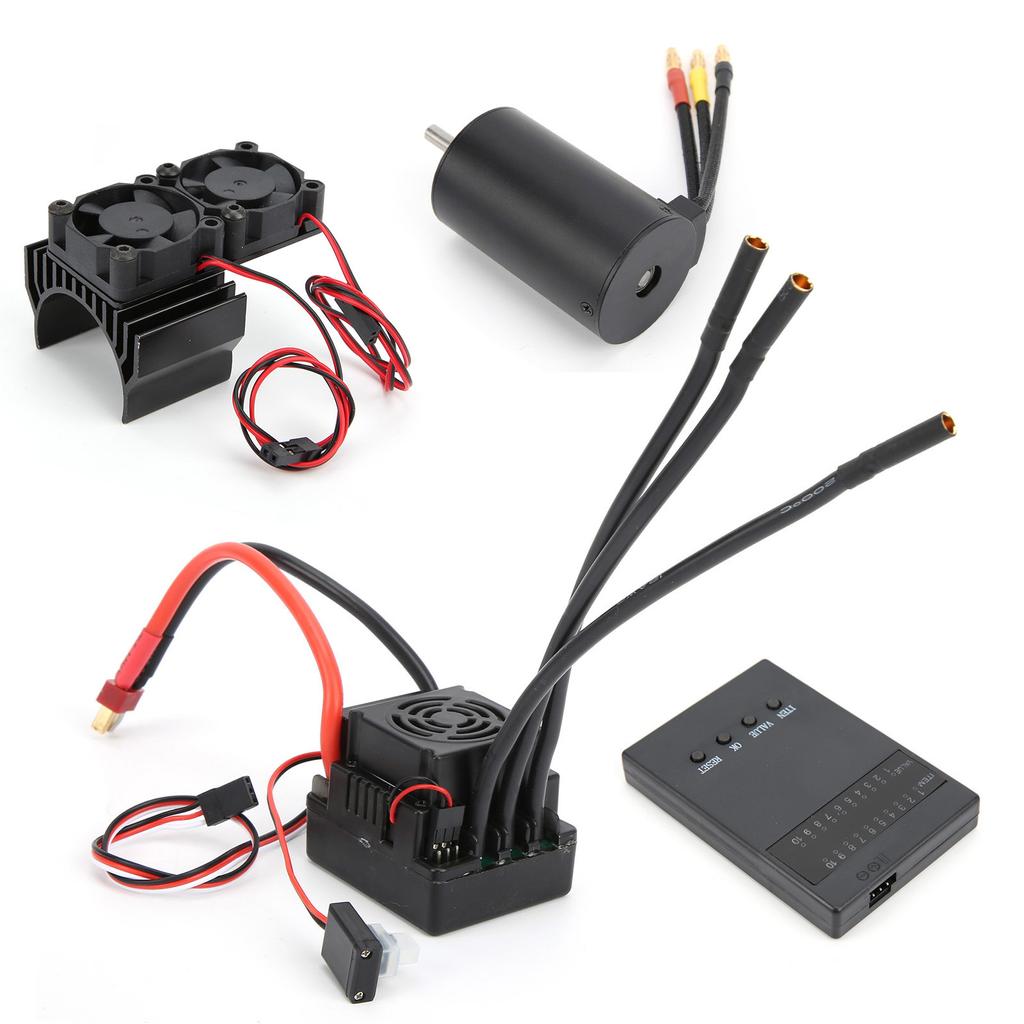

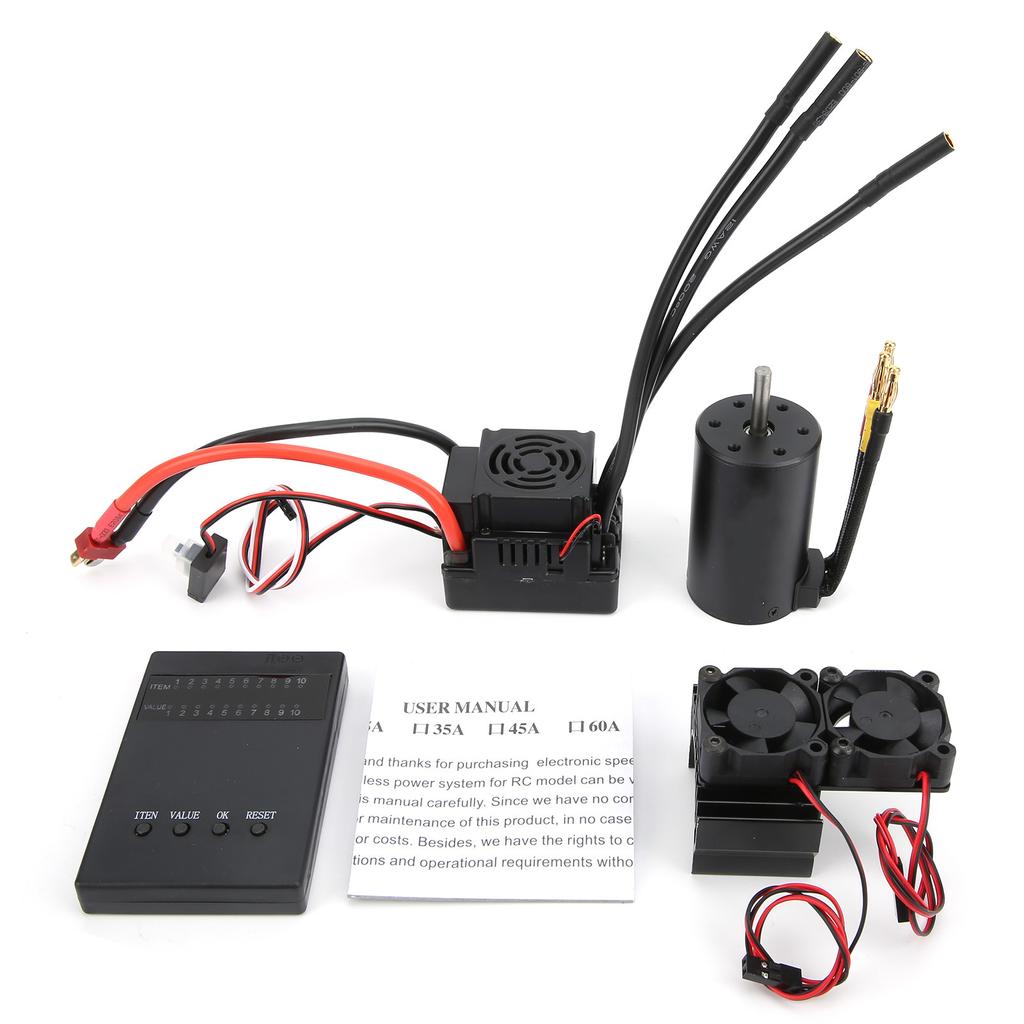

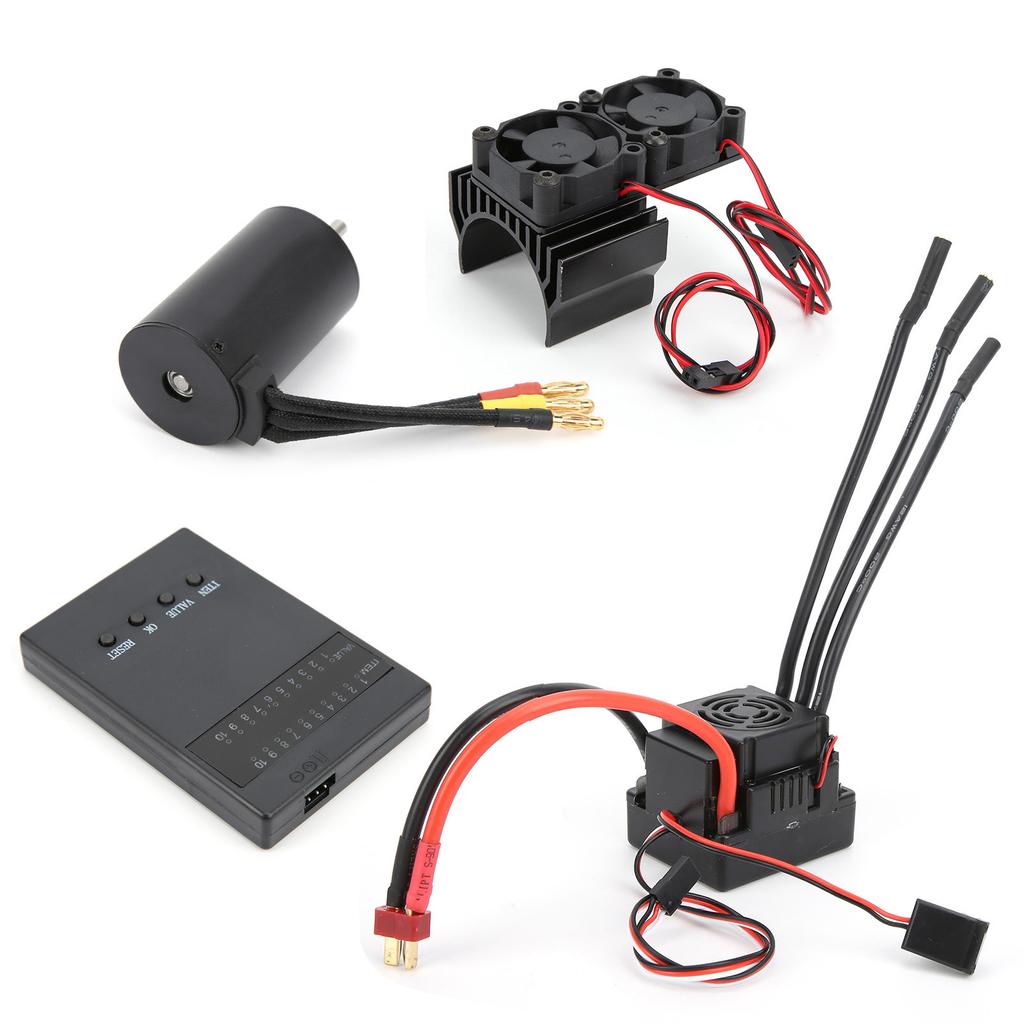

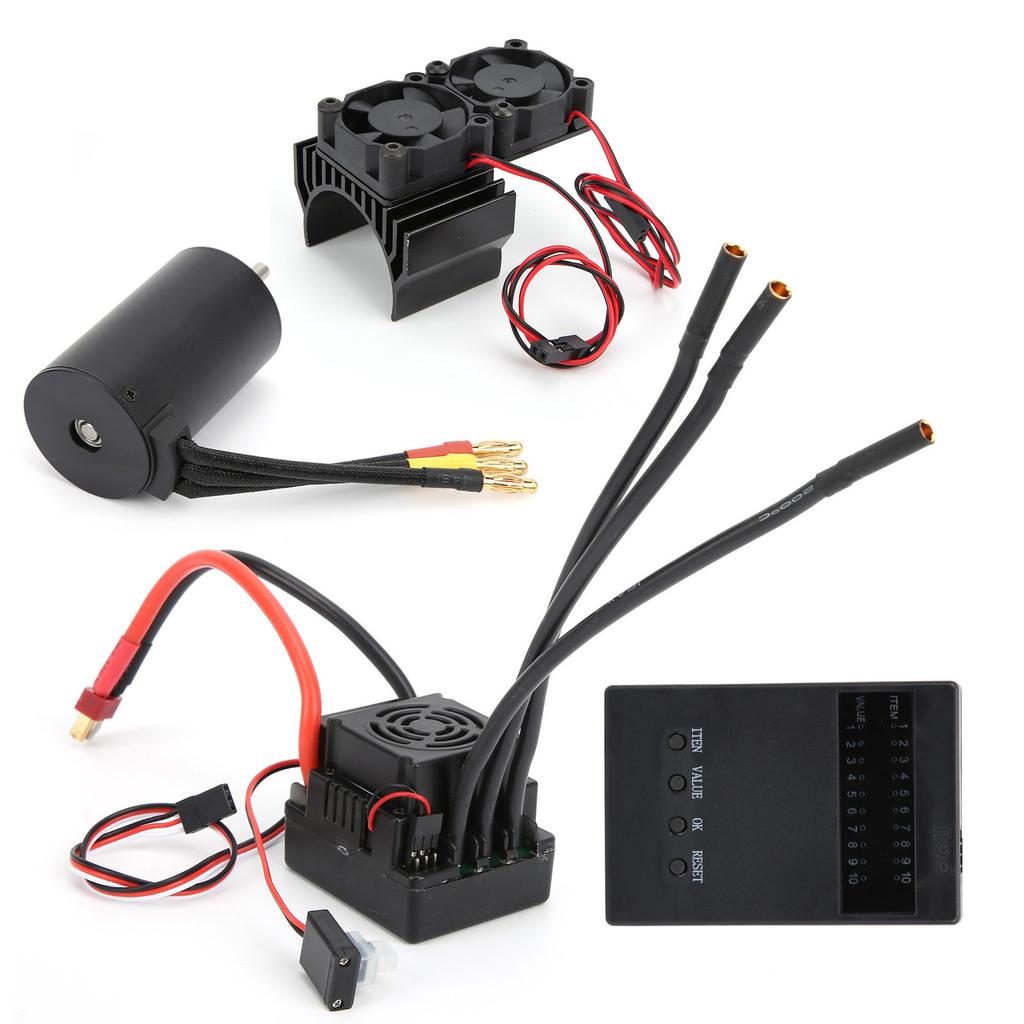

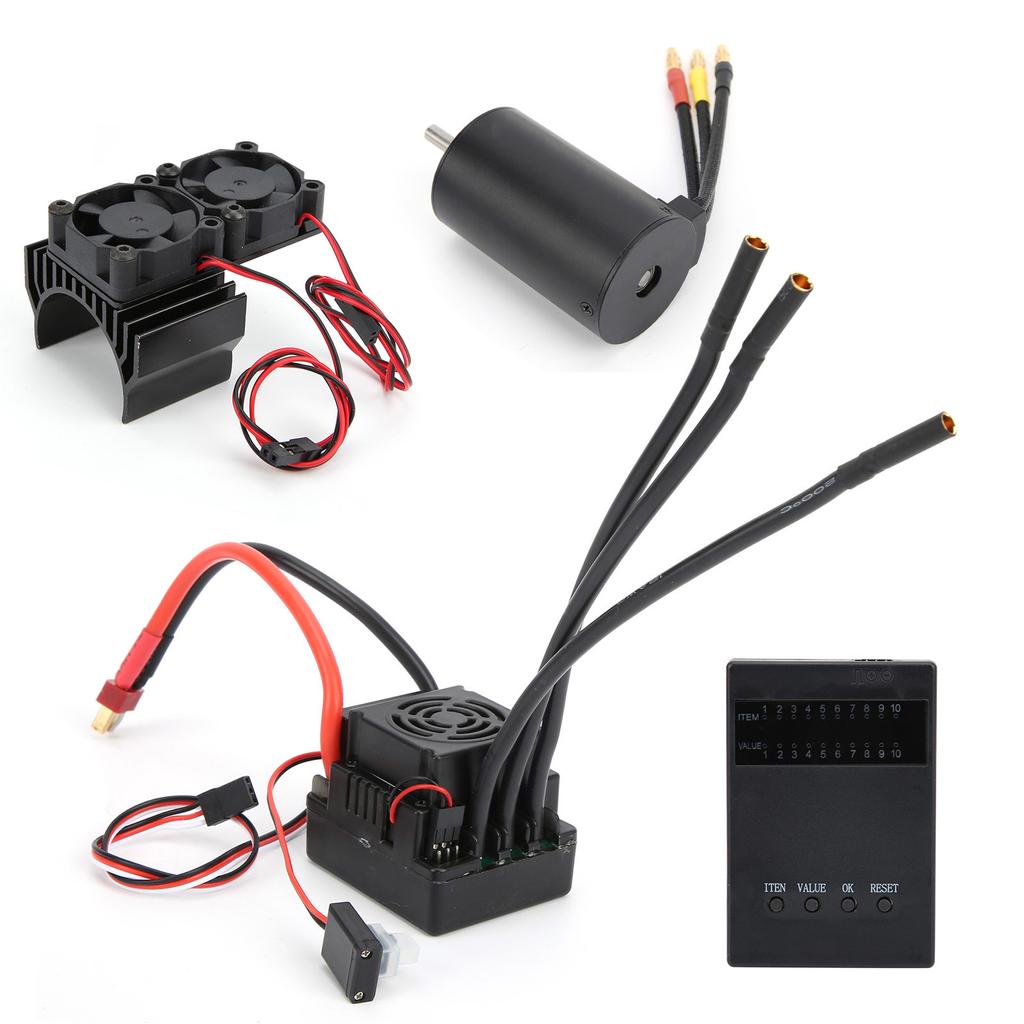

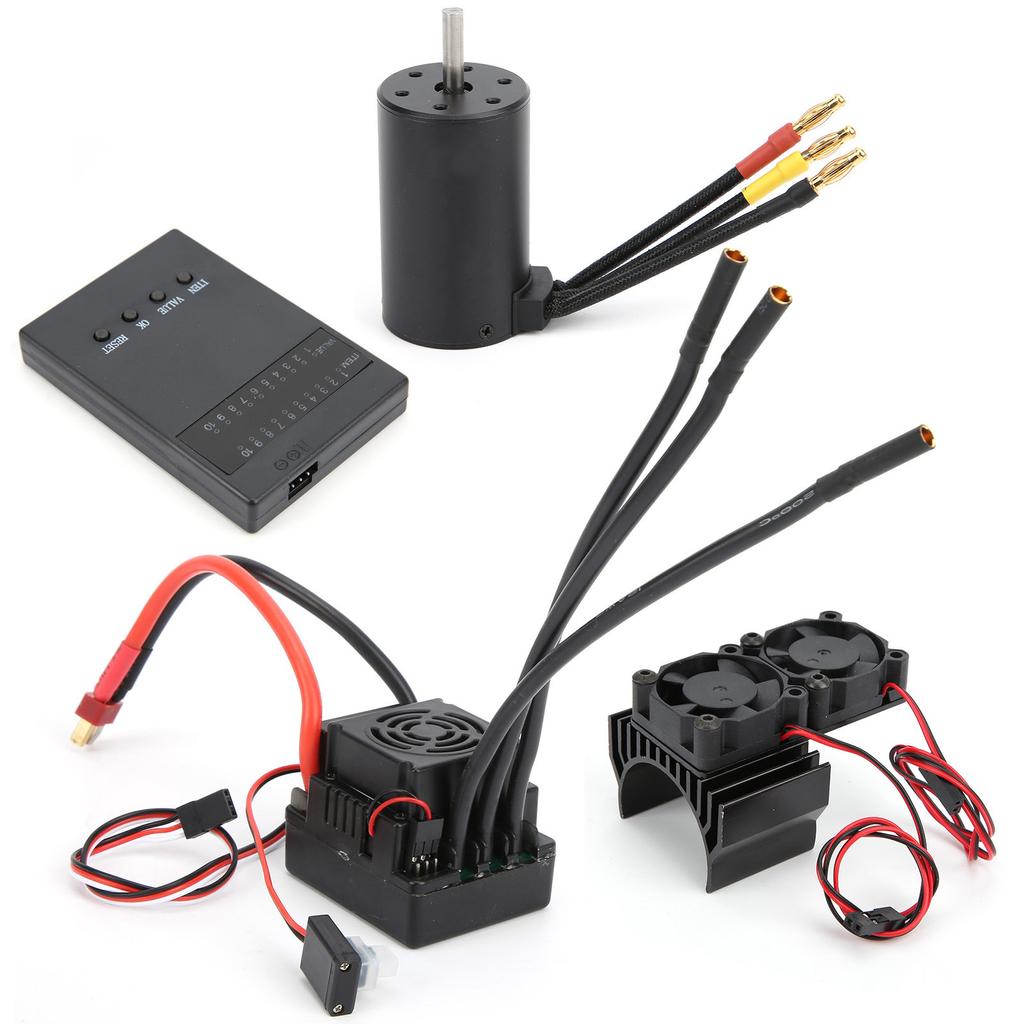

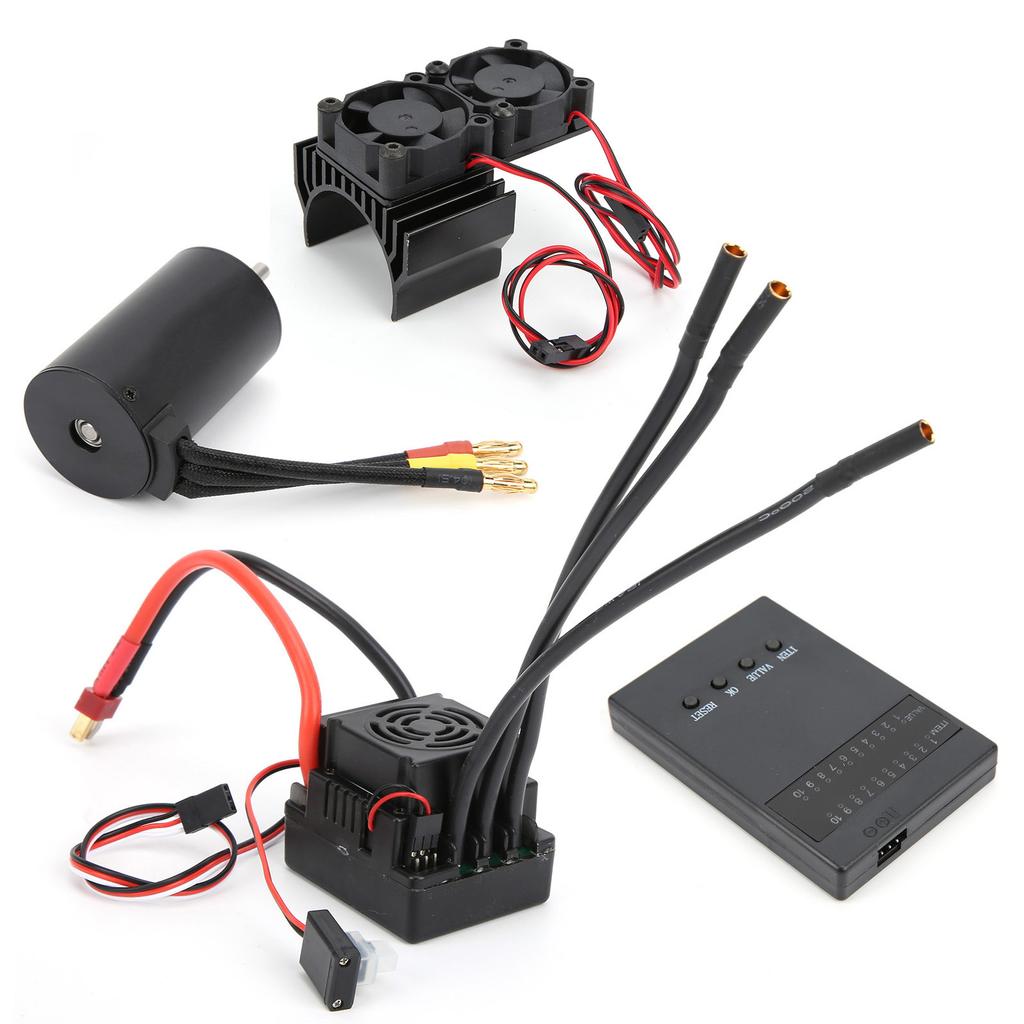

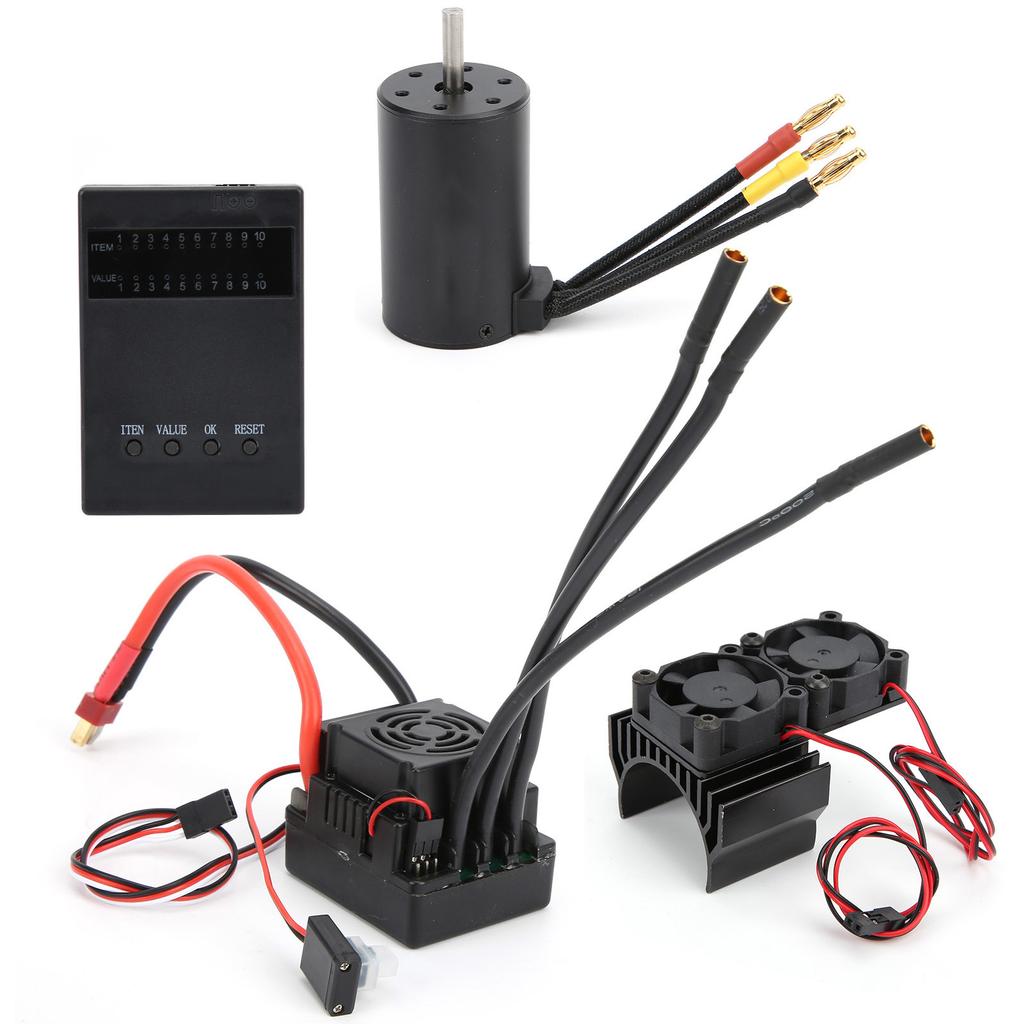

3660 3800KV Brushless Motor 80A ESC+Programmer Card Motor Heat Sink Set for 18 RC Car

Feature: 1. Super smoothly and precise throttle linearity, built?in high efficiency and high power 5.8V 3A SBEC. 2. Enhanced throttle response, excellent acceleration, strong braking and throttle linearity 3. Multiple protection functions, low?voltage cut?off protection for lithium or nickel batteries, overheat and throttle signal loss protection. 4. The high?purity copper winding maximizes efficiency and is precisely designed to achieve maximum energy coverage. 5. Through heatsink and cooling fan combination, the temperature can be controlled and the motor can be operated and cooled efficiently. Specification: Item Type: 3660 3800KV Motor Set Material: Aluminum Alloy+Copper+Plastic Color: As Picture Shown Weight: Approx. 457.0g16.1oz Motor Parameters: Maximum Voltage: <13V Maximum Amperage: 92A KV Value: 3800KV Maximum Speed: 50000 Diameter: Approx. 36mm1.4in Length: Approx. 60mm2.4in Shaft Length: Approx. 17mm0.7in Shaft Diameter: Approx. 5.0mm0.2in Plug Type: 4mm Golden Banana Plug ESC Parameters: Continuous Current: 80A Maximum Current: 480A (10 seconds) Applicable Power Supply: 24S LiPo 412S NiMh BEC: 5.8V3A Power Plug: T Plug Motor Plug: 4mm Banana Connector Cooling System: Cooling Fan Programmable: Yes Heatsink Parameters: Voltage: DC 56V Compatible for 33603670 Size Motor Suitable for 18 RC Car. Package List: 1 x Motor1 x ESC 1 x Motor Heatsink Fan1 x Programmer Card1 x Manual Note: 1. Avoid working temperature exceeding 65 degrees C (150 degrees F).2. Do not touch the motor after use, because the motor may overheat.3. Allow the motor to cool completely between uses.4. Make sure to use the correct size motor mounting screws.5. Do not over tighten the motor mounting screws.6. Please make sure that your power supply (battery pack, receiver, etc.) can provide a stable voltage not lower than 5.0V and not higher than 6.0VSuper smoothly and precise throttle linearity, built?in high efficiency and high power 5.8V 3A SBEC. Enhanced throttle response, excellent acceleration, strong braking and throttle linearity Multiple protection functions, low?voltage cut?off protection for lithium or nickel batteries, overheat and throttle signal loss protection. The high?purity copper winding maximizes efficiency and is precisely designed to achieve maximum energy coverage. Through heatsink and cooling fan combination, the temperature can be controlled and the motor can be operated and cooled efficiently.
