Hign-concerned Chemical : None
Model Number : 123
Type : Module
Origin : China
Condition : New
Description:

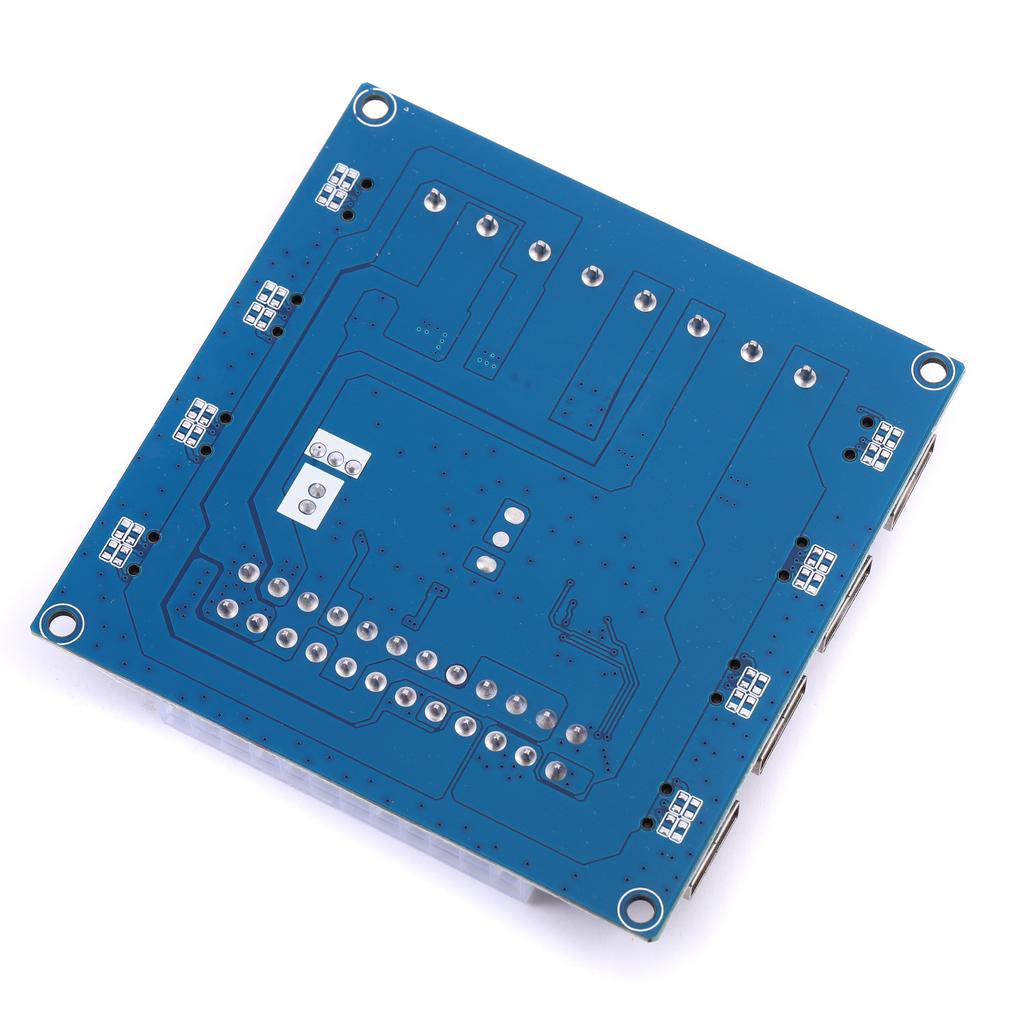

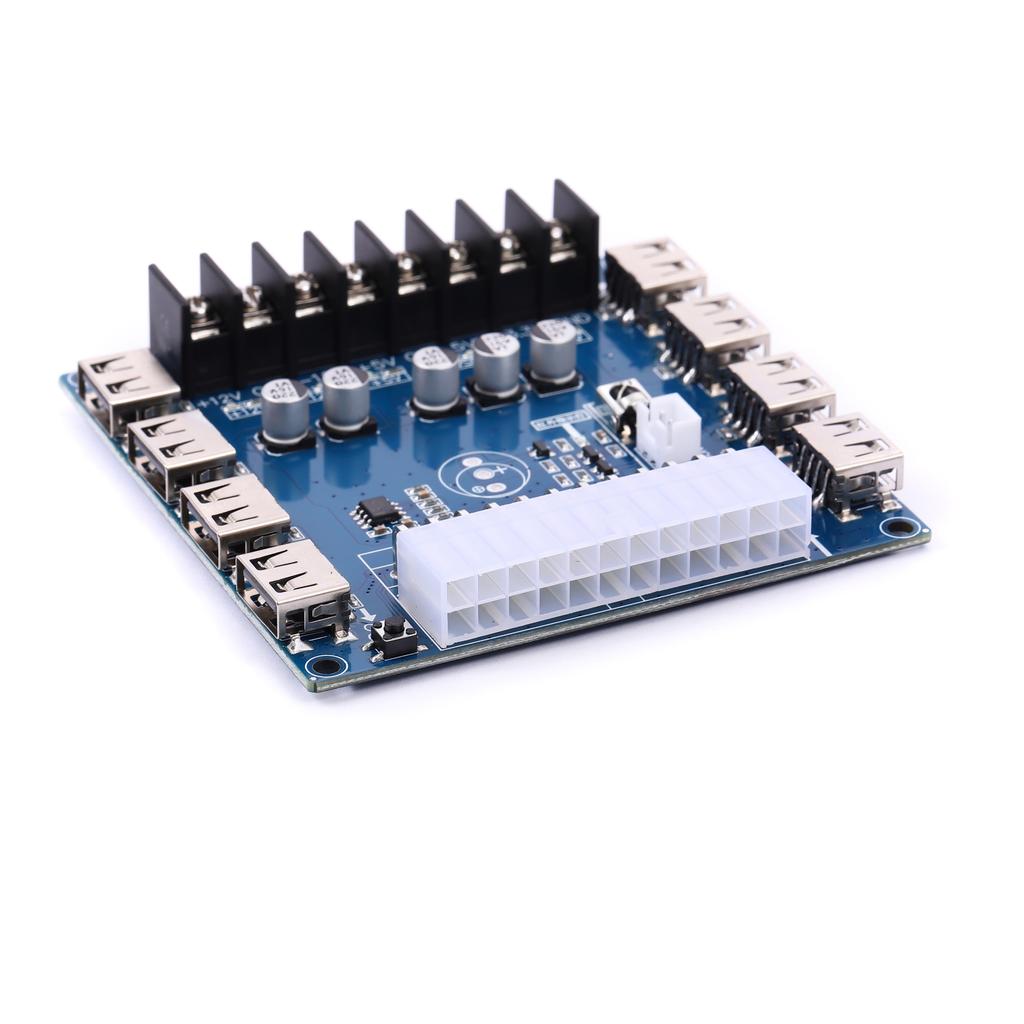

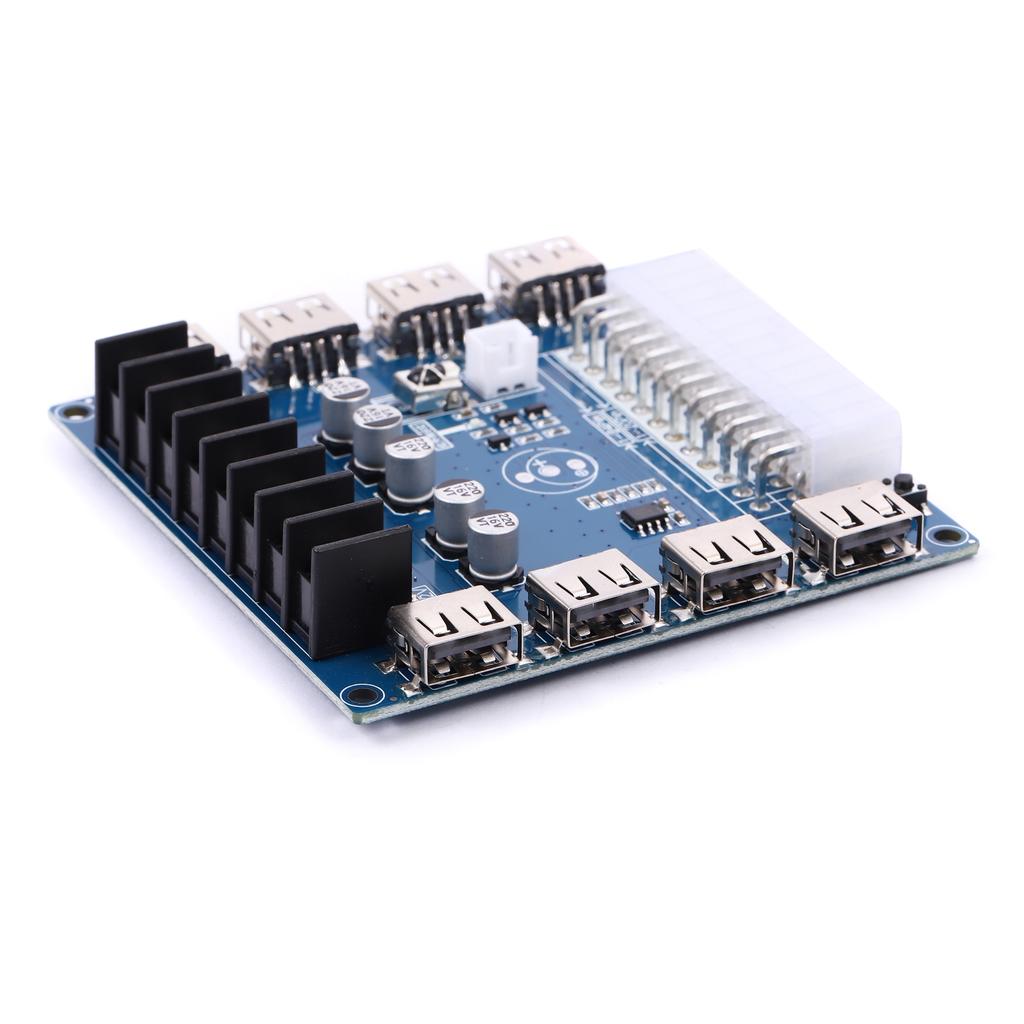

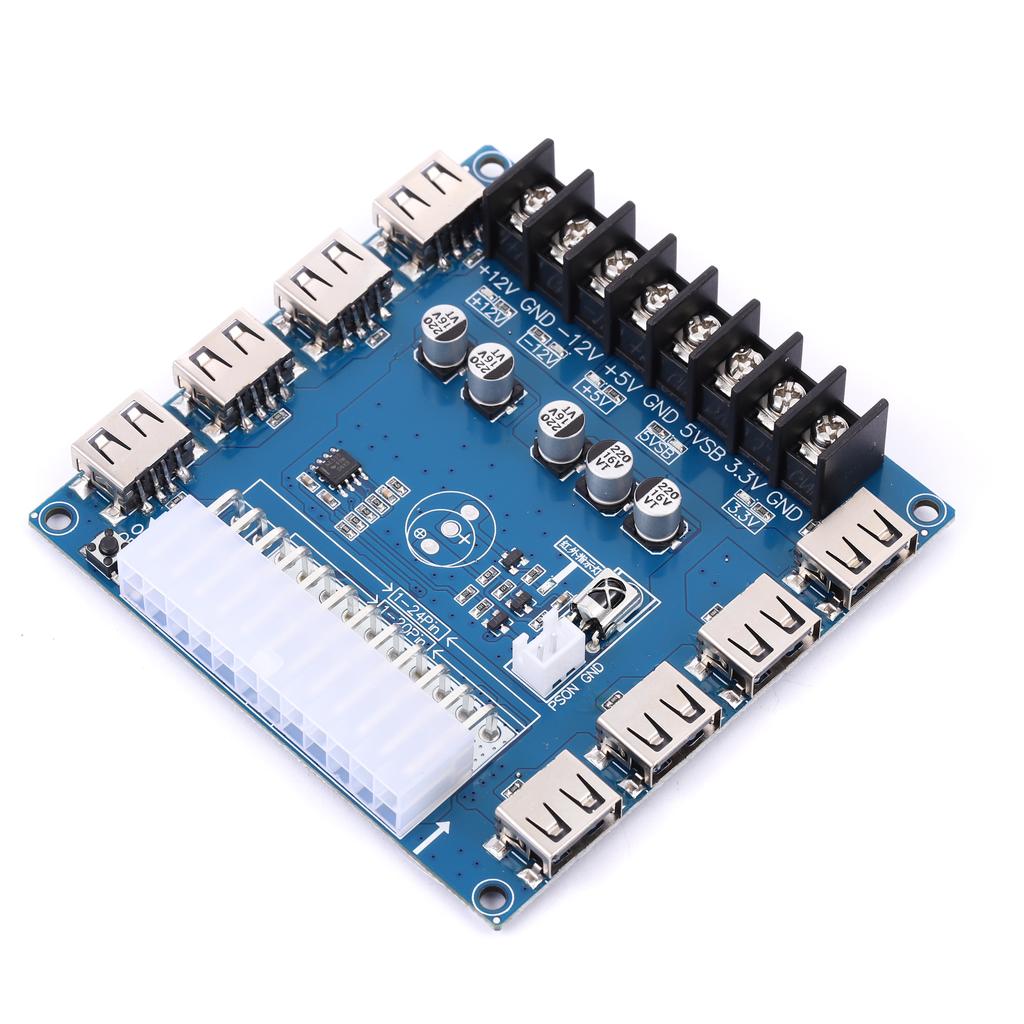

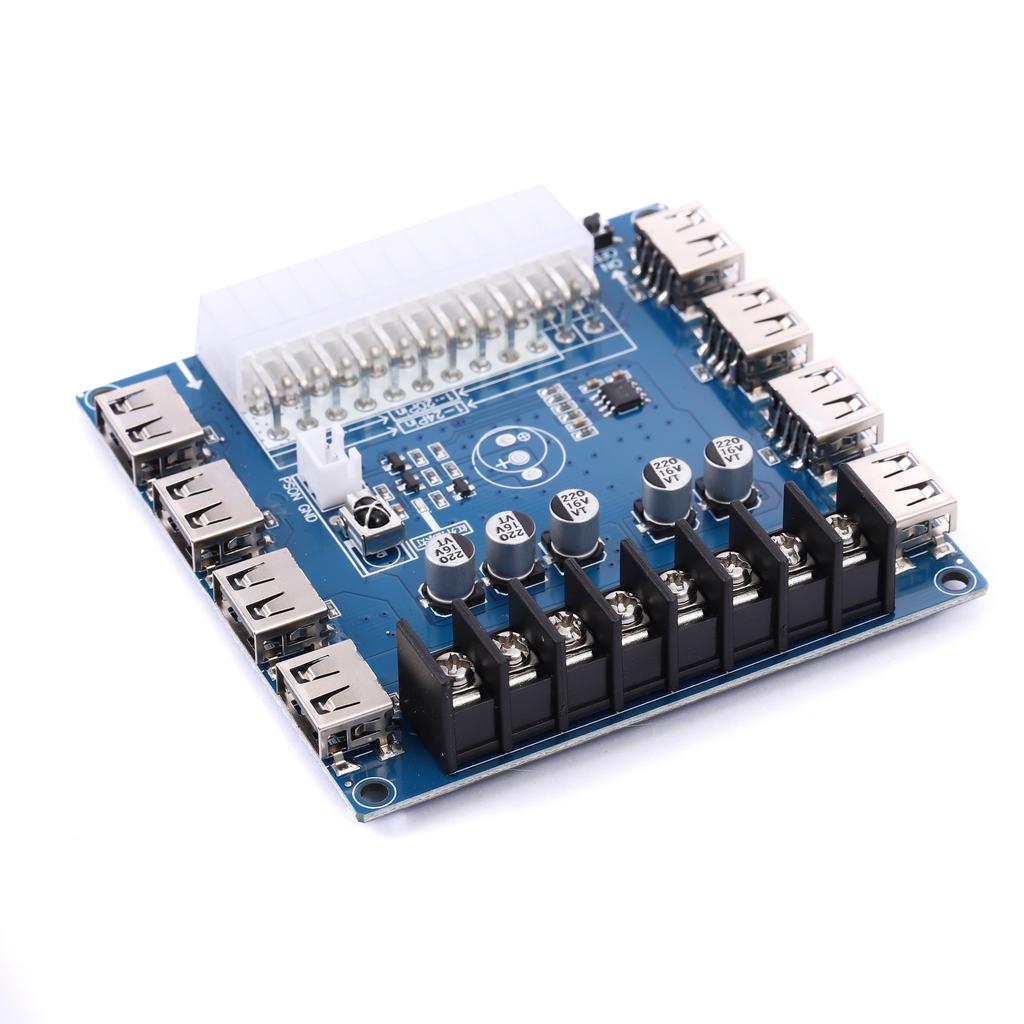

With infrared function, it can be used to test whether the remote control is good or not, such as TV, air conditioner, water heater, power amplifier, etc.The module board is compatible with all ATx computer power supplies of 20Pin and 24Pin.With the touch switch, the service life is 550000 times and the operation is more convenient.The XH2.54-2P terminal (suspended) is reserved, and two external lines can be connected to control the ATX power switch (convenient for the modification of the shell) by using the Io port (5V) or switch of the single chip computer.There are 6 USB ports on the board, each of which can output 5V, MAX=2.1A current, and can supply power for mobile phones, tablets, mobile power supplies, flashlights, aging electronic products, etc.The module adopts high-current terminal blocks (terminal withstand voltage is 300V/can pass 20A current) to solve the problem of insecure wiring caused by terminal posts and screw terminals.The module outputs+12V, - 12V,+5V, 5VSB and+3.3V power supplies after startup, which can make better use of ATX power supply and facilitate your use.Product parameters:Output: 5V/2ATerminal block: maximum 20A outputUSB interface: 6 groups5 kinds of power output:+12V, - 12V,+5V, 5VSB,+3.3VFive power output indicators:+12v normal output=display blue-12V normal output=blue+5V normal output=red5VSB normal output=red3.3V normal output=redCompatible: Compatible with all 20-pin and 24-pin computer power supplies
The line layout is compact and regular, with good electrical insulation and mechanical stability, and can maintain stable performance under different temperature and humidity environments to ensure accuracy and reliability.
In circuit design, carefully planned lines are like precision transportation networks, and lines of different widths and spacings undertake different currents and signals transmission tasks respectively. The key signal lines are impedance matching processing, which greatly reduces signal reflection and attenuation and ensures the stable transmission of high-frequency signals.
All kinds of electronic components are soldered on the circuit board, and the solder joints are full, round, and firm and reliable. Core components like chips are perfectly connected to the circuit board through fine packaging processes to achieve high-speed data processing and interaction.
This circuit board has a wide range of responses in many fields. Whether in the industrial control field that requires extremely high stability or consumer electronics field that pursues extreme performance, it can provide solid guarantees for the stable operation of the equipment with its excellent design and reliable performance, and help various electronic devices play a powerful role.
