Hign-concerned Chemical : None
Package : Standard
Model Number : PW28
Dissipation Power : Standard
Supply Voltage : Standard
Application : Computer
Type : Module
Operating Temperature : Standard
Origin : China
Condition : New
Product parameters:

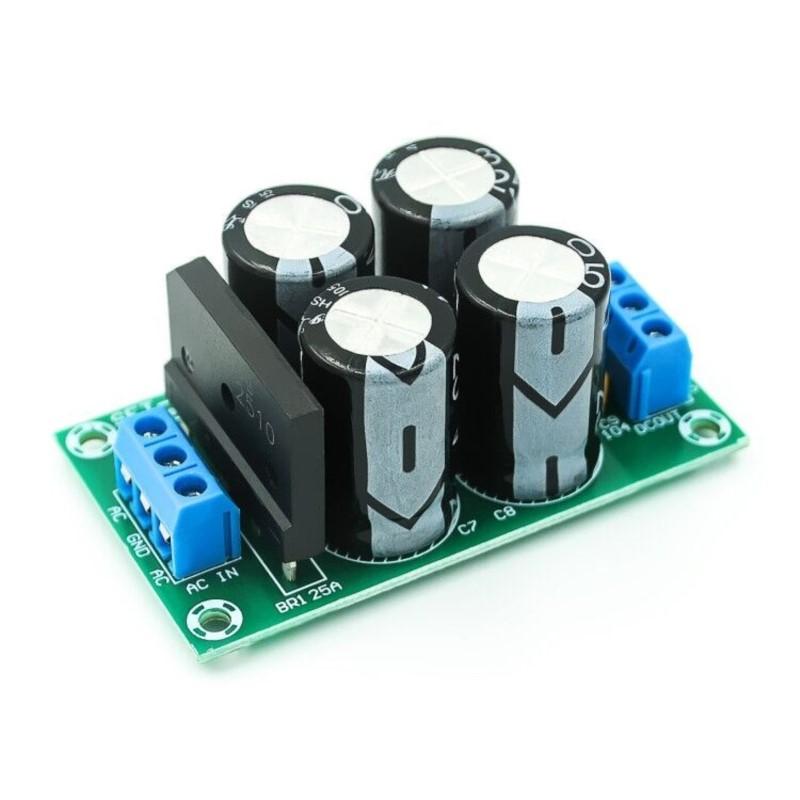

Product name: Double power rectifier filter plate
Product model: PW28

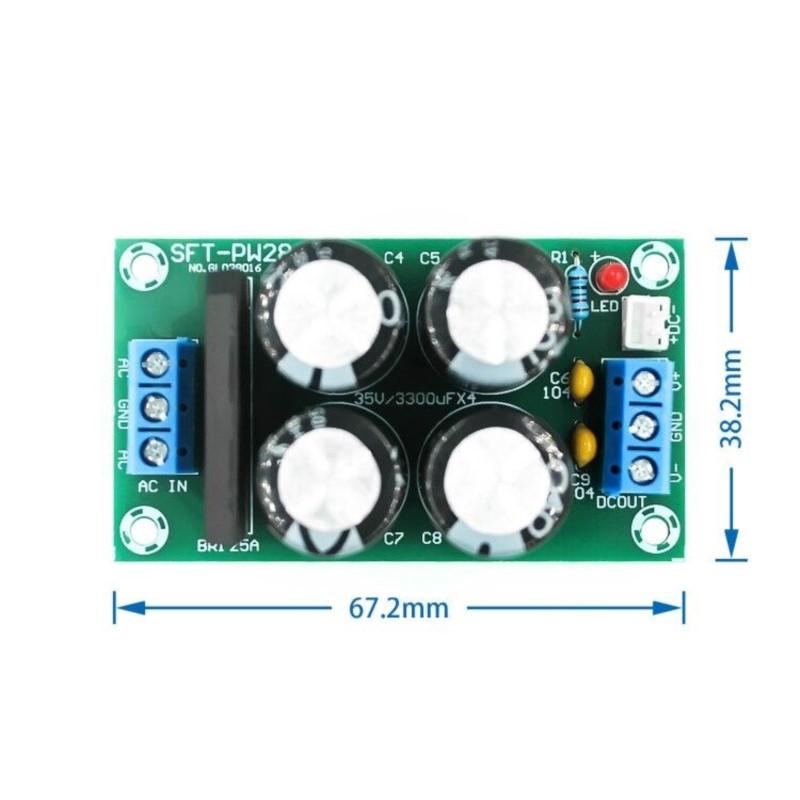

Size: 67×38×28mm/ pcb1.6mm thick
Input voltage: double AC 9 ~ 17V
Output voltage: DOUBLE DC DC ±12V ~ 24V
Flat bridge current: 25A
Hole distance: 60×31mm/ hole diameter: 3.2mm
The line layout is compact and regular, with good electrical insulation and mechanical stability, and can maintain stable performance under different temperature and humidity environments to ensure accuracy and reliability.
In circuit design, carefully planned lines are like precision transportation networks, and lines of different widths and spacings undertake different currents and signals transmission tasks respectively. The key signal lines are impedance matching processing, which greatly reduces signal reflection and attenuation and ensures the stable transmission of high-frequency signals.

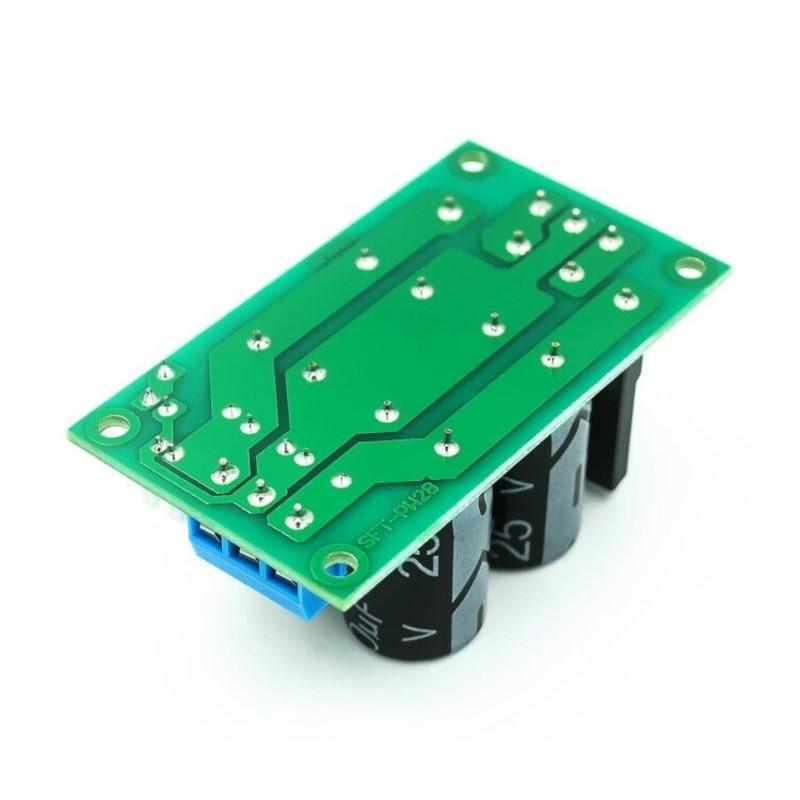

All kinds of electronic components are soldered on the circuit board, and the solder joints are full, round, and firm and reliable. Core components like chips are perfectly connected to the circuit board through fine packaging processes to achieve high-speed data processing and interaction.
This circuit board has a wide range of responses in many fields. Whether in the industrial control field that requires extremely high stability or consumer electronics field that pursues extreme performance, it can provide solid guarantees for the stable operation of the equipment with its excellent design and reliable performance, and help various electronic devices play a powerful role.
