【Voltage Compatibility】
When using electrical appliances, please note that they are designed for Japanese voltage specifications (90-110V), so if you use them with a different voltage, it may cause a malfunction.
【Plug Type】
Our products use Japanese plug types (A or B type).
Please use a conversion adapter if necessary.
【Important Note on Transformers and Adapters】
A transformer adjusts voltage to match your device’s requirements.
A conversion adapter only changes the plug shape and does not adjust voltage.
Using only a conversion adapter without a transformer may result in damage to the product.
【Liability】
We are not responsible for malfunctions or damages caused by improper use, such as operating the product without a transformer.

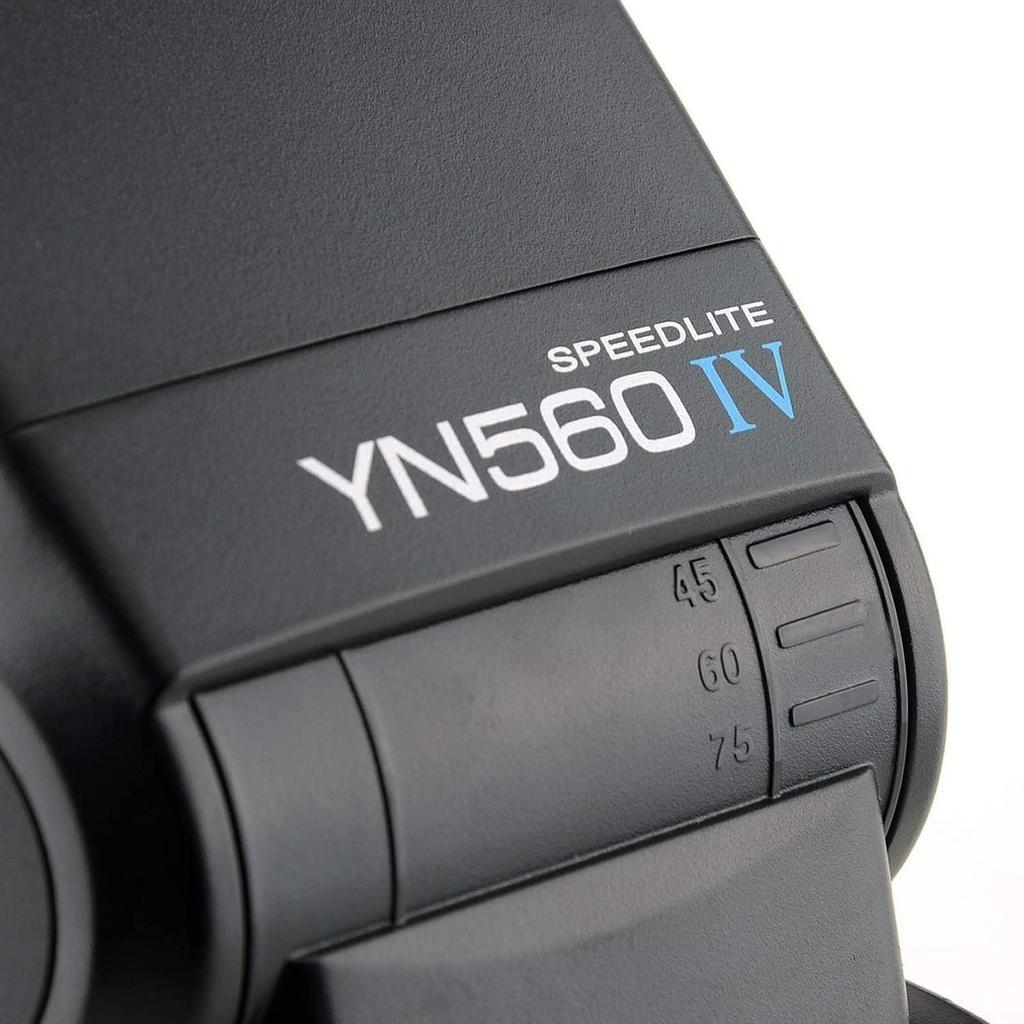

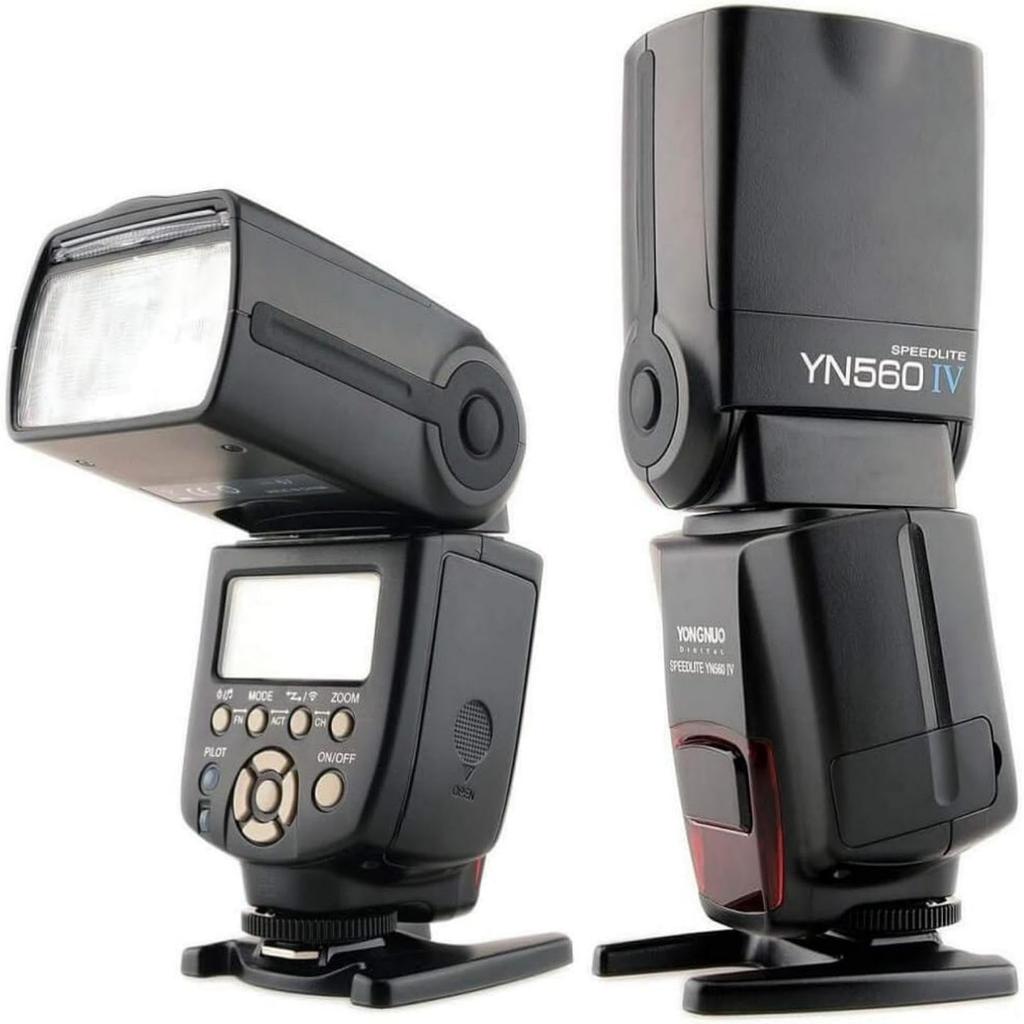

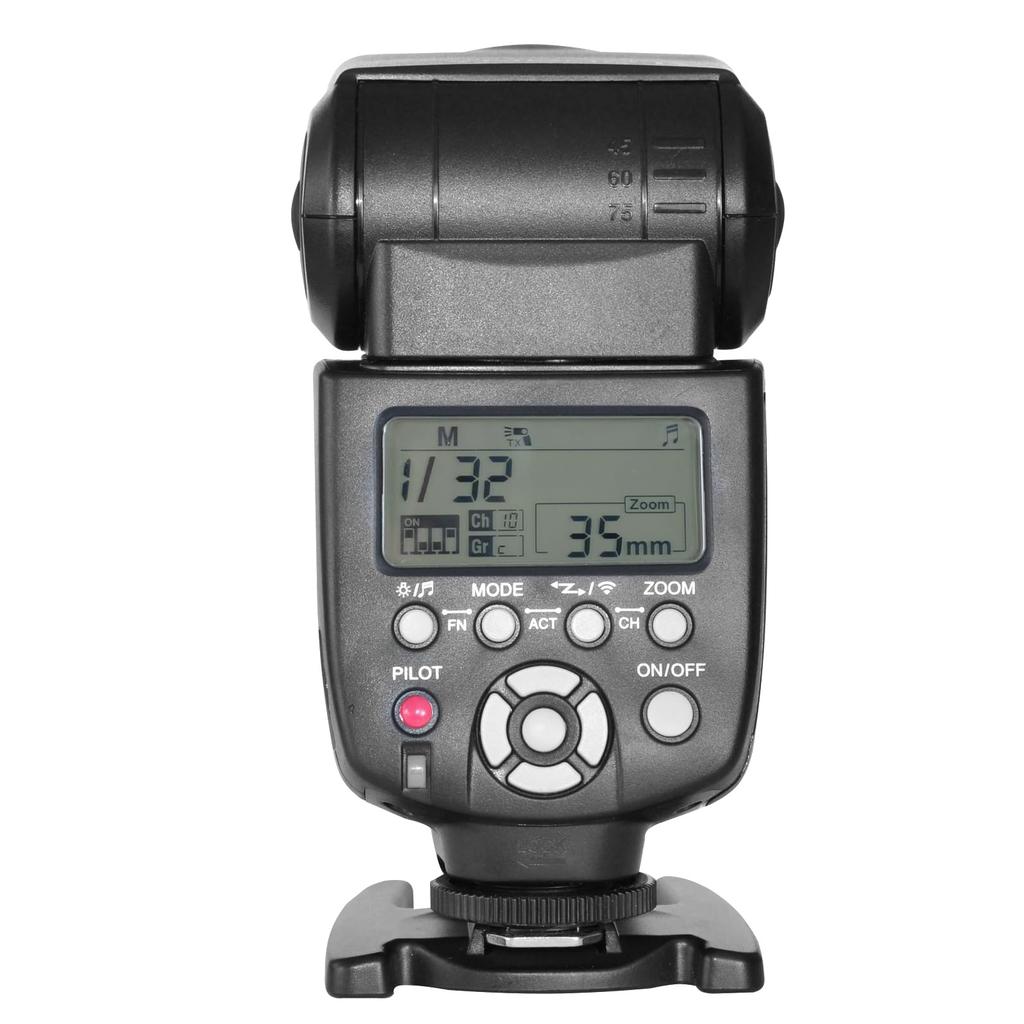

Model number: YONGNUO YN560 IV.
Guide number: 58 (ISO 100, 105mm)
Flash mode: M, Multi / Slave function: S1, S2, TX, RX
Flash output control: 8 levels of light intensity control (1/128 to 1/1), 29 levels of light intensity fine adjustment.
Compatible models: Standard hot shoe compatible cameras (Canon, Nikon, Olympus, etc.)
Model number: YONGNUO YN560 IV
Circuit design: Insulated gate bipolar transistor (IGBT)
Guide number: 58 (ISO 100, 105mm)
Flash mode: M, Multi / Slave function: S1, S2, TX, RX
Auto zoom range: 24, 28, 35, 50, 70, 80, 105mm
Vertical rotation angle: -7 to 90 degrees
Left and right rotation angle: 0 to 270 degrees

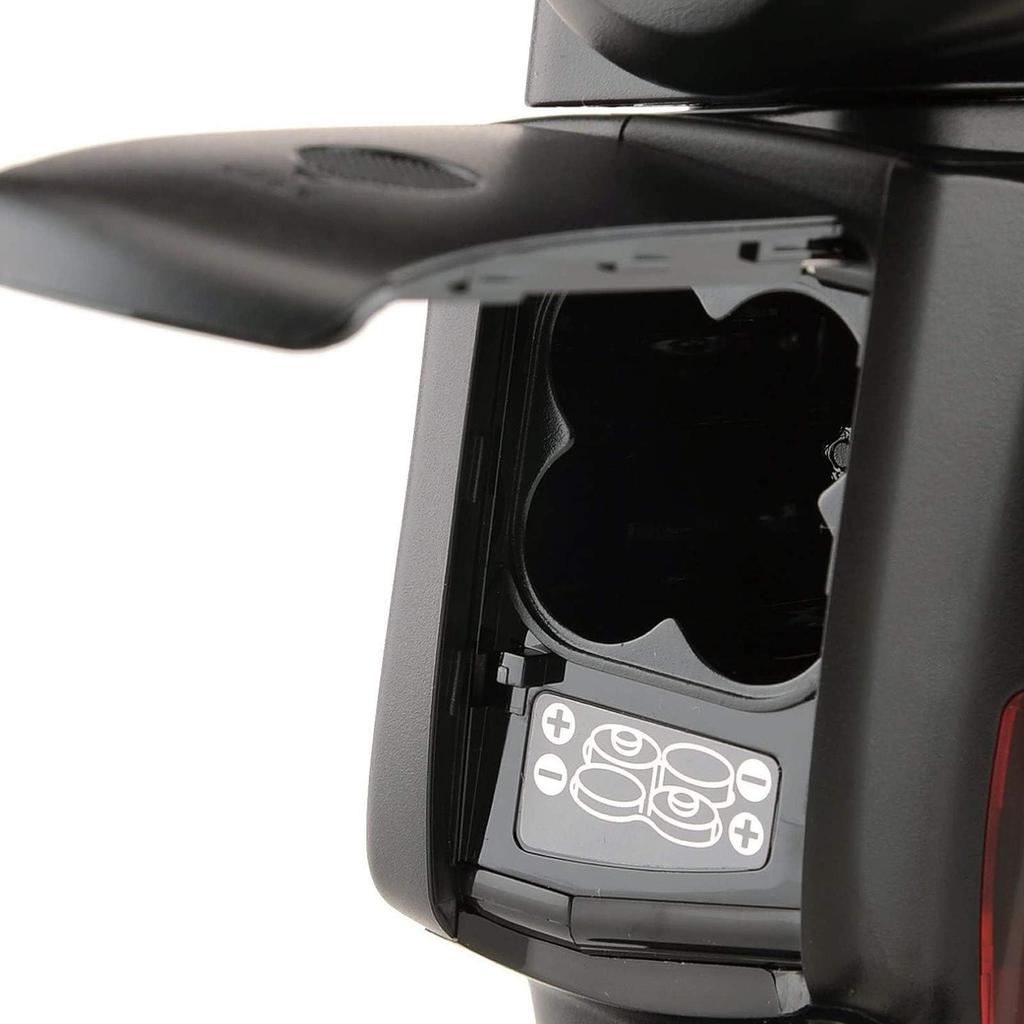

Power supply: 4 x AA batteries (alkaline manganese dry batteries/nickel-metal hydride rechargeable batteries can be used)
Number of flashes: 100 to 1500 times (when using AA alkaline manganese dry batteries)
Charge time: Approximately 3 seconds (when using AA alkaline manganese batteries)
Color temperature: 5600k
Flash duration: 1/200s to 1/20000s
Flash output control: 8-step light intensity control (1/128 to 1/1), 29-step fine adjustment
Wireless trigger distance: 2.4Ghz wireless up to 100m, indoor 20-25m, outdoor 10-15m
Other features: Zoom strobe head, sound indicator, auto save settings, PC port, power saving mode, thermal protection
Size: Approx. 60 x 190 x 78 mm
Weight: Approx. 350g (body only)
Package Contents: YN560 IV Speedlite Body x 1, Protective Bag x 1, Mini Stand x 1, Instruction Manual (Chinese, English) x 1

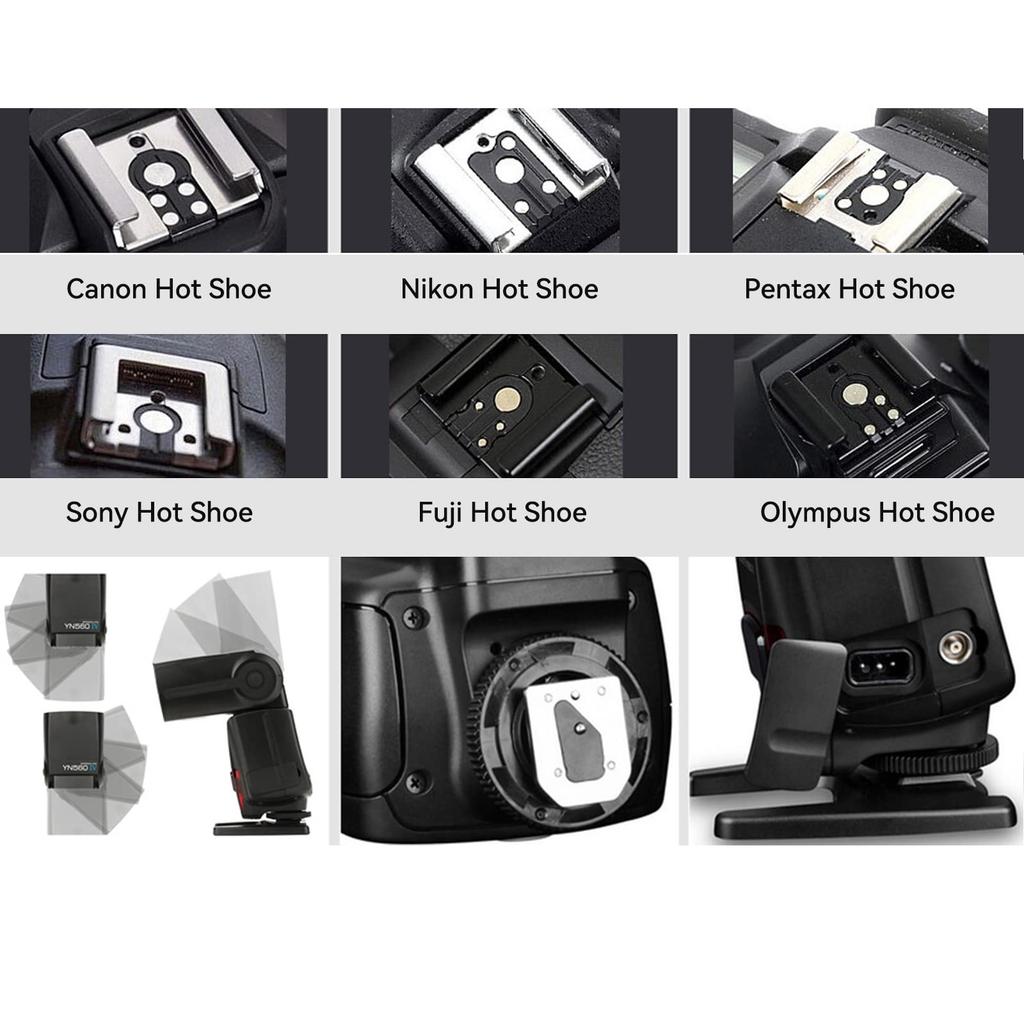

Compatible models: Standard hot shoe compatible cameras (Canon, Nikon, Olympus, Pentax, etc.)
*Note: An adapter is required for Sony cameras.
