Feature:
1. Efficient: The motor adopts 4 poles high torque rotor design, which has strong torque and stable output power. The ESC has built in high efficiency and high power 5.8V 3A SBEC to provide efficient operation.
2. Well Equipped: The radiator and cooling fan set can control the temperature, keep your motor running efficiently and stay cool. Comes with a programming card, rich programming options can easily change the internal timing, making the ESC suitable for various motors.
3. High Performance: The set features CNC machined 6061 T6 aluminum front and rear covers. High purity, high temperature resistant copper coils effectively provide high efficiency. The motor set has strong resistive current capability and good heat dissipation.
4. Safe: The motor set has lithium or nickel battery low voltage cut off protection, overheating protection, throttle signal loss protection, and has super stable and accurate throttle linearity, enhanced throttle response, excellent acceleration, strong braking.
5. Durable: The premium components make the components waterproof and dustproof, durable. And the high toughness stainless steel output shaft, high accuracy premium bearing make the motor super durable.
Specification:
Item Type: RC?brushless?motor?set
Shell Material: Aluminum alloy
Weight: Approx. 507g/17.9oz
Color: Red
Motor Diameter: 36mm/1.4In
Motor Height: 70mm/2.8in
Shaft Length: 17mm/0.7in
Shaft Diameter: 5mm/0.2in
KV Value: 2650KV
Speed: 50000
Maximum Power: 1600W
Maximum Current: 86A
Maximum Voltage: < 18.5V
Connector: 4mm/0.16in gold banana connector
ESC Parameters:
Continuous Current: 120A
Peak Current: 600A(10s)
BCE Output: 5.8V 3A
Power Plug: XT60 plug
Applicable Power Supply: 2-4S Lipo, 4-8S NiMh
Radiator Parameters:
Single Fan Size: 30x30x10mm/1.2x1.2x0.4in
Operating Voltage: 5-6V
Applicable: For Traxxas, for HSP, for HPI and other brands 1/8 remote control climbing cars

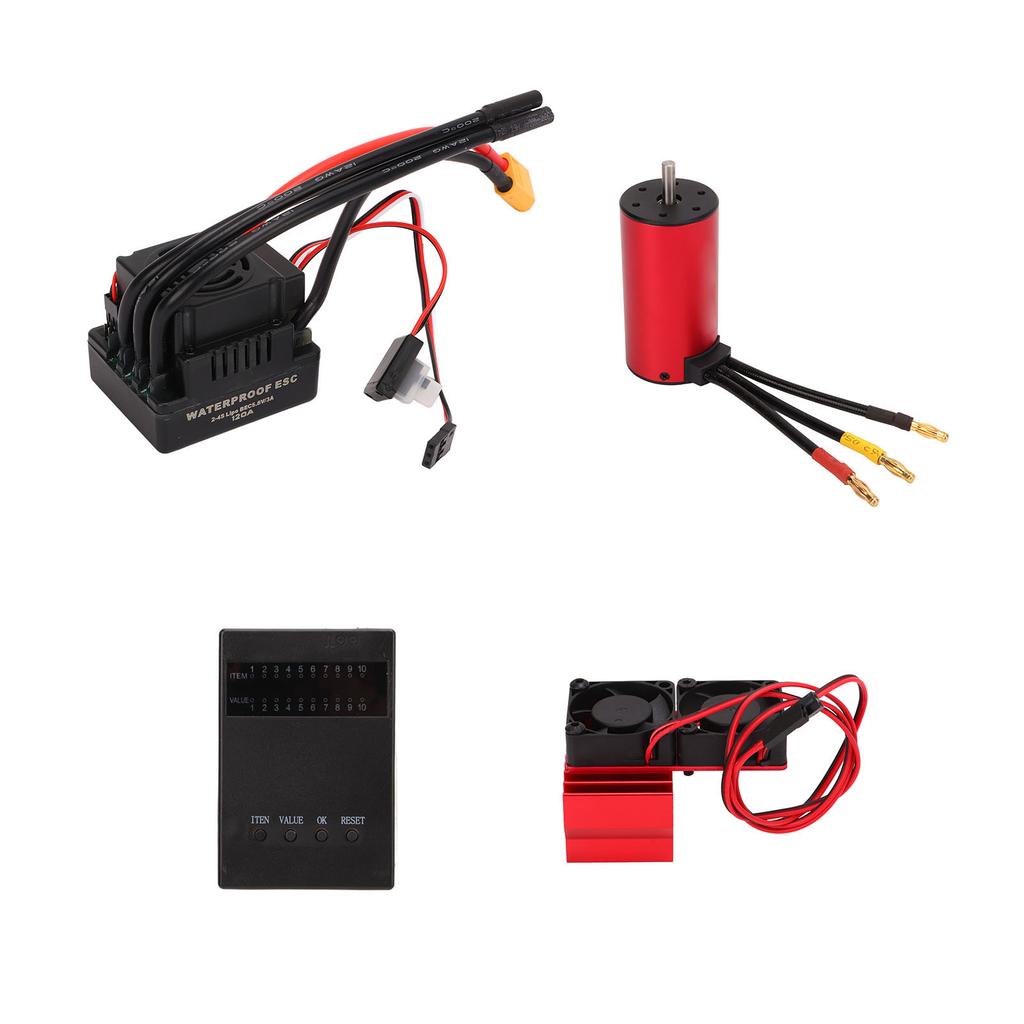

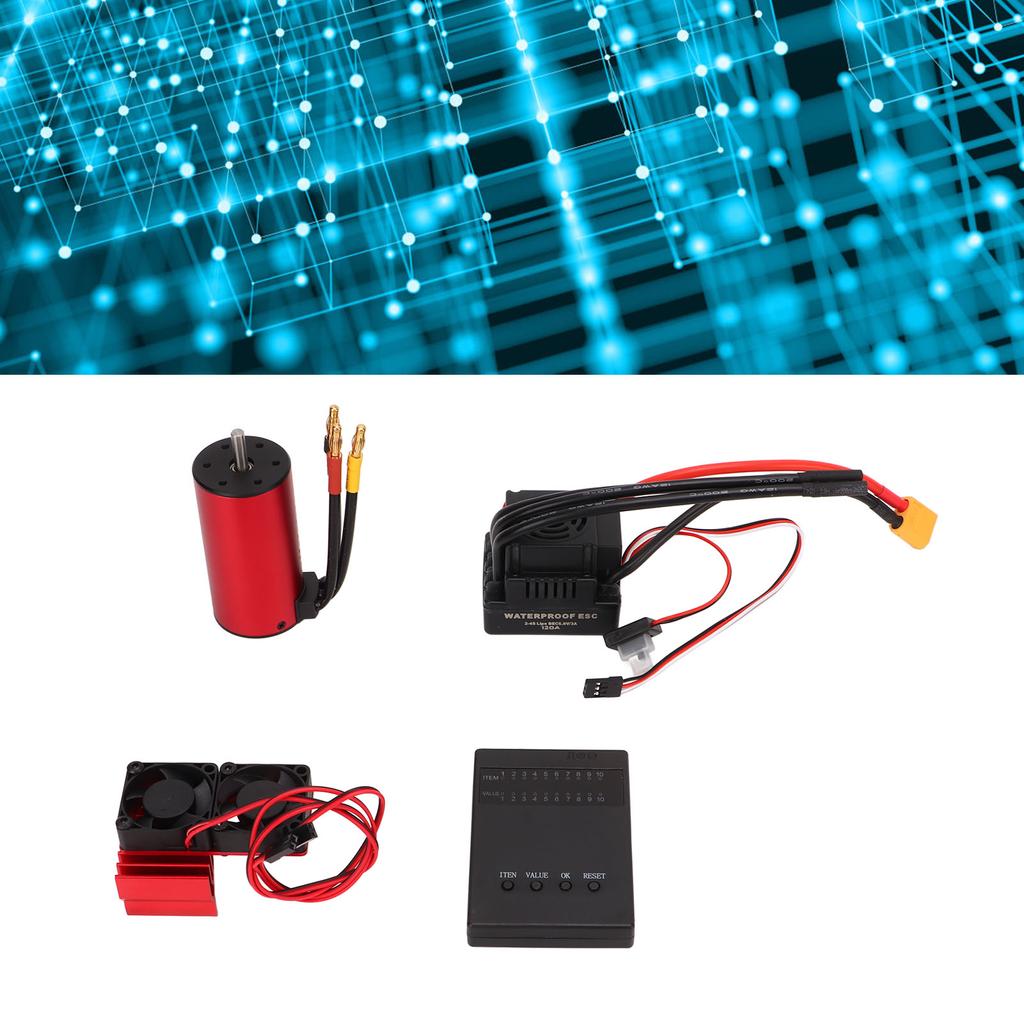

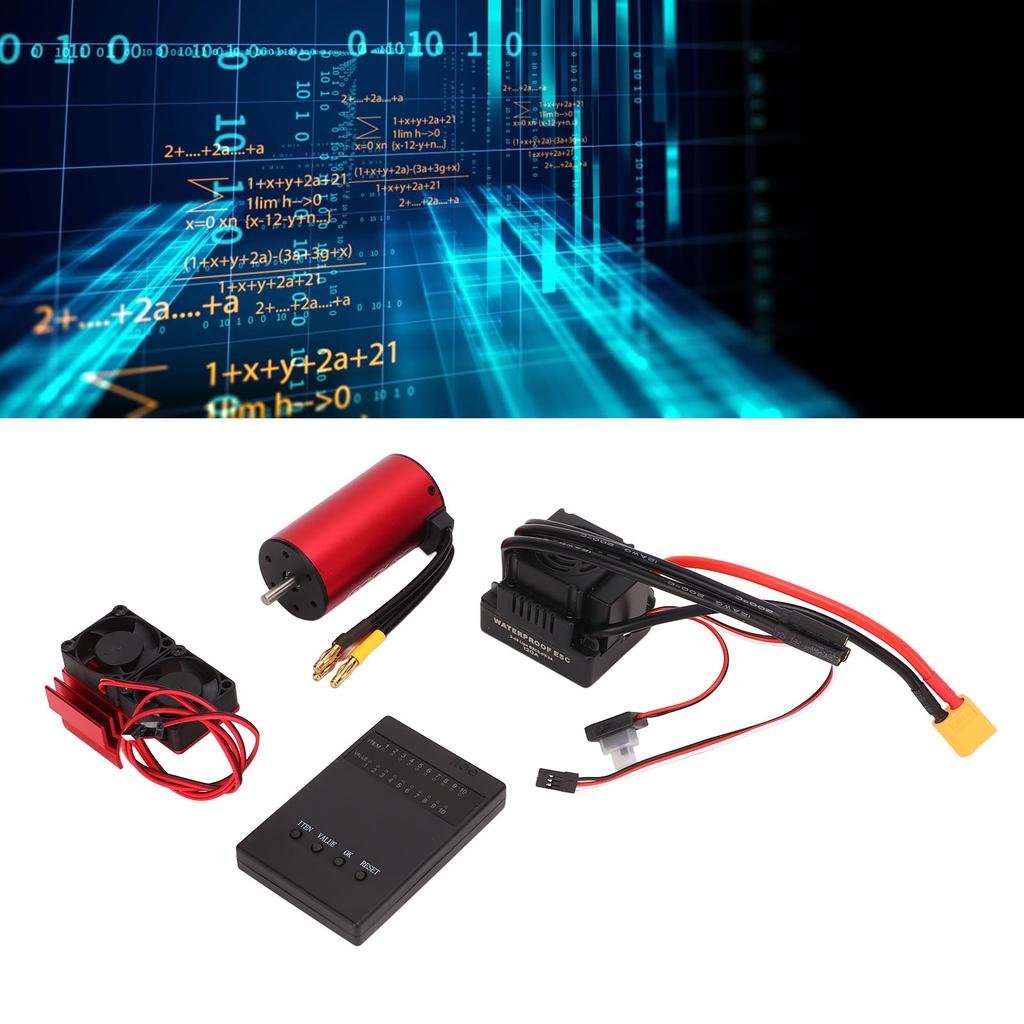

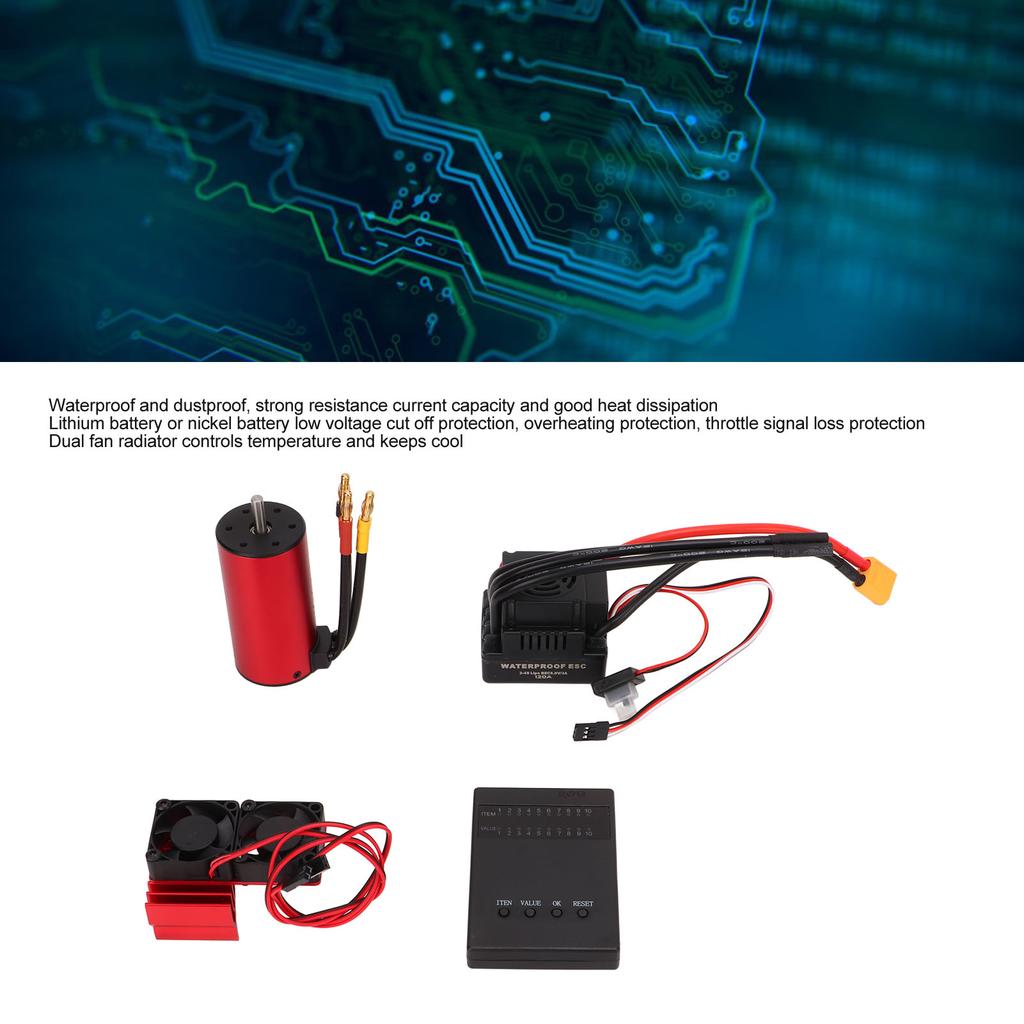

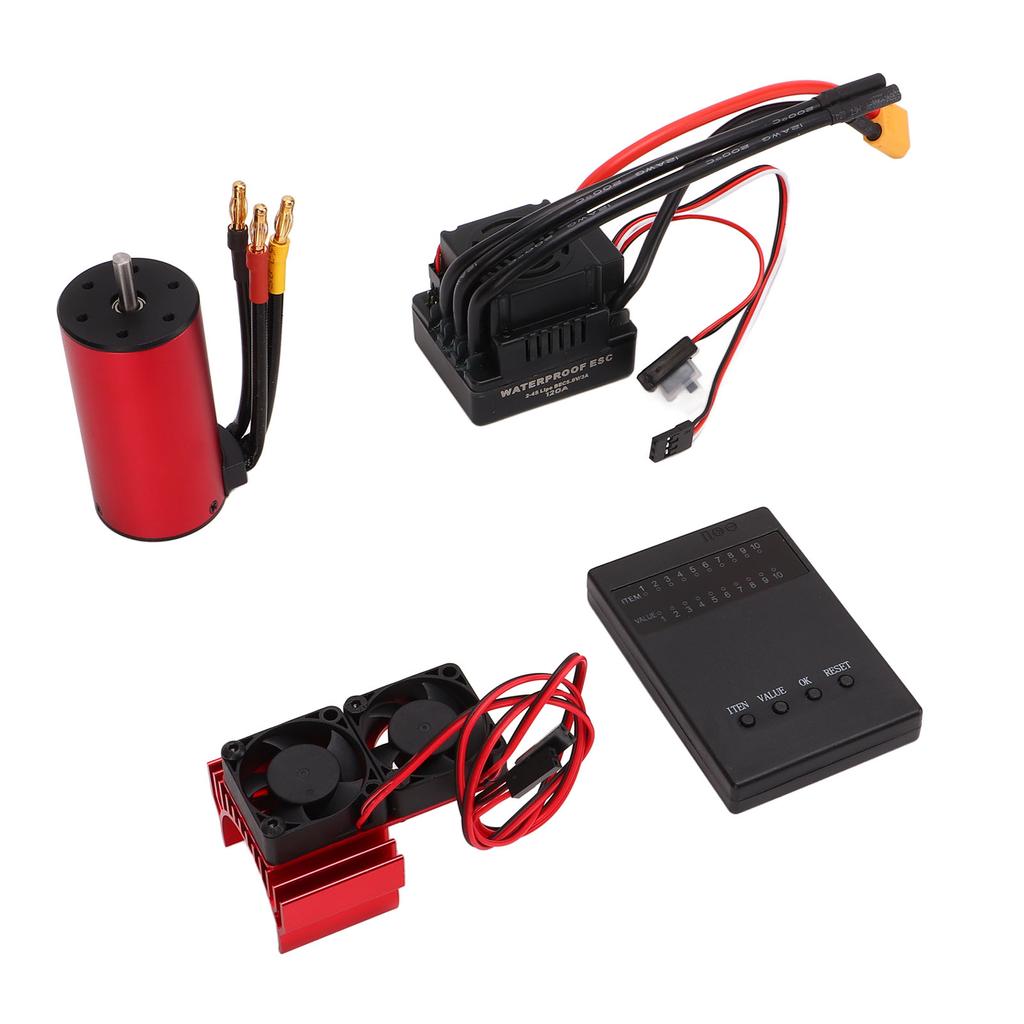

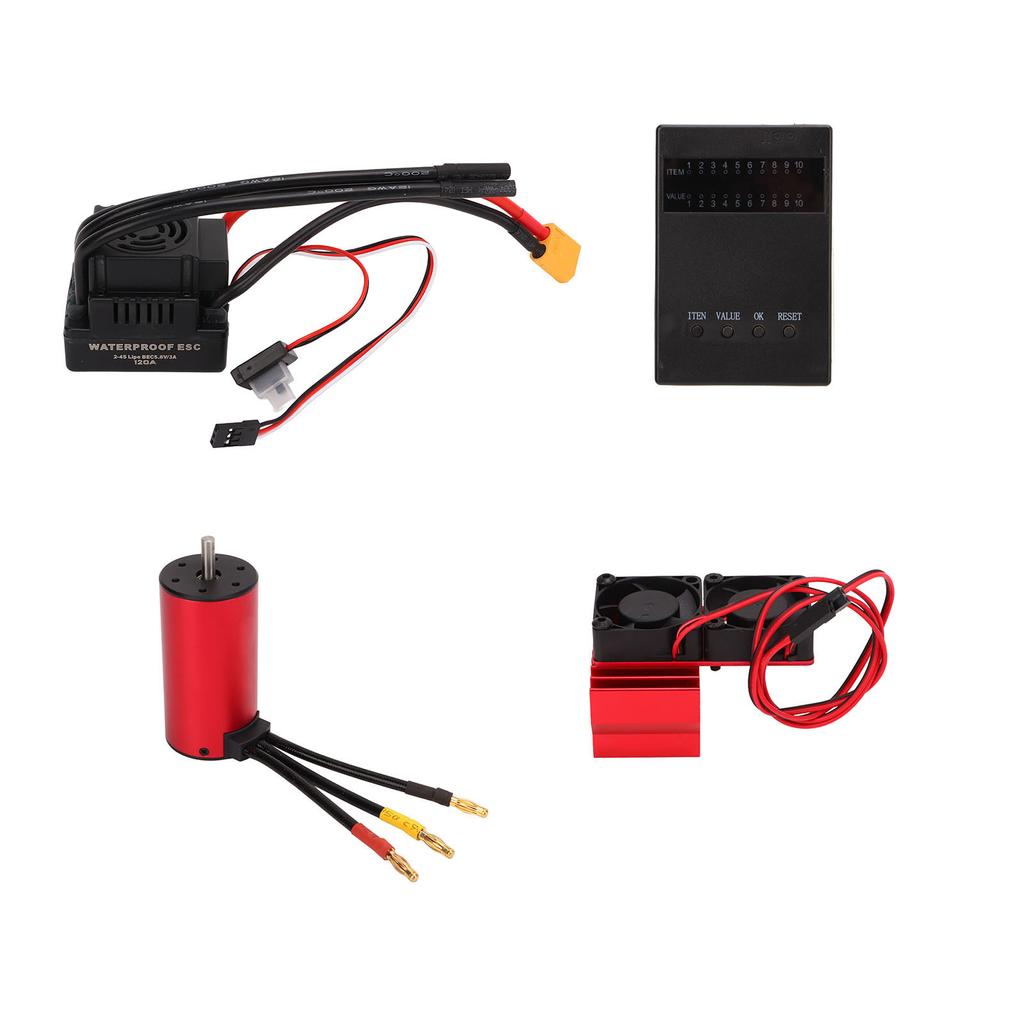

Package List:
1 x Motor
1 x ESC
1 x Radiator

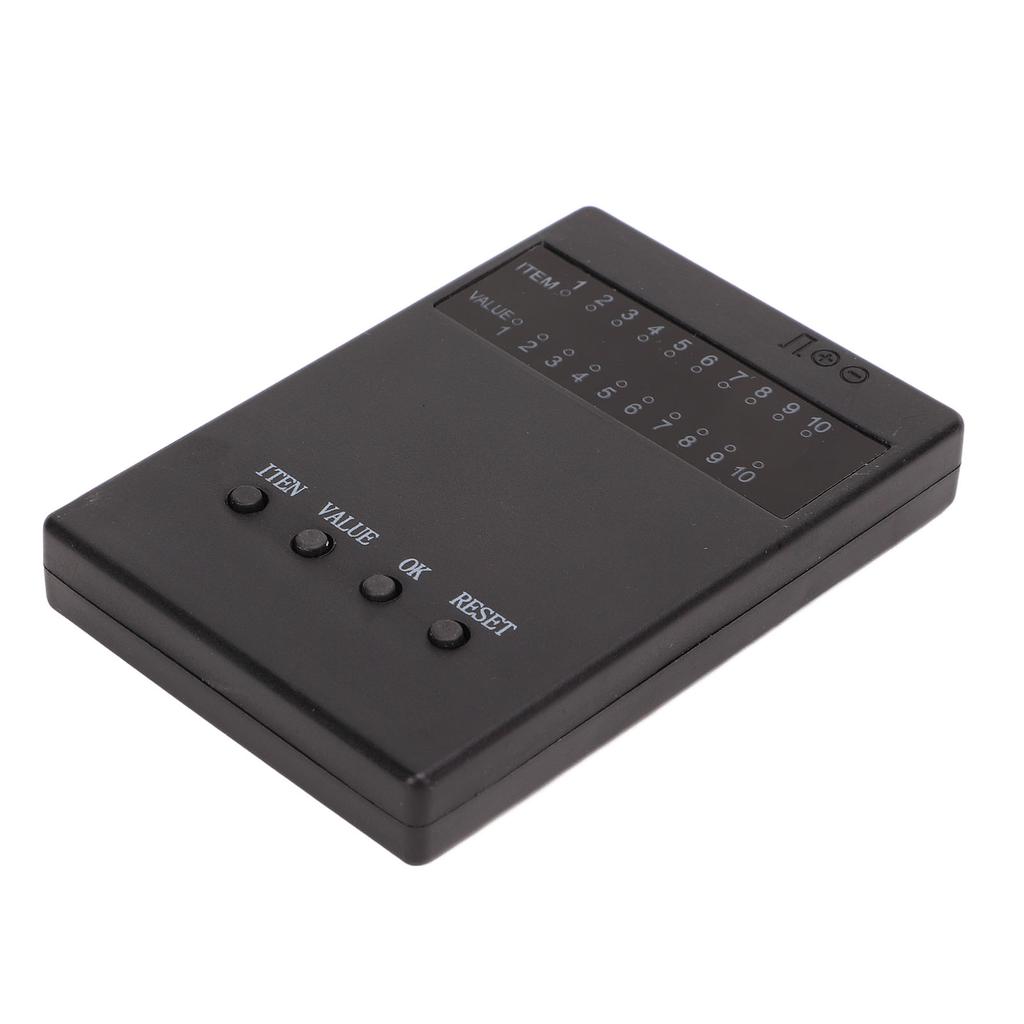

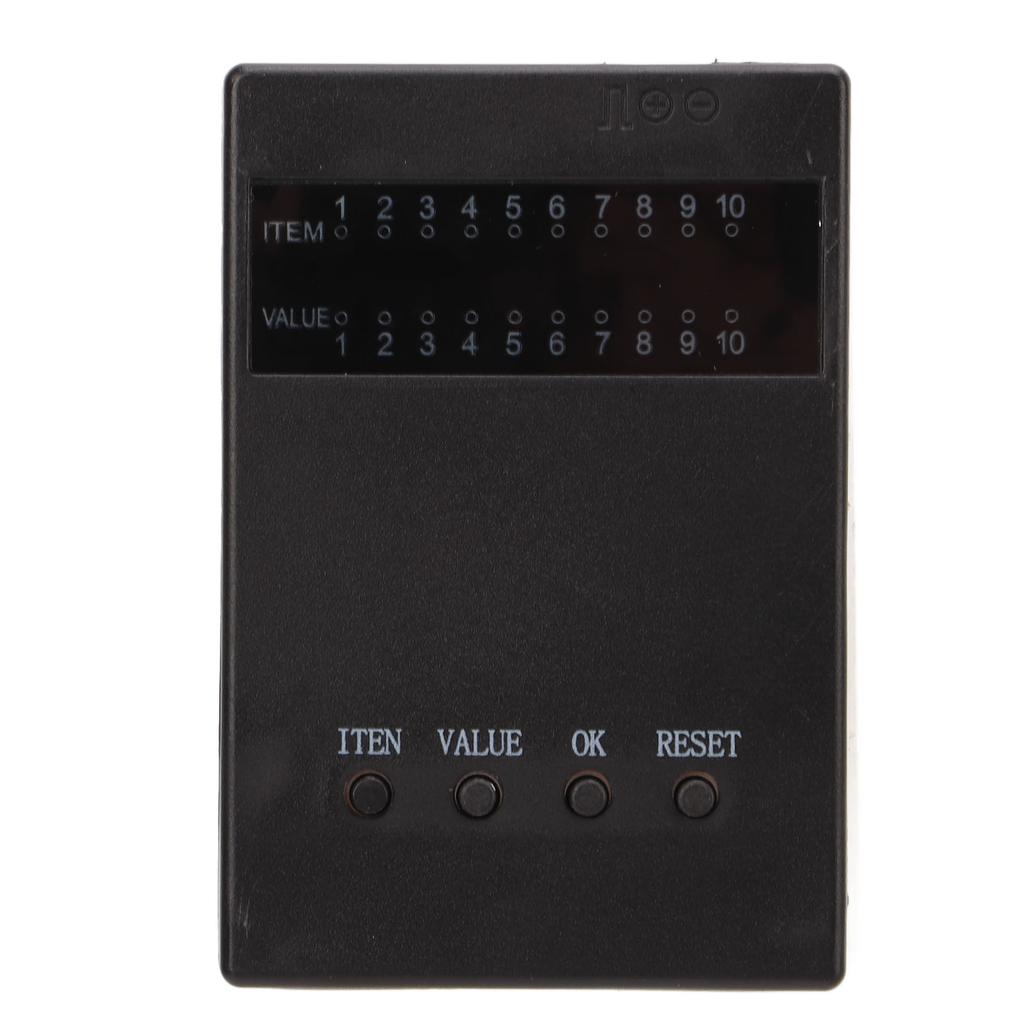

1 x Programming Card
1 x Instructions
