W500 Brushless Aerobatic Remote Control Aircraft Multifunctional RC Aircraft Toys









Beskrivning
Feature: 1. It can take off and land vertically, land vertically, and change the air mode. It also has a beginner mode and aerobatics mode. It effectively solves the problems of small flying sites that cannot taxi to take off, and beginners who have not mastered the essentials of aircraft takeoff and cannot take off smoothly. 2. High?capacity and large?rate 11.1V 1000mAh 20c lithium battery, with a flight time of more than 13 minutes. Reserve the front camera lens warehouse, which can load 5G 720P WIFI image transmission. (The camera is an optional accessory) 3. Using impact?resistant engineering EPO engineering materials, built?in carbon fiber rod reinforcement, very impact. High?precision 4.3g digital steering gear, which controls the aircraft rudder surface. 4. 6?axis gyroscope adds air pressure to set the height, 3D/6G mode conversion, suitable for flying in different scenarios, and more suitable for beginners to advance to practice flying. 5. Adopts 3 1370 brushless motors, high?efficiency blades, full power, high?precision and large?torque 5g digital steering gear 2PCS, and pulls the front motor. 6. Multiple flight modes, multi?rotor flight mode (four?axis); vertical hoist mode; 6G level flight mode; outdoor stunt mode.
Specification: Item Type: Vertical Take-Off and Landing Aircraft Product Model: W500 Product Material: EPO Product Size: Wingspan: Approx. 450mm / 17.7in Length: Approx. 445mm / 17.5in Height: Approx. 107mm / 4.2in Remote Control Distance: More Than 300m / 984.3ft Weight: Approx. 1451g / 51.2oz Remote Control Mode: 2.4g Charging Time: USB 150 Minutes Flight Time: Vertical Flight 11-12 Minutes; Horizontal Flight 15-16 Minutes Brushless Main Motor: 1307 2300KV x 3 Body Battery: 11.1V 1000mAh 20C Lithium Battery (Supporting) Remote Control Battery: 4 x AA Batteries (Purchased Separately) Servo: 4.3g Digital Steering Gear Applicable age: 14+ First flight: 1. Place the successful flight on the ground horizontally, make sure that the tail of the aircraft faces you and the nose is forward. 2. At the same time, shake the rocker in the lower left corner and the lower right corner respectively, and the motor will start. Once again, as shown in the figure, the motor will be turned off by pressing the joystick. Aircraft level calibration: 1. When the aircraft has obvious yaw, the flight attitude can be corrected through horizontal calibration. 2. Shake left and right at the same time to the lower left corner position for 1-2 seconds. At this time, the aircraft status indicator flashes quickly and the aircraft enters horizontal calibration. When the aircraft status indicator is always on, the horizontal calibration is successful. 3. For calibration, it is necessary to find a relatively level site, as far as possible to ensure that the aircraft is level with the ground. 4. After the aircraft enters the level calibration procedure, it is necessary to keep the aircraft stationary until the calibration is successful.
How to Use: The?remote?control?and?the?aircraft?frequency:1.?Make?sure?that?the?throttle?stick?is?in?the?lowest?position?and?the?gear?switch?is?in?the?uppermost?position.?Turn?on?the?remote?control,?and?the?remote?control?will?make?a?long?beep?to?prompt?you?to?turn?on.?At?this?time,?the?power?indicator?of?the?remote?control?flashes,?indicating?that?it?is?not?paired?with?the?receiver.?.2.?Power?on?the?aircraft,?the?receiver?indicator?flashes,?move?the?throttle?stick?to?the?top,?and?then?pull?it?to?the?bottom,?the?remote?controller?will?make?a?beep,?the?power?indicator?will?be?on,?and?the?receiver?will?be?on?again.?Linking?is?complete.??3.?If?the?linking?is?unsuccessful,?you?need?to?disconnect?the?power?of?the?aircraft?and?turn?off?the?remote?controller,?and?repeat?the?above?linking?steps?again.??

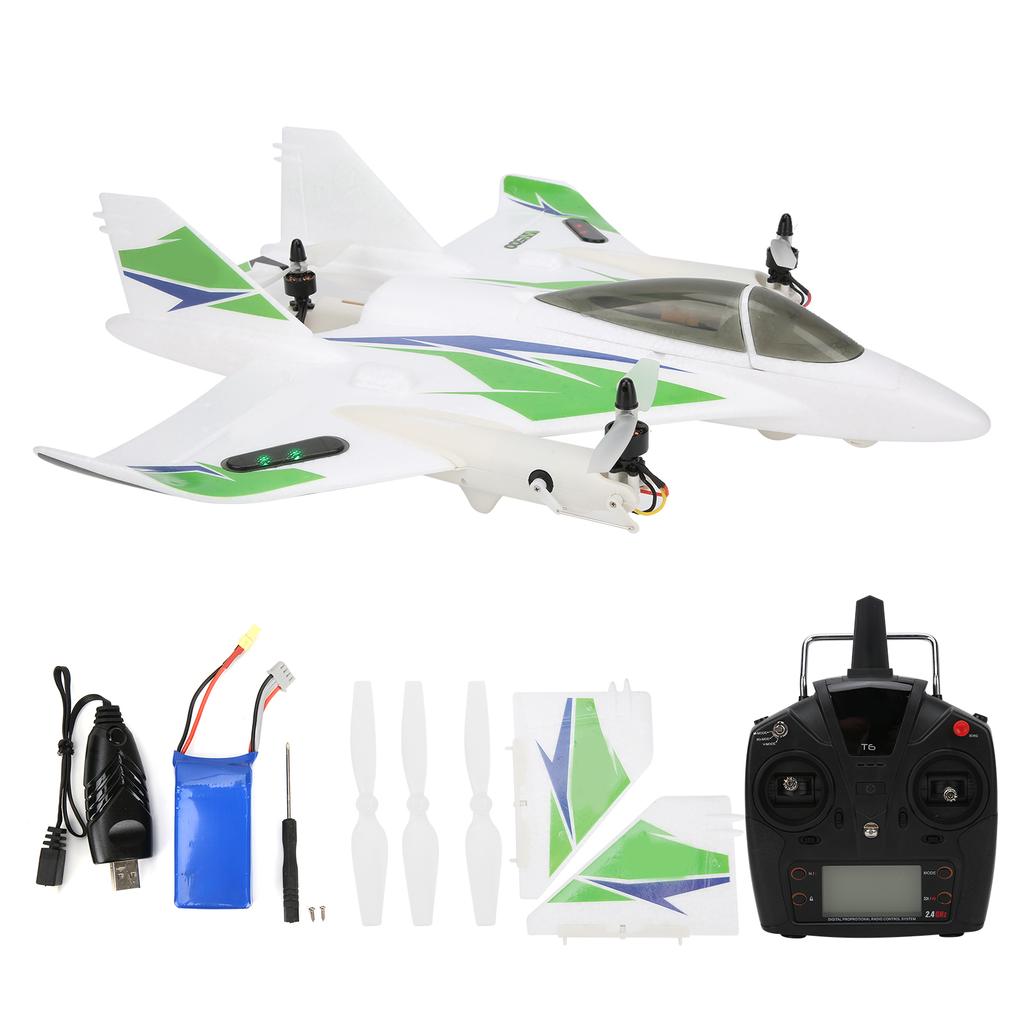

Package List: 1 x Aircraft 1 x Remote Controller 1 x USB Charger 3 x Propeller 1 x Lithium Battery 2 x Left and Right Vertical Tail 1 x Screwdriver 2 x Screw 1 x Manual
Note: 1. Due to manual measurement, please allow an error of 1?3mm / 0.04?0.12in. Thank you! 2. Due to different shooting lights and differences between monitors, the picture may not reflect the actual color of the object. 1. In order to ensure safety, please charge under the supervision of someone 2. Children cannot charge alone, they must be charged with the assistance of an adult 3. Please use the original standard charger of this product for charging. Using chargers of unknown origin may cause combustion and explosion accidents. 4. It is recommended that users bring their own 2A current adapters, which will shorten the charging time. 5. After the aircraft has landed on the ground, keep the throttle stick in the lowest position for 2?3 seconds, and release the stick after the aircraft motor completely stops rotating. 6. Please keep a safe distance from the high?speed rotating propeller to avoid the danger of twisting and cutting. The battery is a heating device, please do not touch it to avoid the danger of burns. Laser radiation, do not look directly into the beam.
