Requency Test Board Demo Kit RF Demo Kit NanoVNA RF Test Module Board Filter Attenuator Module for Learning Vector Network Analyzer

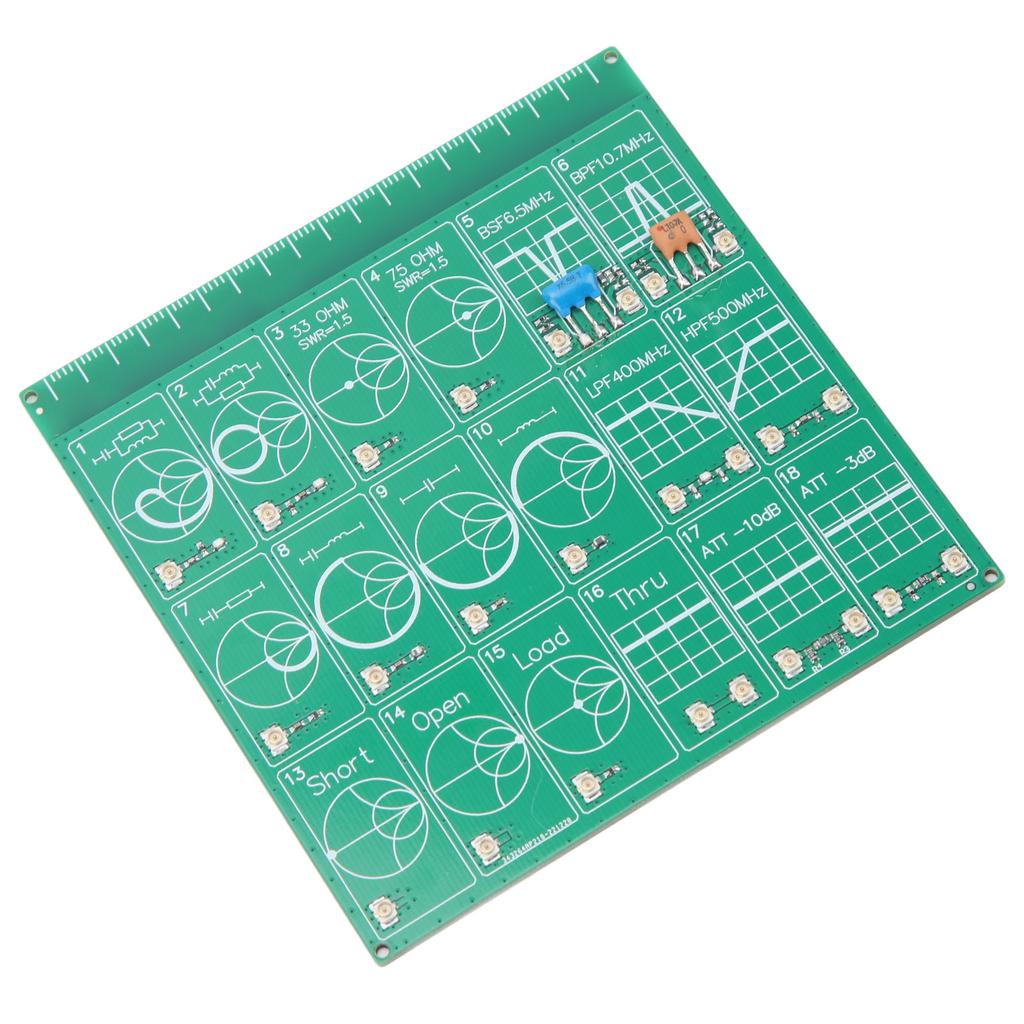

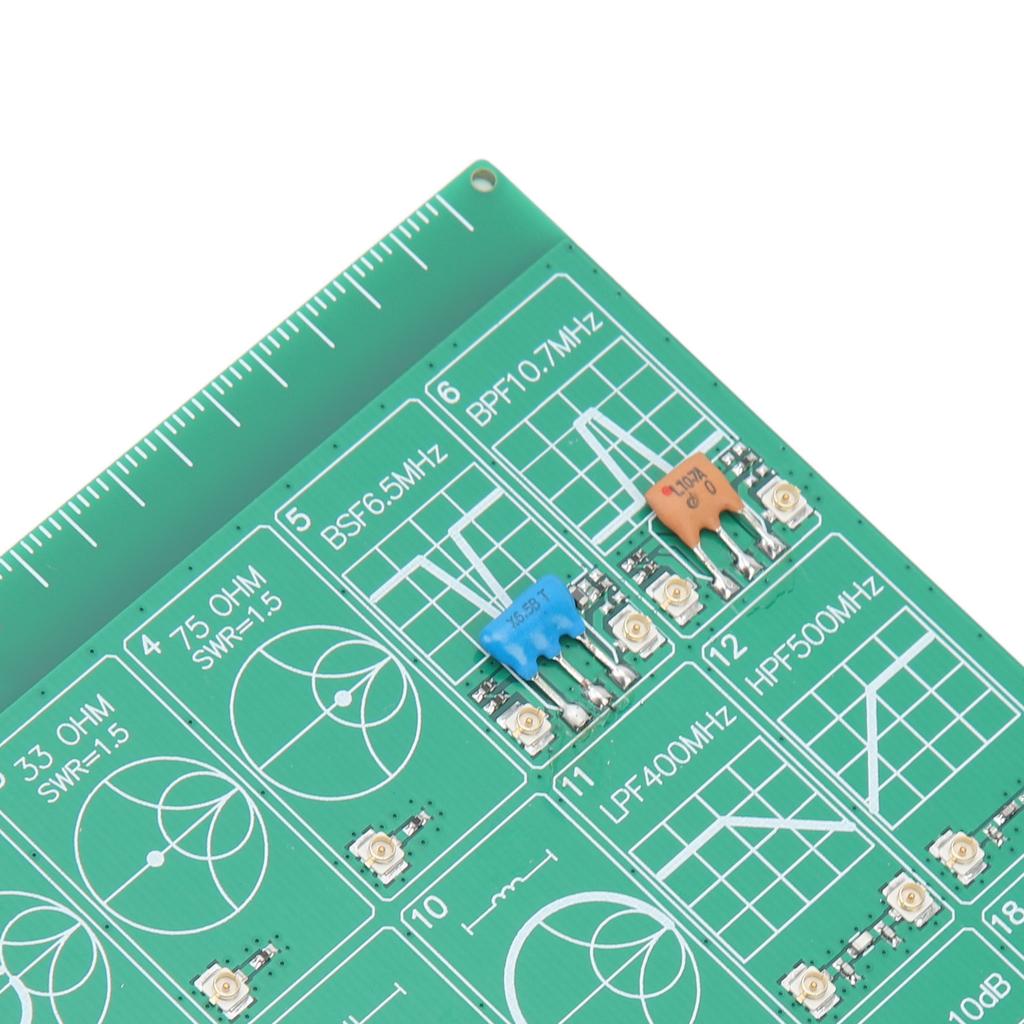

Feature: 1. Main Application: Requency test board demo kit is used for learning vector network analyzer VNA, calibration and learning. 2. Circuit Resistor And Notch Filter: RLC series parallel circuit 1. RLC series parallel circuit 2. 33 ohm resistor, SWR standing wave=1.5. 75 ohm resistor, SWR standing wave=1.5. BSF ceramic notch filter, center frequency 6.5MHz. BPF ceramic filter, center frequency 10.7MHz. 3. Circuit Capacitance Inductance Filter: RC series circuit. LC series circuit. Capacitance. Inductance. LPF self made low pass filter with a 3dB bandwidth of 400MHz. HPF self made high pass filter with a 3dB bandwidth of 500MHz 4. Calibration Circuit And Attenuation Circuit: Short circuit calibration circuit. Open circuit calibration circuit. 50 ohm load calibration circuit. Straight through. 10dB attenuation circuit. 3dB attenuation circuit. 5. Package List: Package Included 1x RF Tester Board, 2 x 20cm Adapter Cable, providing you great using experience.

Specification: Item Type:?RF?Test?Board Product Material: PCB Weight: Approx. 49g / 1.7oz Adapter Cable?Length: Approx. 20cm / 7.9in

How to Use: Two?steps?are?required?before?testing:1.?Connect?the?two?attached?20CM?SMA?to?IPEX?adapter?cables?to?the?NanoVNA?F?machine.2.?Recalibrate?the?machine?using?the?13?short?circuit,?14?open?circuit,?15?load,?and?16?through?circuits?on?the?test?board,?and?store?the?parameters?in?0.

Package List: 1x RF Tester Board 2 x Adapter Cable
