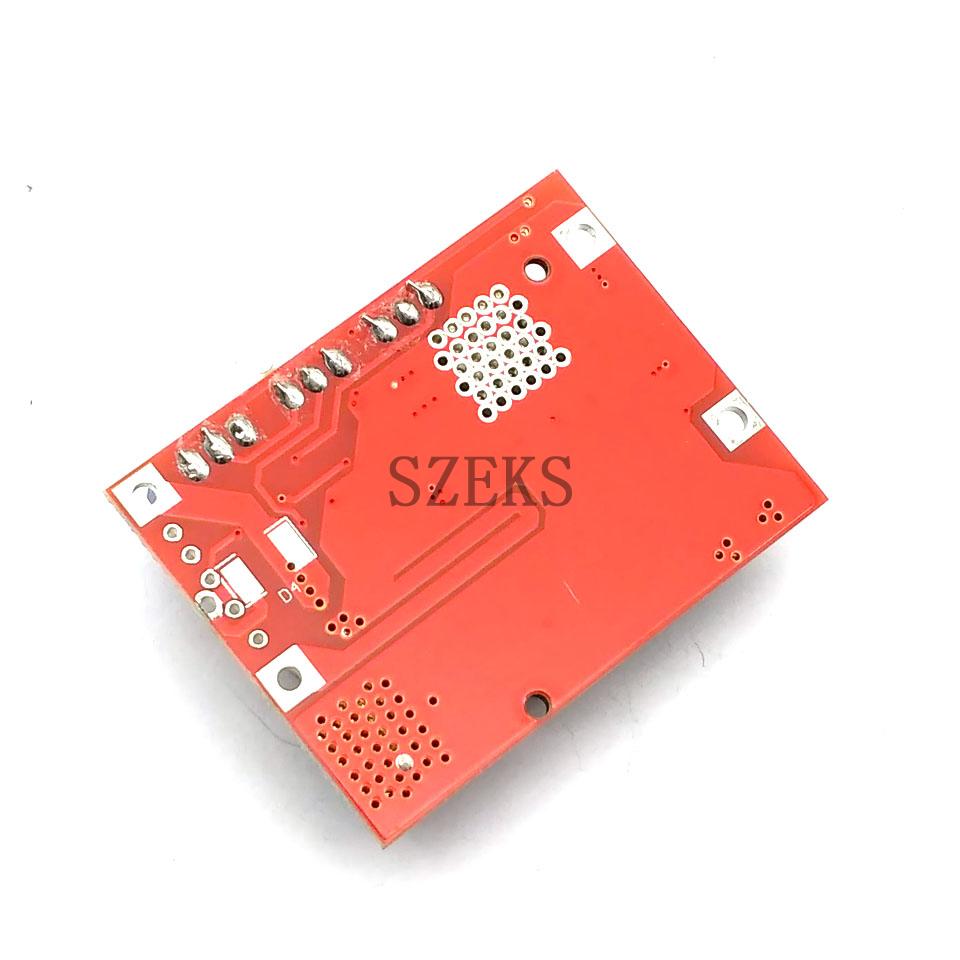

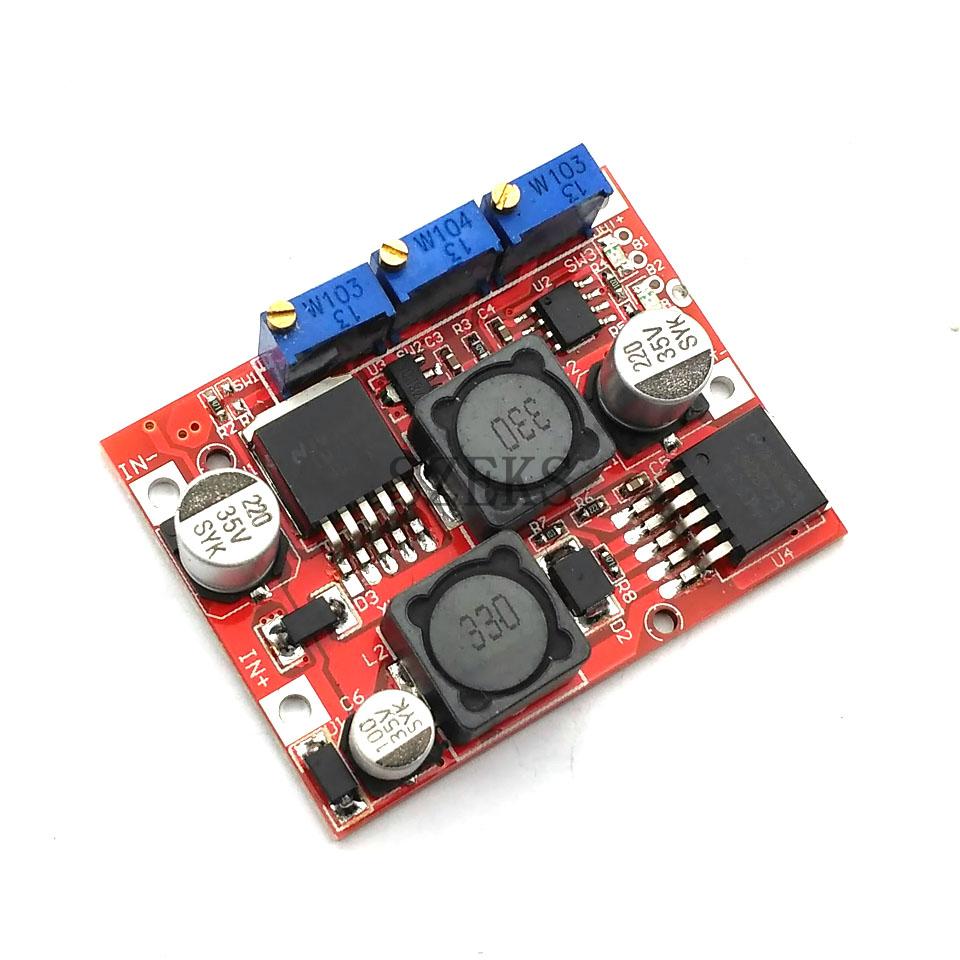

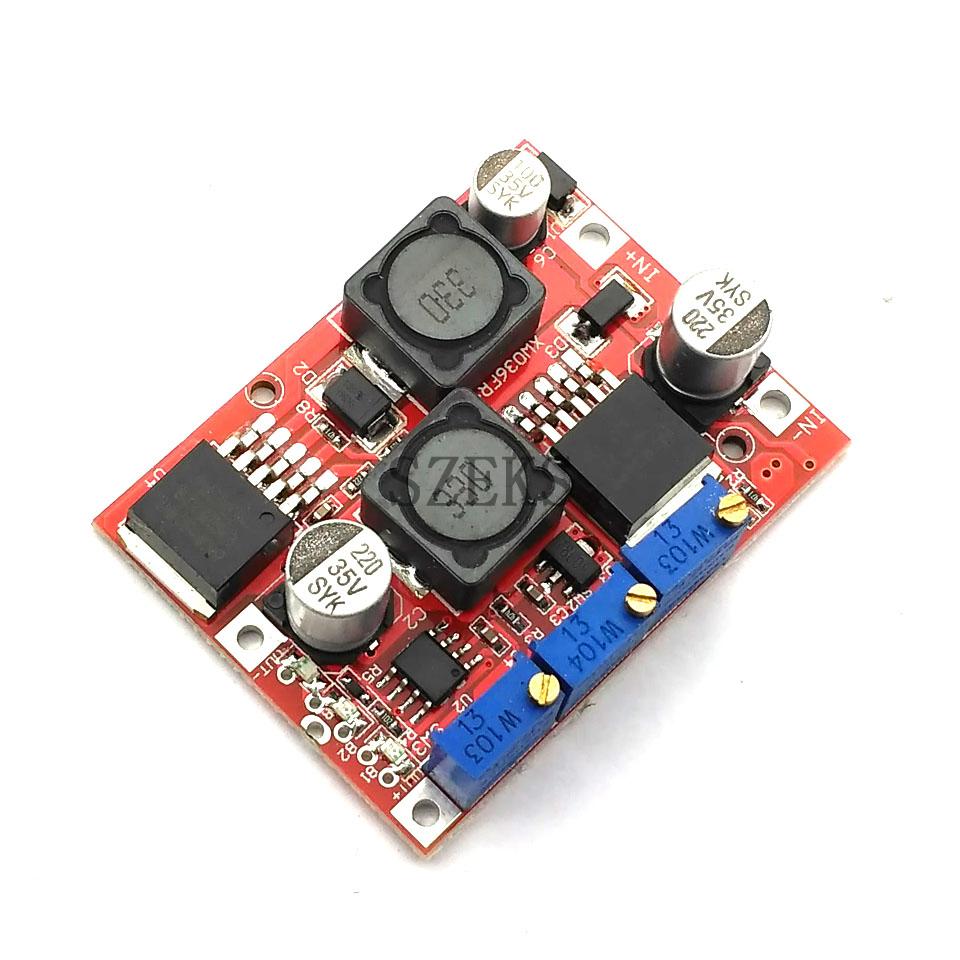

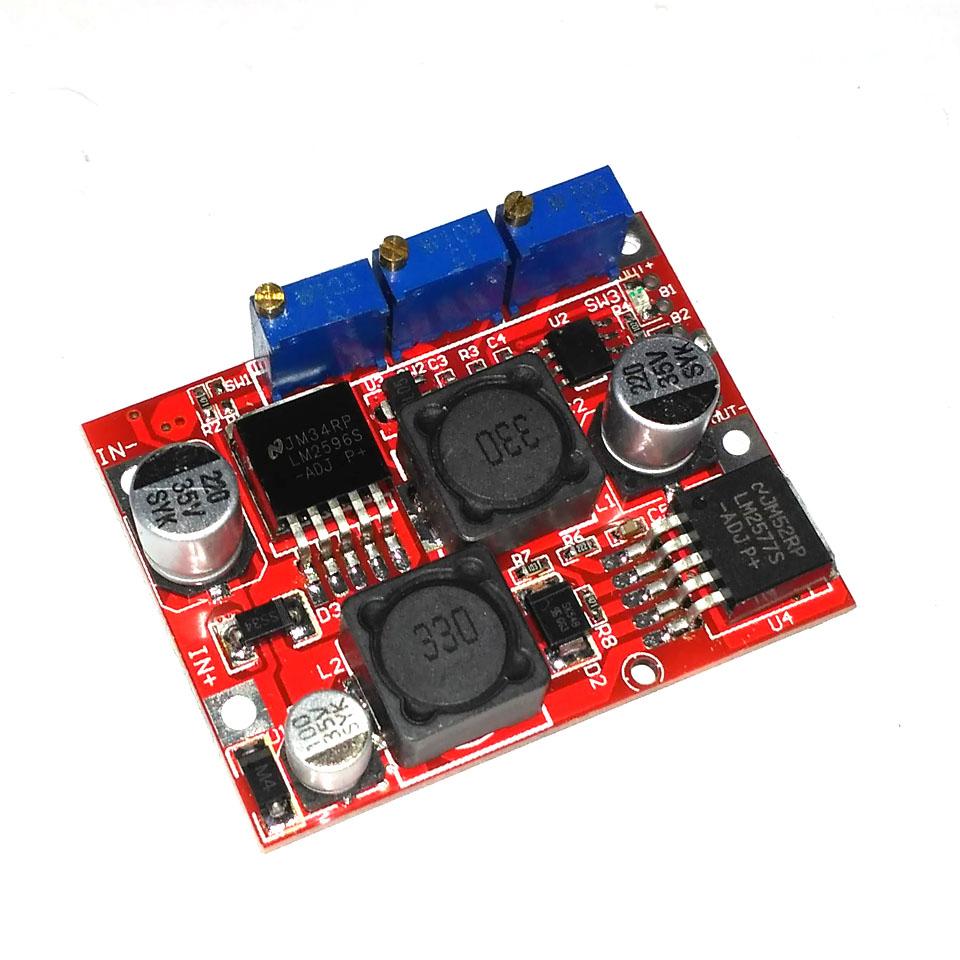

LM2577S LM2596S DC Adjustable Step Up Down Boost Buck CC CV Voltage Converter Module LED Driver Power Supply Voltage Reg

High-power LED constant current drive Lithium battery charger (including ferroelectric) 4V, 6V, 12V, 14V, 24V battery charger Nickel cadmium, nickel metal hydride battery pack charger Solar panels and wind turbines

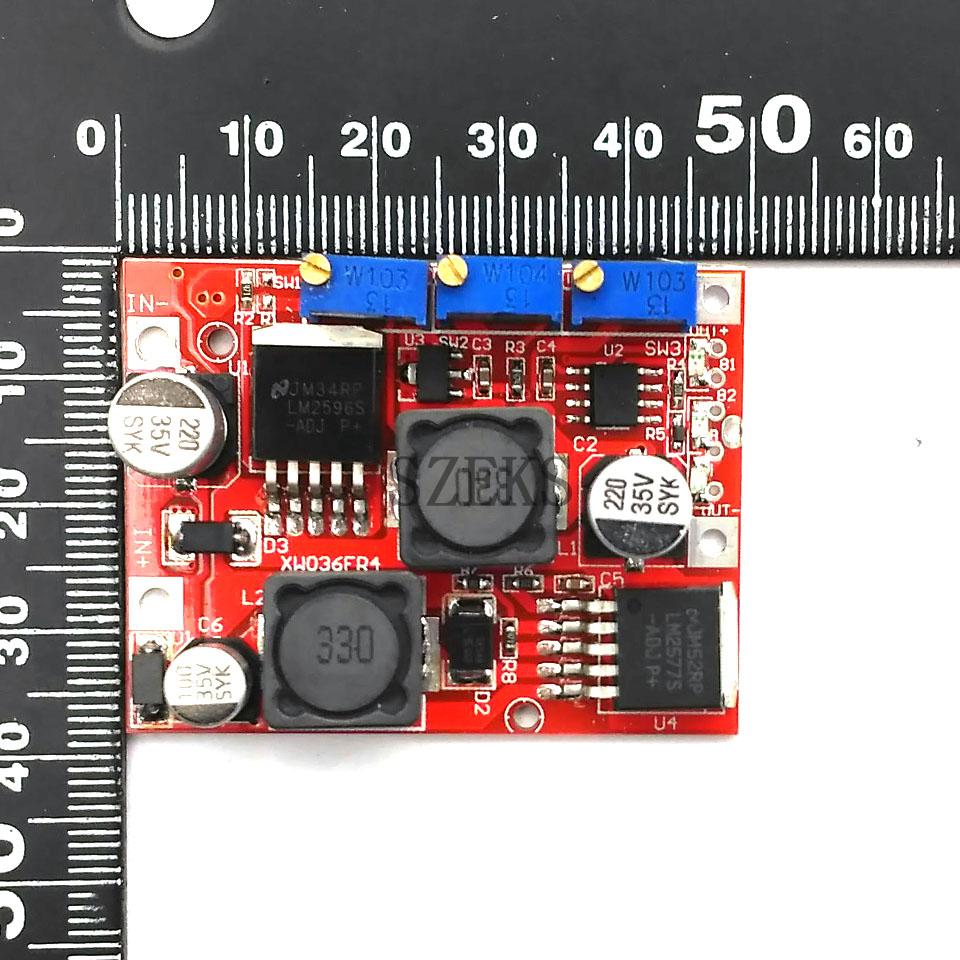

Specifications: Input Voltage: 5-35V Output Voltage: Continuously adjustable from 1.25 V to 30V Rated Output Current: 3A Max. Output Current: 4A (more than 15W, preferably with a heat sink) Size (L x W x H): Approx. 1.9 x 0.95 x 0.5 inch / 4.8 x 2.4 x 1.3cm Indicator Light Constant current indicator(red) Charging indicator(red) Charged full (green) Battery use: l Make sure of the voltage and current of the battery you need to charge l Adjust the constant voltage potentiometer to make the output voltage same to the charge voltage l Potentiometer Adjustment Direction: Clockwise (increase), counterclockwise (decrease) Use the multimeter in 10A current scale to measure output short-circuit current, and adjust the current potentiometer to make sure the output current to the expected charging current value l The charge current of transfer lamp is default 0.1 times of the charging current (constant current value) l Connected to the battery and try to charging (for previous 5 steps, module input terminal is connected to power source, output load is NOT connected to batteries)

LED Constant Current Driver Use:

l Make sure operating current and Max operating Voltage of the LED you need to drive l Adjust the constant voltage potentiometer to make sure the output Voltage is up to LED Max operating Voltage Use the multimeter in 10A current scale to measure output short-circuit current, and adjust the current potentiometer l to make sure the output current to the expected LED operating current l Join LED, test (For the above 3 steps, module input terminal is connected to power source, output load is NOT connected to LED)This module's power output is affect by the module itself-capacity and pre-and post-class load and other factors; the following data for professional equipment measured results, without considering other factors. This Module Properties : It is non-isolated step-down constant current, constant voltage module (CC CV) charging module Input Voltage : 4-35V Output voltage : Continuously adjustable(1.25-25V unload adjust) Output current : 3A Max(If more than 15W, please install the heat sink) CC range : 0-2A (adjustable) Revolving light current : CC value X (1%-100%), default is 0.1 times Minimum voltage difference : 2V Output power : natural cooling 15W Conversion efficiency : 80% (the higher the output voltage, the higher the efficiency) Operating Temperature : Industrial (-40 degree to +85 degree ) (ambient temperature more than 4 degree, lower power use, or add heat sink) Full load temperature rise : 45 Degree Indicator : CC indicator is Red, charging indicator is Red, charging completed the indicator is Blue. Output short circuit protection : Yes, constant current. Connect method : Can solder on the PCB with wire directly Input : IN+ input Positive is, IN- input negative Output : OUT+ output is positive, OUT- output negative Module Size : 50 x 37 x 13mm Some Applications : High-power LED constant current driver ; Lithium batteries (including ferroelectric), 4V, 6V, 12V, 14V, 24V battery charging, nickel-cadmium nickel-metal hydride batteries (battery) charge. Solar panels, wind generator voltage regulator circuit board power supply, such as automatic buck regulator circuit. Battery use : Make sure of the voltage and current of the battery you need to charge Adjust the constant voltage potentiometer to make sure the output Voltage is about 5V(about). Use the multimeter in 10A current scale to measure output short-circuit current, and adjust the current potentiometer to make sure the output current to the expected charging current value The charge current of transfer lamp is default 0.1 times of the charging current (constant current value) Adjust the constant voltage potentiometer to make sure the output Voltage is up to floating Voltage. Connected to the battery and try to charging (for previous 5 steps, module input terminal is connected to power source, output load is NOT connected to batteries). LED Constant Current Driver Use : Make sure operating current and Max operating Voltage of the LED you need to drive. Adjust the constant voltage potentiometer to make sure the output Voltage is 5V(about). Use the multimeter in 10A current scale to measure output short-circuit current, and adjust the current potentiometer. To make sure the output current to the expected LED operating current. Adjust the constant voltage potentiometer to make sure the output Voltage is up to LED Max operating Voltage. Join LED, test (For the above 3 steps, module input terminal is connected to power source, output load is NOT connected to LED) When adjust the blue potentiometer ,please use a multimeter to monitor the voltage Rotating Clockwise can rise the voltage while rotating counterclockwise could lower the voltage When the module output voltage can not be adjusted ( the output voltage is always equal to the input voltage ) Please adjust the potentiometer counterclockwise 20 laps (20 turns) or more till it works.

Package included: 1 Pcs DC Step Up Down Module LM2577S LM2596S CC CV adjustable
