Our store offers a curated selection of genuine Japanese products. You can shop with complete peace of mind knowing that all our items are authentic. Please note that the instructions and manual for this product may only be available in Japanese.
1. KEY FEATURES:
- ★★★★★High quality alloy measuring head can make various internal size measurements and be used with fine workmanship and without burrs.
- ★★★★★ Wipe the surface of the measuring anvil head with a soft cloth, then rotate the measuring device to bring the two measuring surfaces into contact.
- ★★★★★The micrometer body is made of stainless steel with chrome-plated surface, which is wear-resistant and durable.
- ★★★★★Designed with locking device, accurate mechanical structure makes it more intuitive and convenient to read.
- ★★★★★Built-in ratchet stop device ensures accurate repeat measurements.
2. PRODUCT DESCRIPTION:

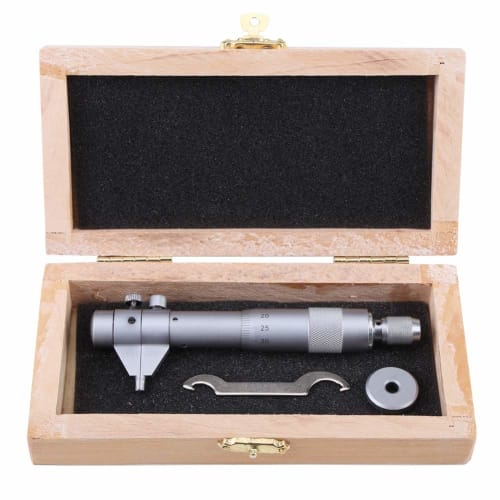

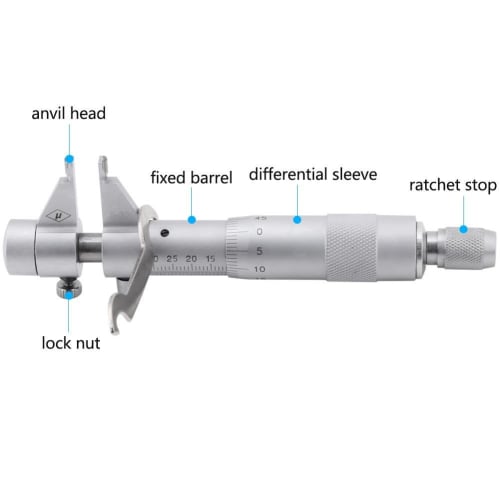

Specifications: Type: Internal micrometer Measuring range: 5mm~30mm Material: Stainless steel Accuracy: 0.01mm Weight: 268g (approx.) Zero adjustment: Wipe the surface of the measuring anvil head with a soft cloth, then rotate the measuring device to bring the two measuring surfaces into contact.If the two zero lines of the differential sleeve and fixed barrel do not match, adjust them in two ways:Method I, if the error is less than 0.02 mm (0.001"), use a ratchet stop to firmly fix the screw, then use a wrench to pull the fixed barrel to two zero line alignment. Method II, if the error is greater than 0.02 mm (0.001"), use a ratchet stop to firmly fix the screw, then use a wrench to loosen the ratchet stop and remove the differential sleeve.Step 2. Readjust the zero line of the fixed barrel and differential sleeve, then re-adjust using Method I. Note: There is no need to calibrate the micrometer during general use.The micrometer only needs calibration when it is badly worn.Package includes: 1 x Inside Micrometer 1 x Calibration Ring 1 x Packing Box
3. PRODUCT DIMENSIONS & WEIGHT:
- Weight: 0.18 kg

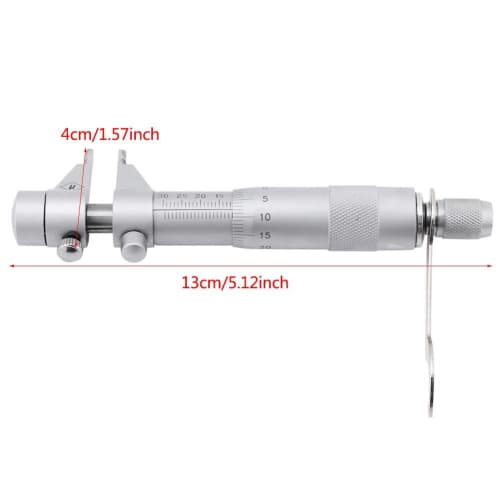

- Dimensions: 14.5 x 6.8 x 3.0 cm
