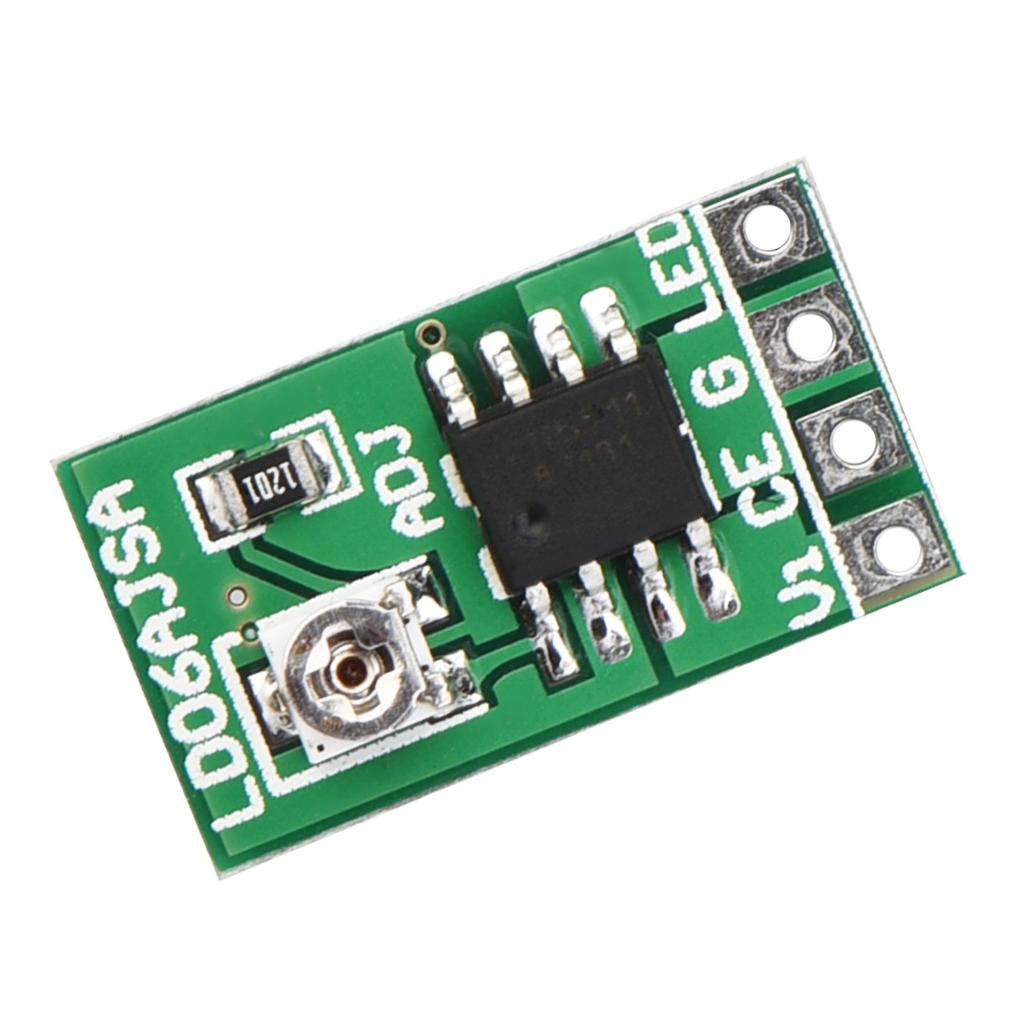

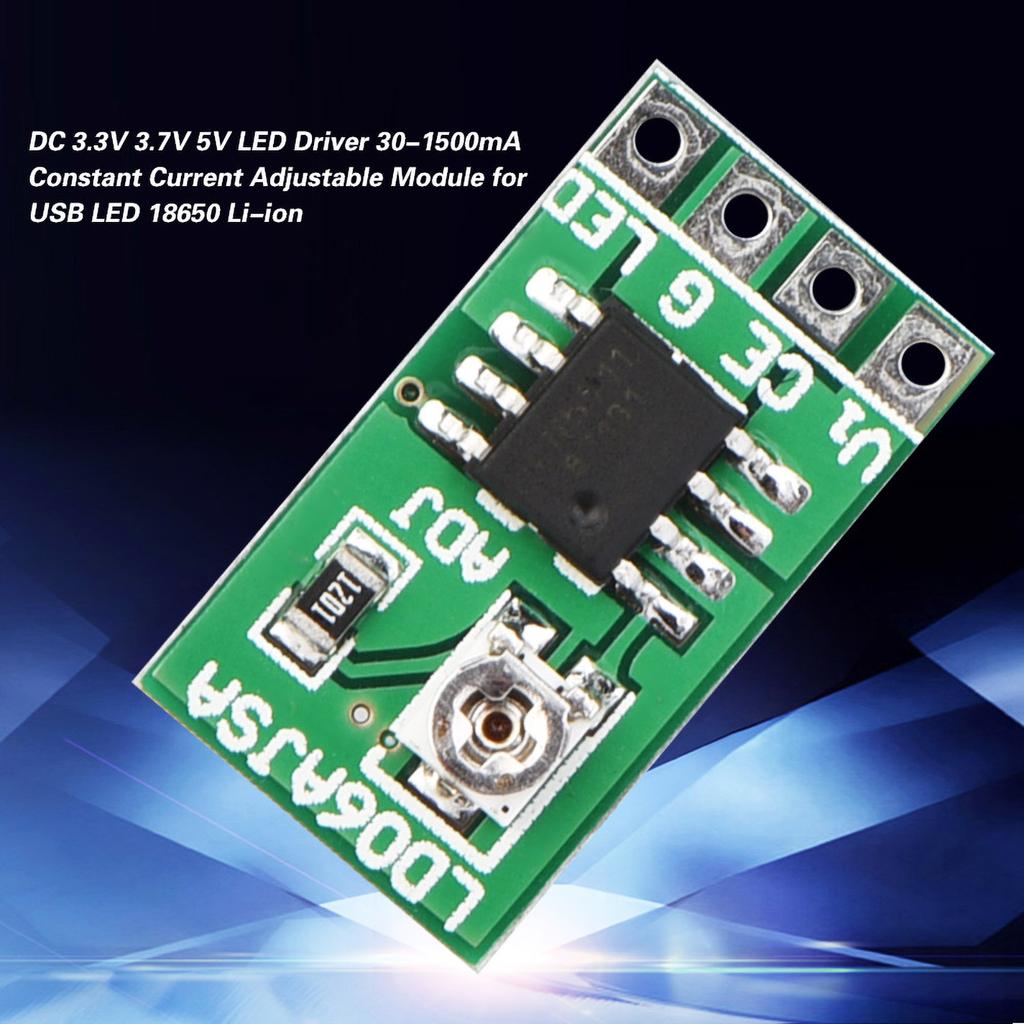

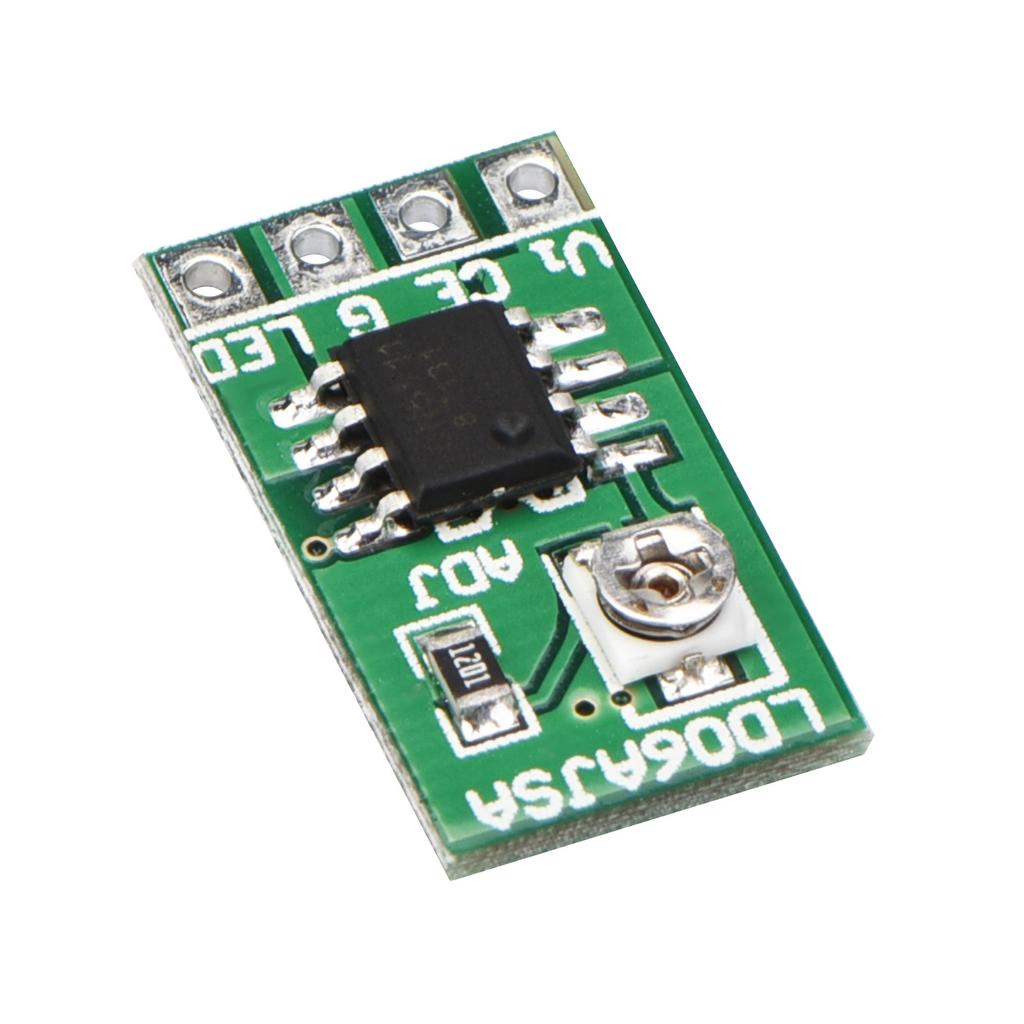

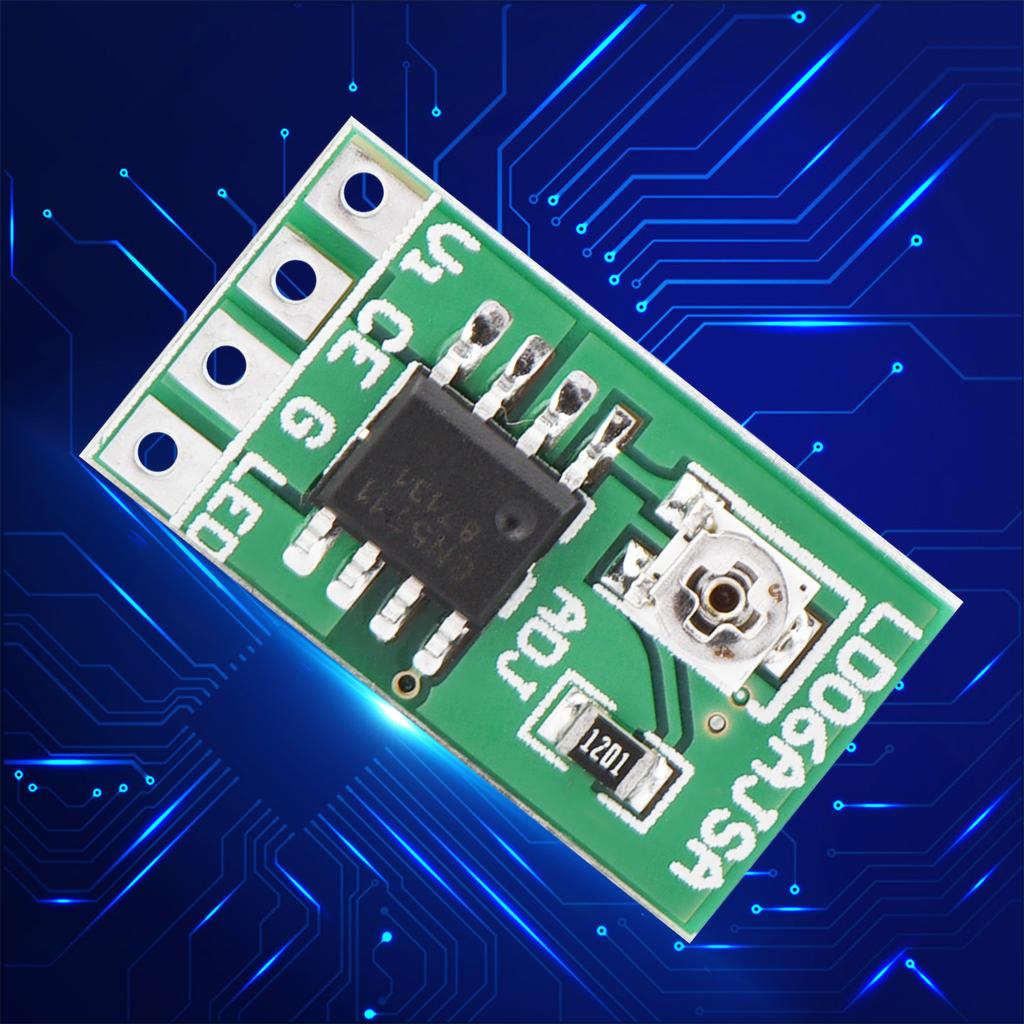

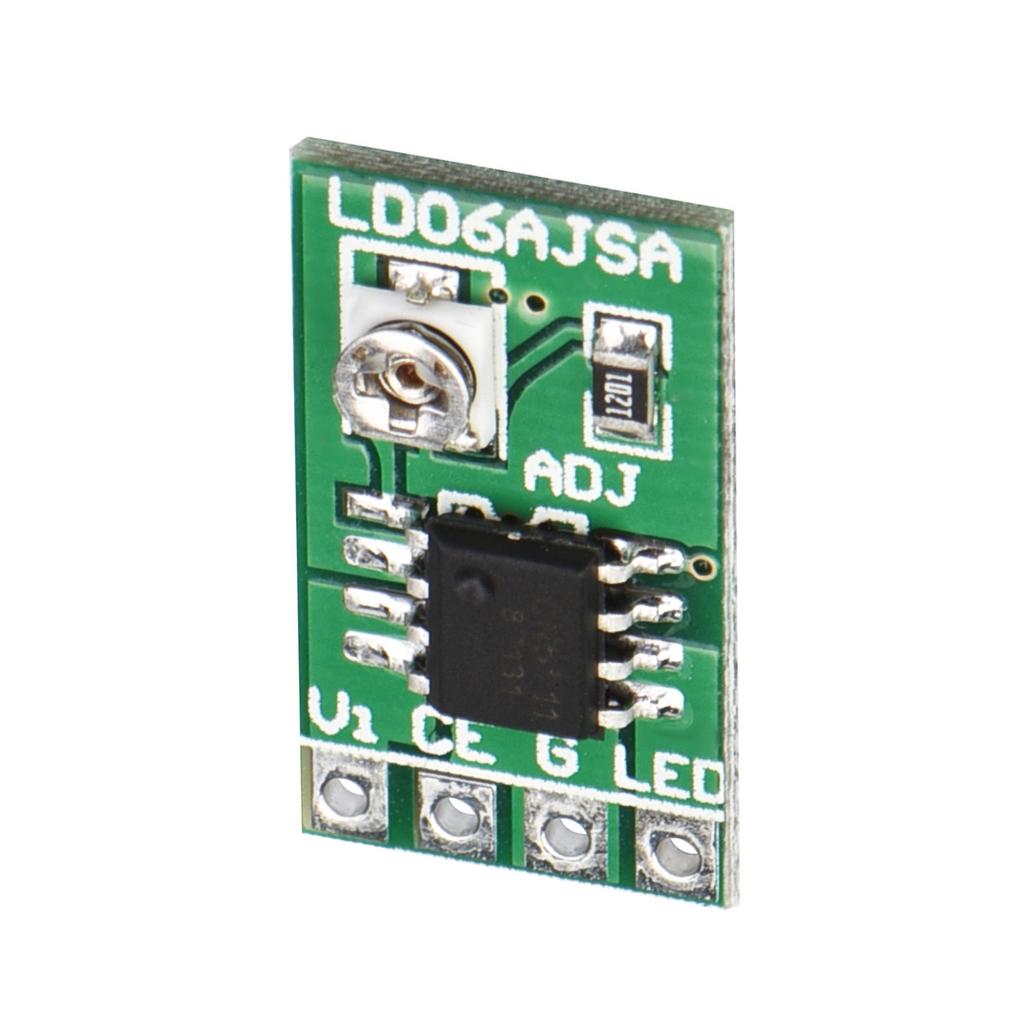

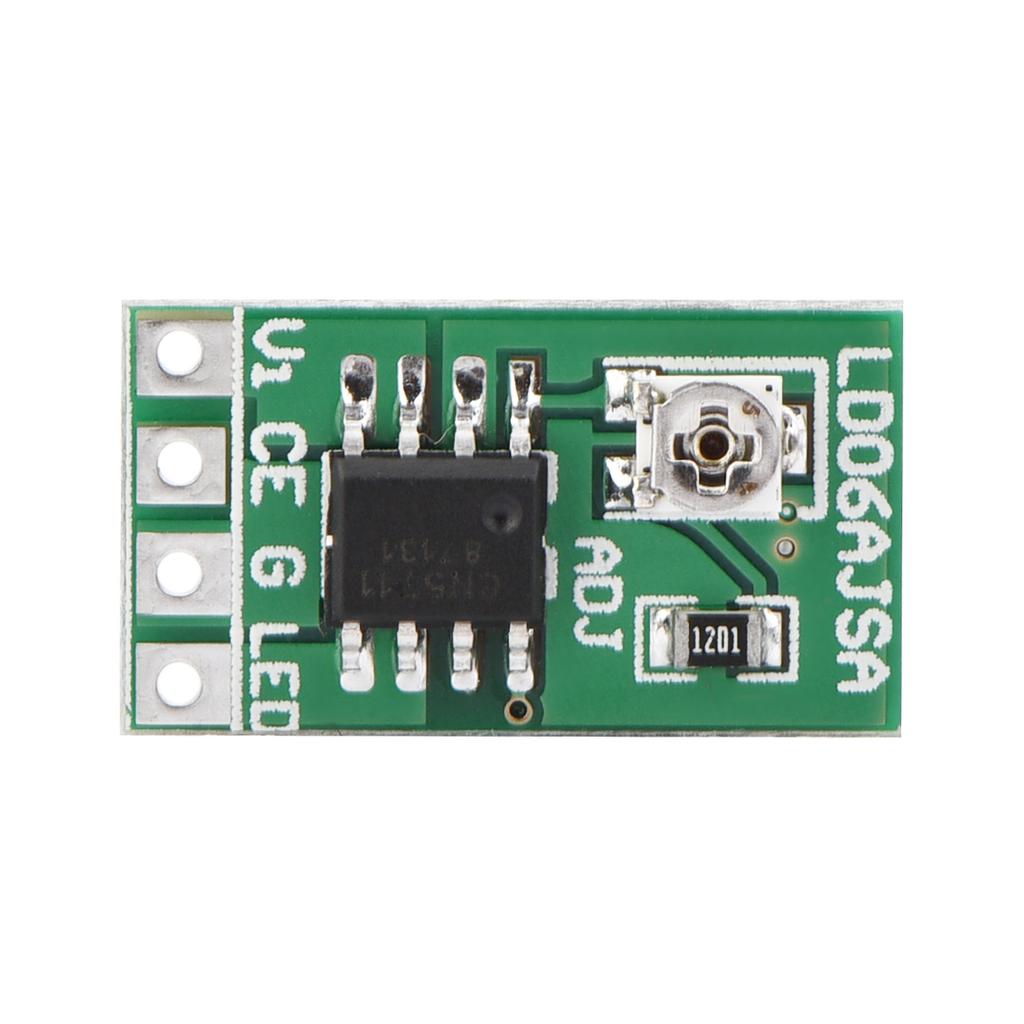

DC 3.3V 3.7V 5V LED Driver 30 1500mA Constant Current Adjustable Module for LED 18650 Li ion

Features: 1. This product is a current regulation integrated circuit operating from an input voltage of 2.8V to 6V, the constant output current can be set up to 1.5A with an external resistor. 2. It consists of high precision reference voltage, amplifier, current mirror, etc. The on chip power transistor and current sense block greatly reduce the external component count, which makes this product ideal for LED driver. 3. When the CE pin is high, the input voltage is greater than 2.8V, and is larger than the LED forward voltage plus the required voltage drop, it functions normally to deliver constant current from the LED pin. 4. Adopts the temperature regulation instead of temperature protection function, the temperature regulation can make the LED being turned on continuously in case of high ambient temperature or high voltage drop. When the junction temperature reaches about 135

degrees C, the internal temperature regulation block reduces the LED current so that the junction temperature will not rise any more. This feature allows the users to maximize the use of the power handling capability of the chip, do not worry about the chip overheating and damage to the chip or external components. 5. With e chip enable function, which can shutdown the whole chip to limit the current consumption within 1uA. 6. Adopts the over current protection block. When LED current approaches 1.9A(Typical), the over current protection block begins to function to prevent the LED current from increasing further. Specification: Working voltage : DC 2.8 6V(Perfect for 3V 3.3V 3.7V 4.5V 5V 6V LED Driver) Output current: 30 1500mA Maximum output power: 9W Can drive 1 16pcs 2.8 6V LEDs (maximum current does not exceed 1.5A) Current regulation: 1 through adjustable resistance; 2 through PWM signal control Weight: 0.56g Package list: 1 * Adjustable Current LED Driver
