Before purchasing, please choose the appropriate size based on the width of your vehicle's hood. You need to reserve some length according to the width of the hood. This product supports cutting but not splicing.
When wiring, be sure to follow the installation instructions for correct wiring, otherwise it may cause incorrect lighting effects.
Features:1,Super bright lamp beads, side illuminate,super bright even at daytime.2,Flexible light strip,can be bend and cut according to your need.3,3MM thiness size,stealth installation,seem to the original,Compliance with traffic regulations.4,Widly applications,can use to the car hood light,car door light,turnk light,ambient decorative light.5,Easy to install, glue+wire connection.
Specification:Votage:12V DCFitment:Universal CarMaterial:silicon+pvcModes:Fix,Meteor,Dynamic ,etc ModesProtection grade:IP68Color:White,Blue,Ice blue,Red and YellowLength:150cm/180cm/200cmFunction:Dynamic Daytime Running lights,Star-scan DRL,Car decorative atmosphere lights,Car ambient lightApplication:car hood light,Car door light,car trunk lightThe power-on scanning mode is fixed and has a memory function.

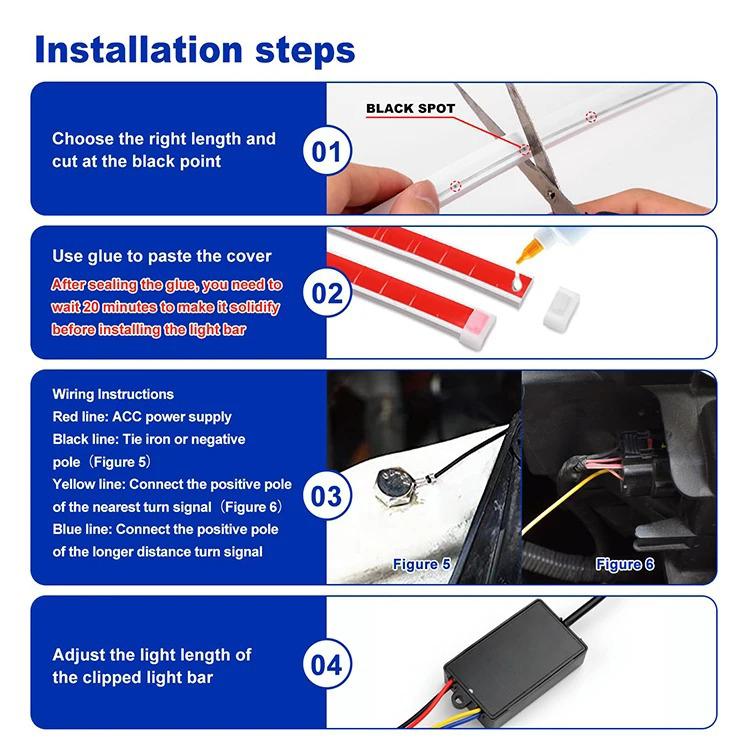

Wire Connection Usage:Red line:positive pole of headlightBlack wire:ground or negativeYellow line:positive pole for left turnBlue line:right turn positive1.Black line connect to negative pole + Red line connect to ACC = Engine starts to light up.2.Black line connect to negative pole + Red line connect to DRL= Turn on DRL to light up.3.Black line connect to negative pole + Red line connect to Low beam lights = Turn on Low beam lights to light up.4.Black line connect to negative pole + Red line connect to High lights = Turn on High lights to light up.5. Other locations you want to install only need to connect the corresponding positive and negative polesThe light can be cut into sections of 4cm
Need to be re-sealed after cutting. And adjust the length of the light by controlling the controller
Controller button description:①.Adjust the length of the cut light bar:a. Press and hold + when the light bar is in the daytime running light state, and the white light will appear half bright, with the midpoint highlighted.b. Short press + to increase the length. Short press - decrease the length.c. After the adjustment is completed, press and hold the + key to save and exit.
②.Adjust the starting point of the running water turn signal: (Please adjust the luminous length of the cut light bar first)a. When the light bar is in the daytime running light state, the double flashing light changes to yellow. Press and hold +, and the yellow light will remain on.b. Short press + to increase the length. Short press - decrease the length.c. After the adjustment is completed, press and hold the + key to save and exit.
③.Adjust the daytime running light modeWhen the light bar is in the daytime running light state, press and hold the - button. Switchable between always-on and dynamic modes.
