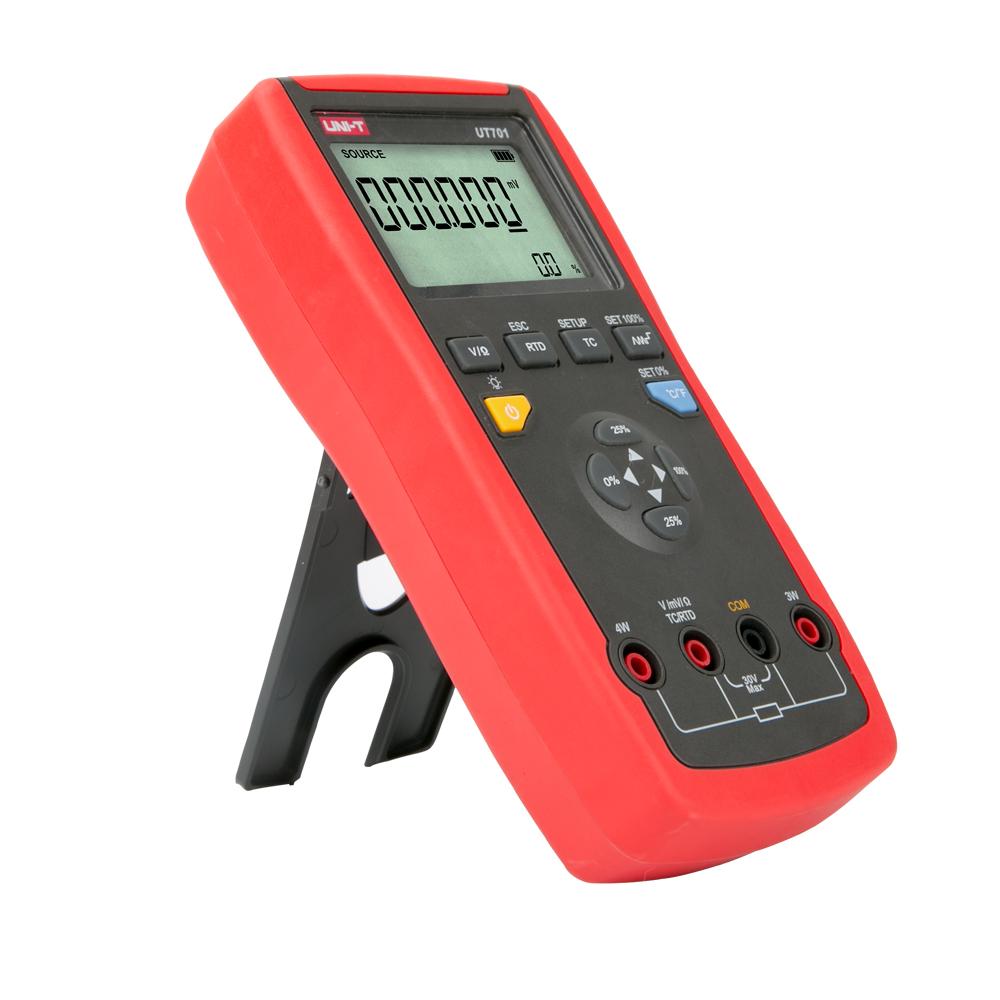

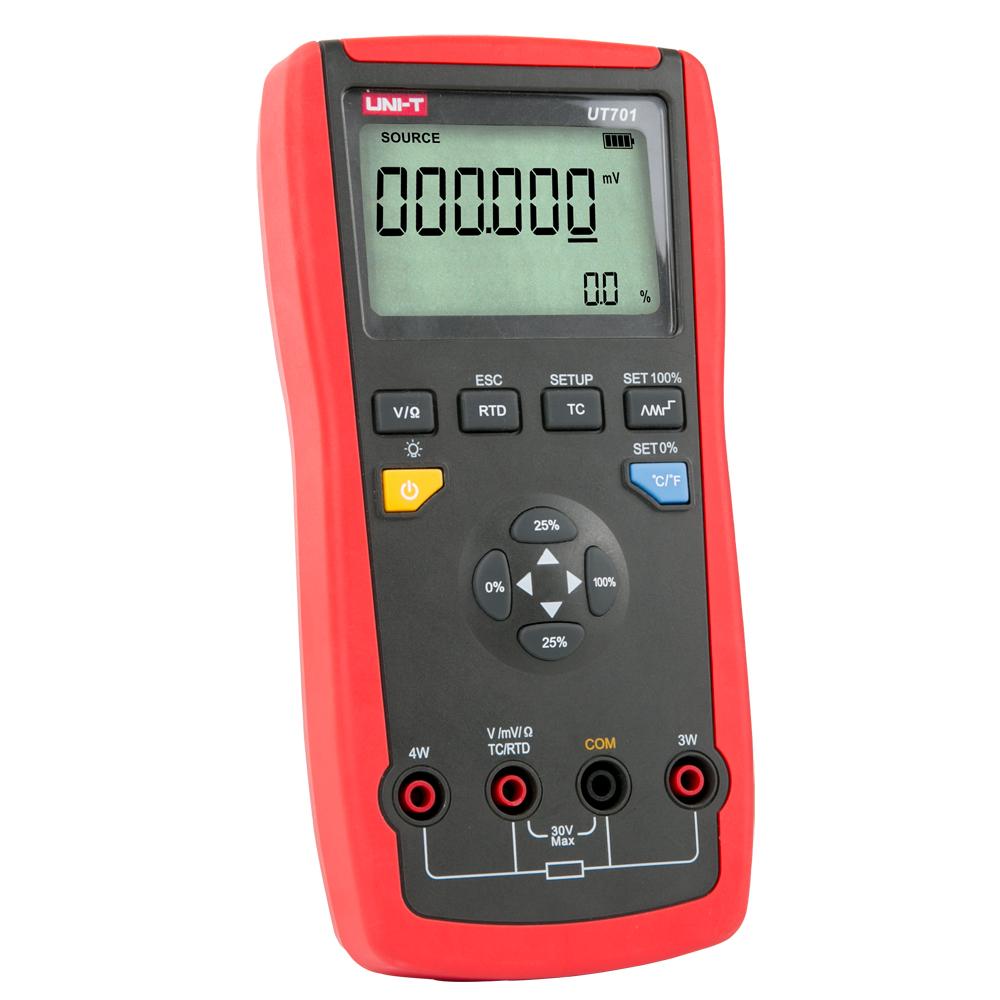

UT701 Temperature Calibrator J/K/T/E/R/S/B/N/Wre RTDs mV ResistanceThermocouple output thermistor output temperature detec

Battery Included : No High-concerned chemical : None Measurement Accuracy : ±300℃/ °F Origin : Mainland China

UT701 Single Function Temperature Calibrator Equipped with 10 thermocuple types, 4 RTD types, and voltage/resistance output function, UT701 is professional and convenient for users to calibrate and repair various temperature testers. Easy-to-operate keys, selectable steps and ramp outputs make operations efficient and accurate. It features LCD backlight, auto power off, bi-color injection case and 1m drop proof.

Features of UT701 Single Function Temperature Calibrator

Certifications: CE, UKCA ● Up to 0.05% output accuracy ● 6-digit display ● Output functions: DC voltage, resistance, thermocouple, and thermal resistance ● 10 thermocouple scales ● 4 thermal resistance scales ● High precision automatic cold junction compensation for thermocouple outputs ● Manual stepping and automatic stepping and  ramping ● Stores and recalls setups

Specifications of UT701 Single Function Temperature Calibrator Specifications Type Range UT701 Source accuracy DC mV

100.000mV ±(0.05%＋3)

1000.0mV ±(0.05%＋3) Resistance (Ω)

500.0Ω ±(0.05%+2)

5000Ω ±(0.05%+2) Thermocouples J -20~1200℃ (-328~2192℉) ±0.7℃ K -200~1370℃ (-328~2498℉) ±1℃ T -200~400℃ (-328~752℉) ±0.8℃ E -200~950℃ (-328~1742℉) ±0.7℃ R -20~1750℃ (-4~3182℉) ±1.4℃ S -20~1750℃ (-4~3182℉) ±1.5℃ B 600~1800℃ (1112~3272℉) ±1.4℃ N -200~0~1300℃ (-328~2372℉) ±0.9℃ Wre325 0~2000℃ (32~3632℉) ±1.8℃ Wre526 0~2300℃ (32~4172℉) ±1.8℃ RTDs Pt10 -200~850℃ (-328~1562℉) ±(0.5%+6℃) Pt100 ±(0.05%+0.6℃) Cu50 -50~150℃ (-58~302℉) ±(0.05%+0.6℃) Cu100 ±(0.05%+0.6℃) Features Ramp functions Source functions: Voltage, resistance, temperature Ramps: Slow ramp, fast ramp, 25% step-ramp Step functions Source functions: Voltage, resistance, temperature Steps: 25% of range, 100% of range General Characteristics Power 9V battery (6F22) Display 63mm x 40mm Product color Red and grey Product net weight 410g Product size 96mm x 193mm x 47mm Standard accessories Test leads, battery Standard individual packing Gift box, English manual, cloth bag
