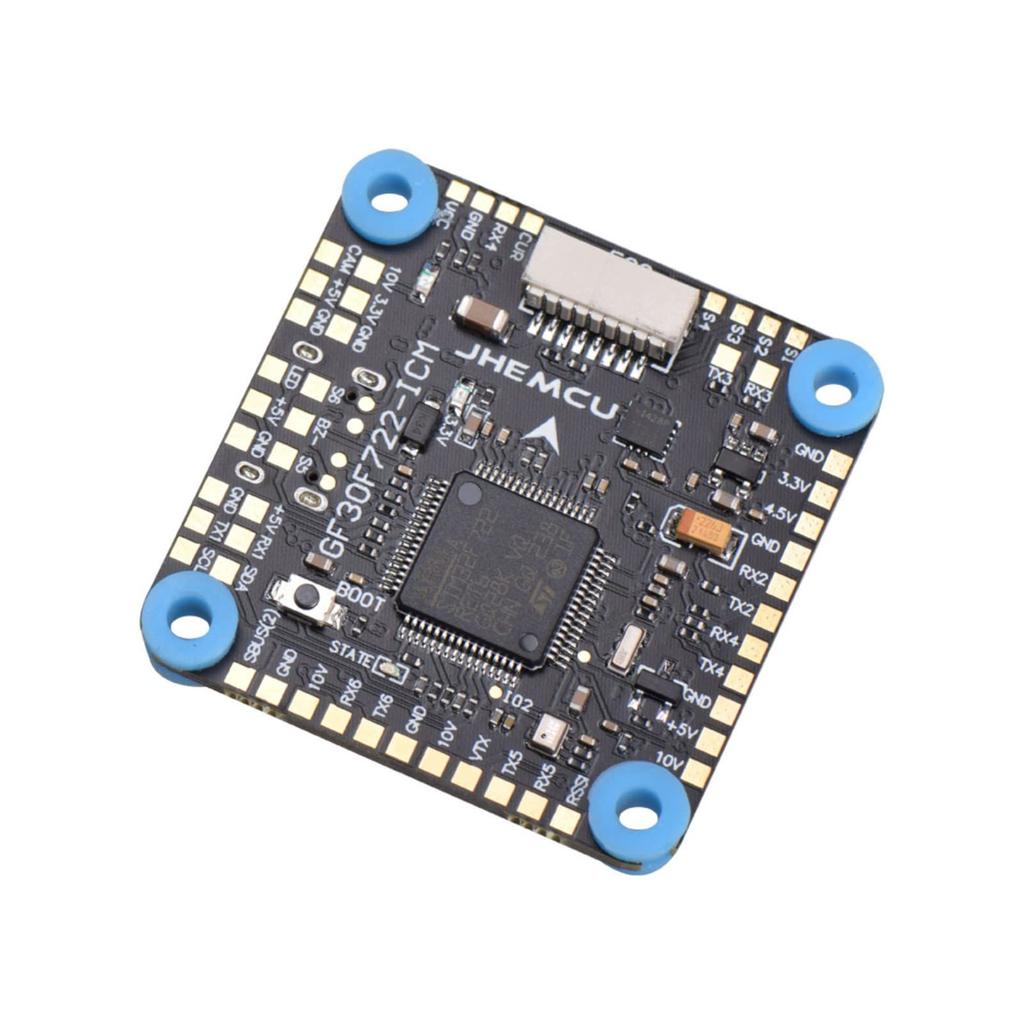

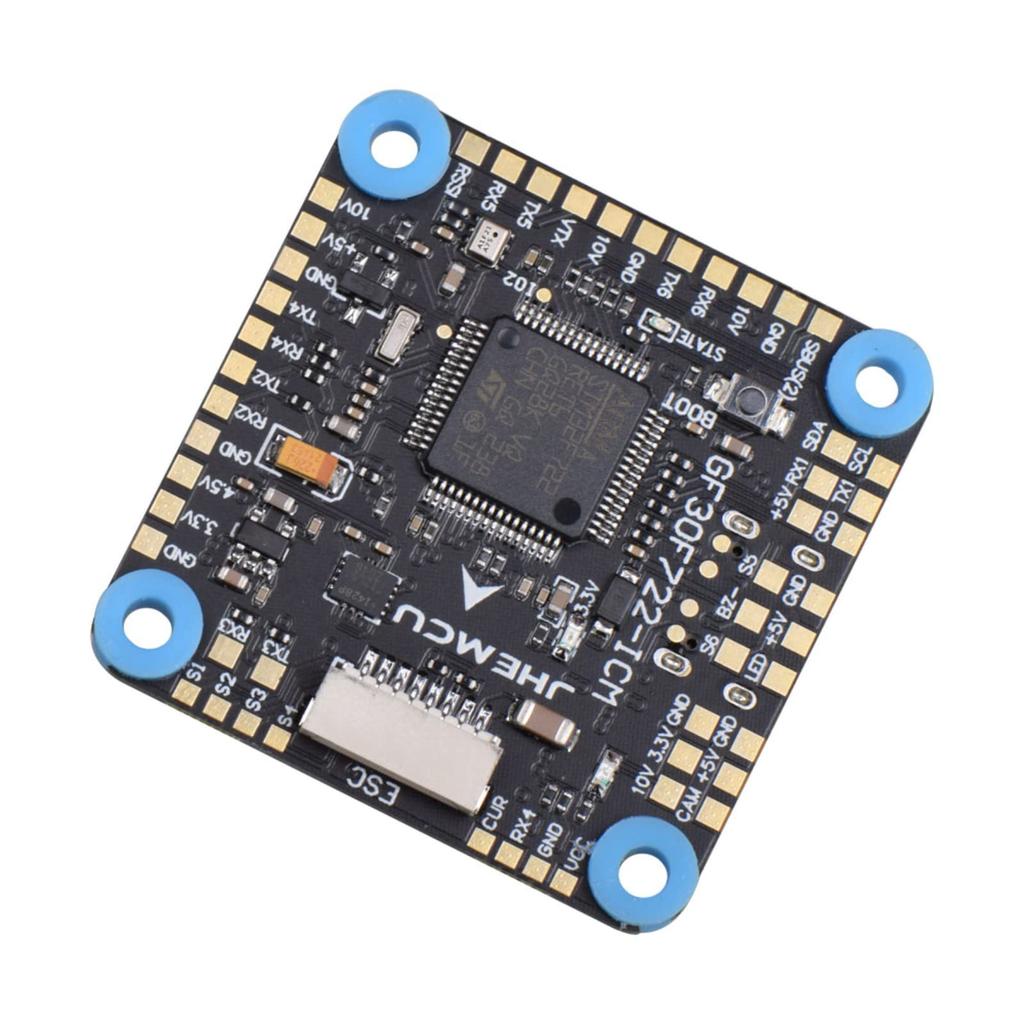

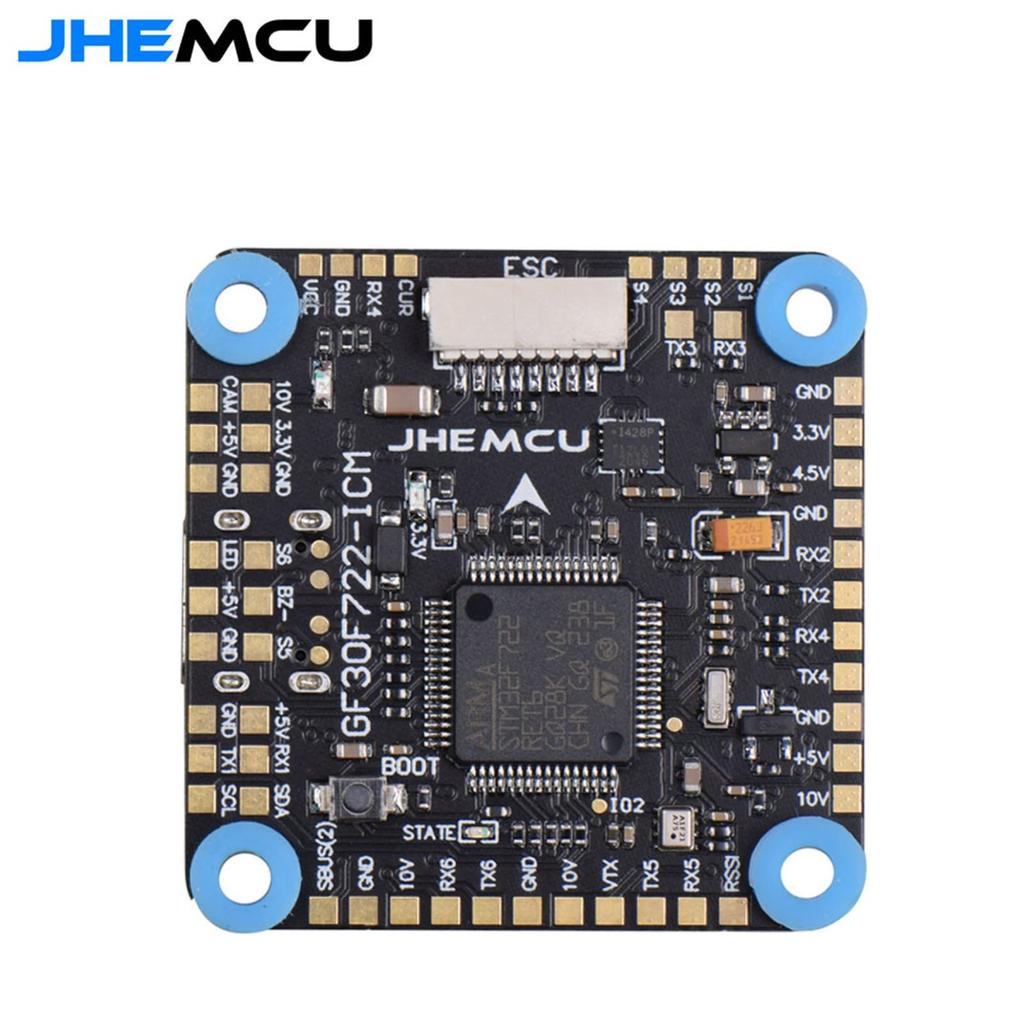

Xtahdge GF30F722-ICM F722 F7 HD Baro OSD 5V 10V Dual BEC Flight Controller 3-8S 30.5X30.5mm for Remote Control FPV Freestyle Drone Parts

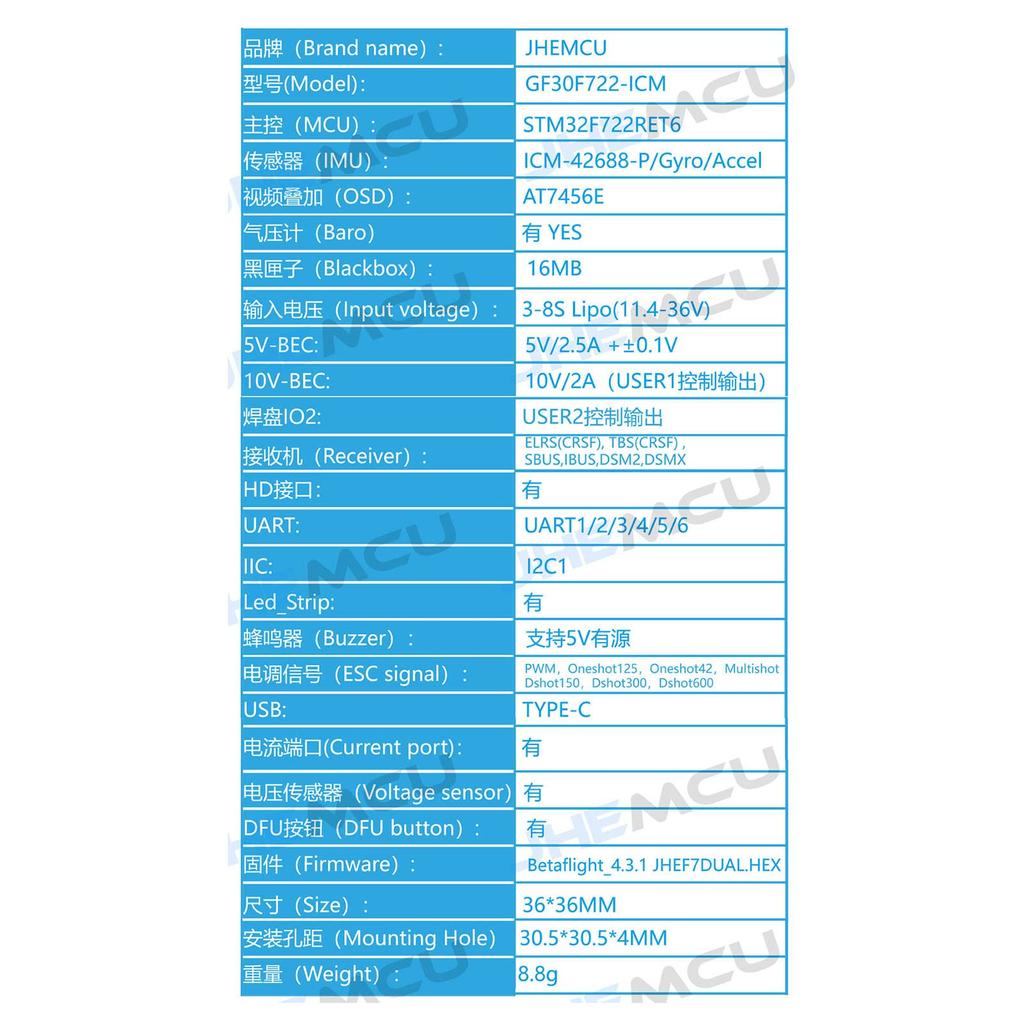

Features: GF30F722-ICM F722 F7 HD Baro OSD 5V/10V Dual BEC Flight Controller 3-8S 30.5X30.5mm Remote Control FPV Freestyle Drone Parts. The PCB uses a high-end 8-layer 2oz thick copper skin with stronger overcurrent capability and excellent heat dissipation. The MOS uses an imported 30V high-current resistance MOS, long life, and strong load capacity. Uses an industrial-grade LDO with high temperature resistance. High-quality Japanese Murata capacitors provide powerful filtering performance. Specifications: Brand Name: Model: GF30F722-ICM MCU: STM32F722RET6 IMU: ICM-42688-P/Gyro/Accel OSD: AT7456E Var: Yes Black Box: 16MB Input Voltage: 3-8S LiPo (11.4-36V) 5V-BEC: 5V/2.5A +/-0.1V 10V-BEC: 10V/2A (User 1) IO2: User 2 Receiver: ELRS (CRSF), TBS (CRSF), SBUS, IBUS, DSM2, DSMX UART: UART1/2/3/4/5/6 IC: 12C1 LED Strip: Yes Buzzer: 5V ESC Signal: PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600 USB: Type-C (Current Port): Yes (Voltage Sensor): Yes DFU (DFU Button): Yes (Firmware): Betaflight 4.3.1 JHEF7DUAL.HEX (Size): 36*36mm (Mounting Holes): 30.5*30.5*4mm (Weight): 8.8g

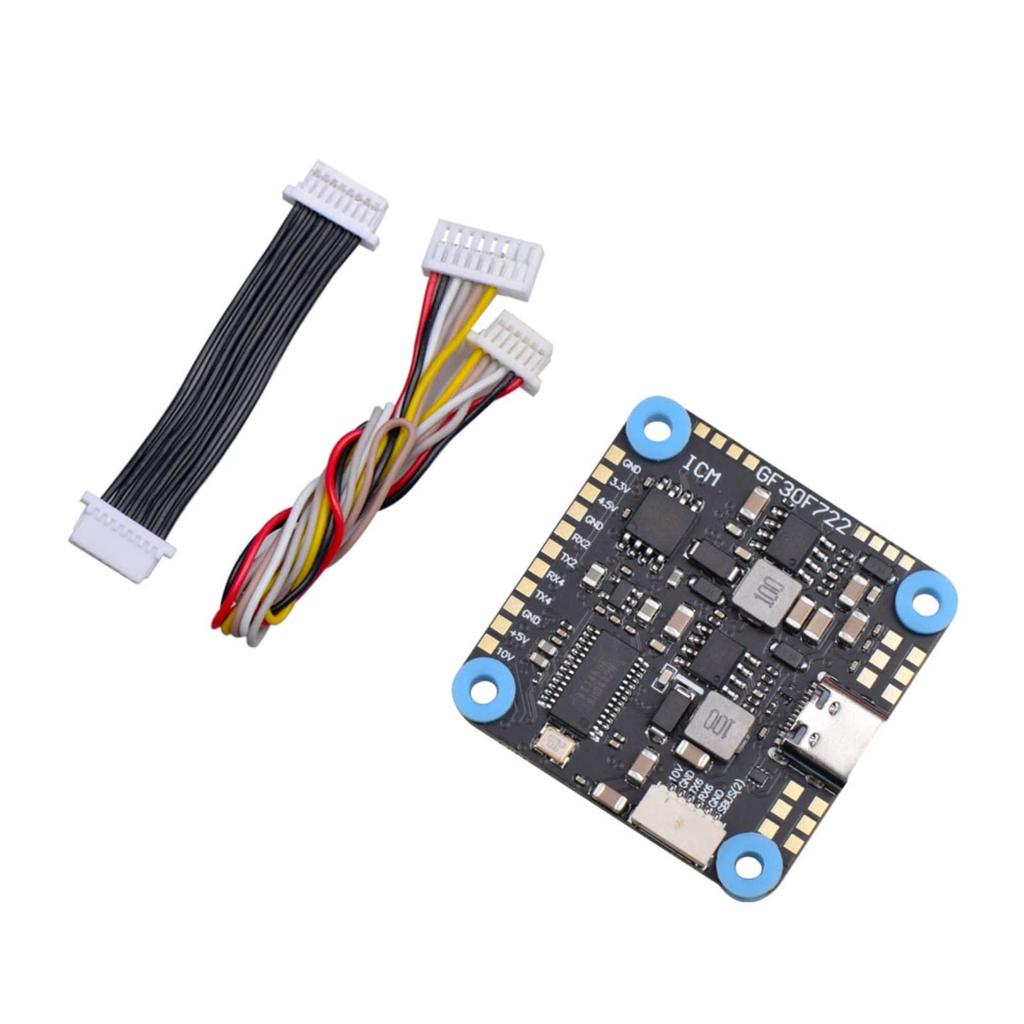

Package Information: Package Size: 50*40*20mm Package Weight: 20g Package List: 1*F722 F7 HD Baro OSD 5V/10V Dual BEC Flight Controller The PCB uses a high-end 8-layer, 2-ounce thick copper skin with stronger overcurrent capability and excellent heat dissipation. The MOS uses imported 30V high-current resistance MOS, long life, and strong load capacity. Uses industrial-grade LDOs with high temperature resistance. High-quality Japanese Murata capacitors provide powerful filtering performance. High-quality Japanese Murata capacitors provide powerful filtering performance.
