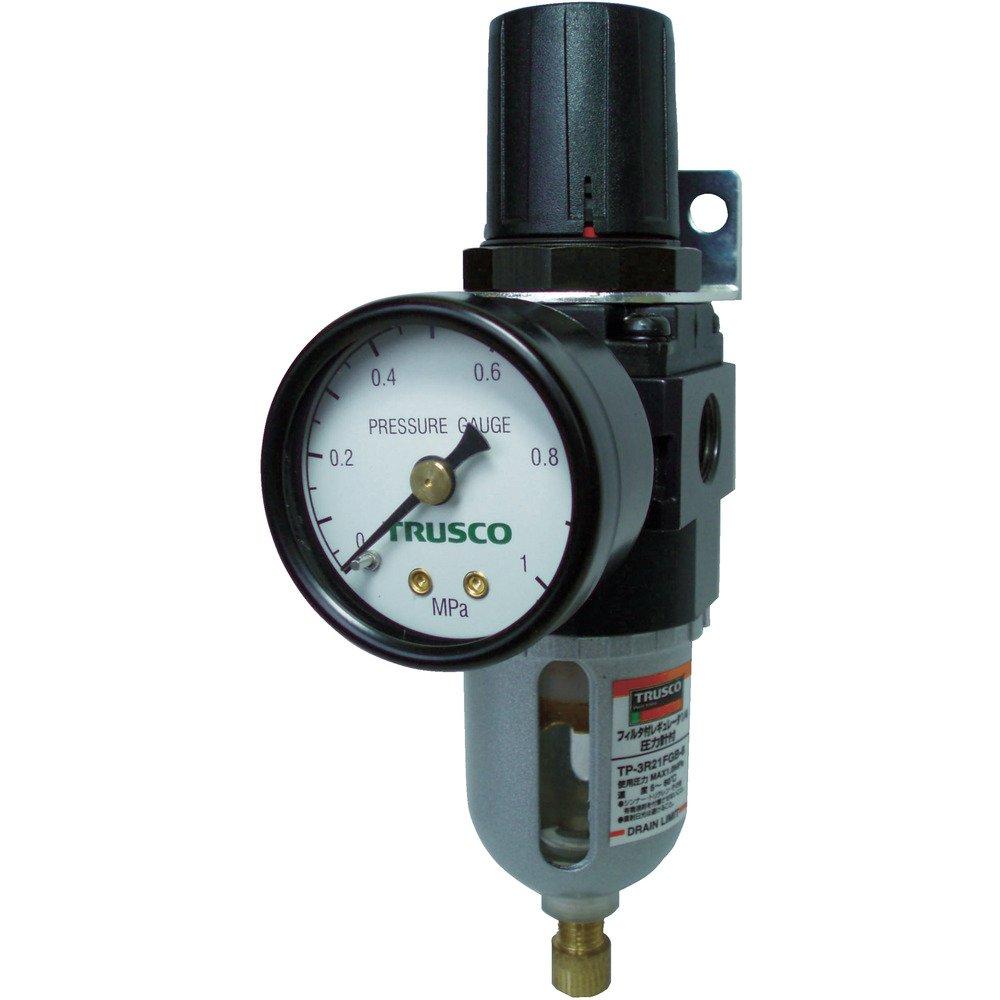

TRUSCO Filter Regulator, Maximum Flow Rate 0.5, Rc1/4 Diameter, TP-3R21FGB-8

Product Introduction

● Fluid: Air ● Fluid Temperature: 5-60°C ● Drain Discharge Method: Manual (However, the TP-3RTOFGB automatically discharges when the pressure drops below 0.05 MPa.) ● Pressure Gauge and Bracket Included ● This compact device integrates an air filter and regulator. ● Removes moisture and debris from the air to maintain constant pressure. ● Not an automatic drain. ● Compact mini-type.

From Amazon

● This compact device integrates an air filter and regulator. Removes moisture and debris from the air to maintain constant pressure. Not an automatic drain. Compact mini-type. Pressure Gauge and Bracket Included Operating Pressure (MPa): 1 Air Flow Rate (m3/min): 0.5 Connection Diameter: Rc1/4 Total Length (mm): 156.0 Filtration Accuracy (μm): 40
