1.The probe has elasticity and can be operated with one hand without getting tired after a long grip.
2.Four gears, different gears require no components for testing.
3.With component judgment light, the optocoupler test board light flashes and the components are normal.
4.The charging indicator light is red and can be fully charged in 3 hours. The red light indicates that it is rechargeable, and the constant light remains on.
5.Type-c charging port, with ultra long battery life, low power consumption, and long-lasting durability.
6.Widely applicable for testing various electronic components, supporting 4-pin optocouplers, 6-pin optocouplers, transistors, 431, igbt power transistors, mos transistors, thyristor components, and can output pulse square wave signals.
Parameters:
Product name: multi functional luminous electronic tester
Input interface: type-c
Input voltage: 5v
Input current: 0.2a
Product size: 80*19*4mm
Applicable test objects: 4-pin optocoupler, 6-pin optocoupler, transistor, 431, igbt power transistor, mos transistor, thyristor components, capable of outputting pulse square wave signals, etc
Be careful:
Not being able to test live circuits can damage the indicator
Power on/off: Short press the power button and the green light will flash 3 times to turn on the device. Long press the switch for 3 seconds and the green light will flash 3 times to turn off the device. There is no button operation, and the device will automatically turn off after 15 minutes.
Switching gears: Short press the power button to switch gears. There are a total of four gears, and the green led flashes continuously a few times to determine the number of gears.

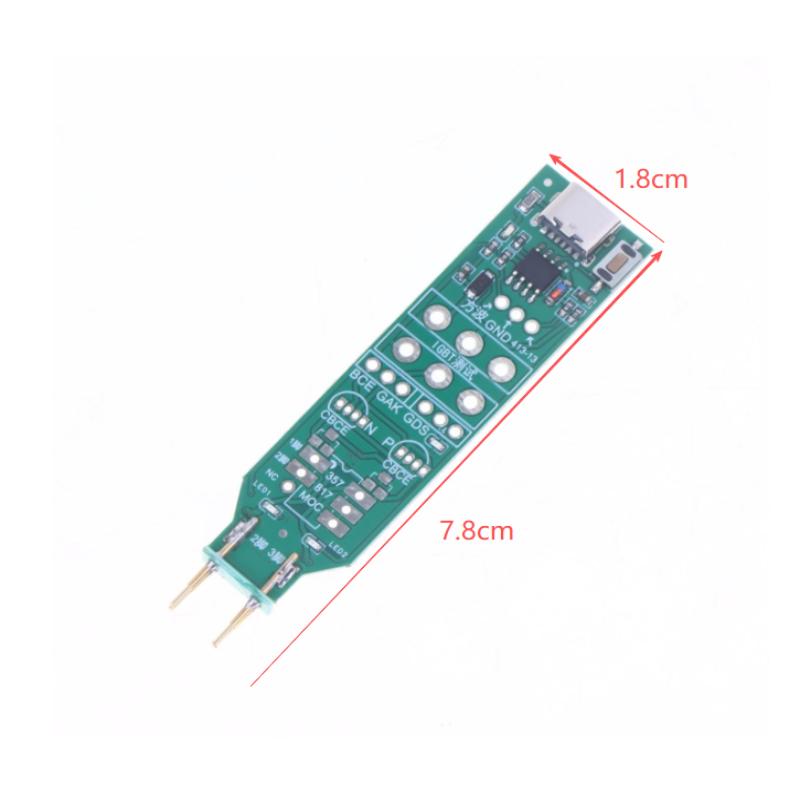

Size:7.8*1.8cm
Package quantity:1Pc
Note:
Please allow 2-3 differences due to manual measurement. The above dimensions are for reference only.
As different computers display different colors, thank you for your understanding, the actual product color may be slightly different from the image.
