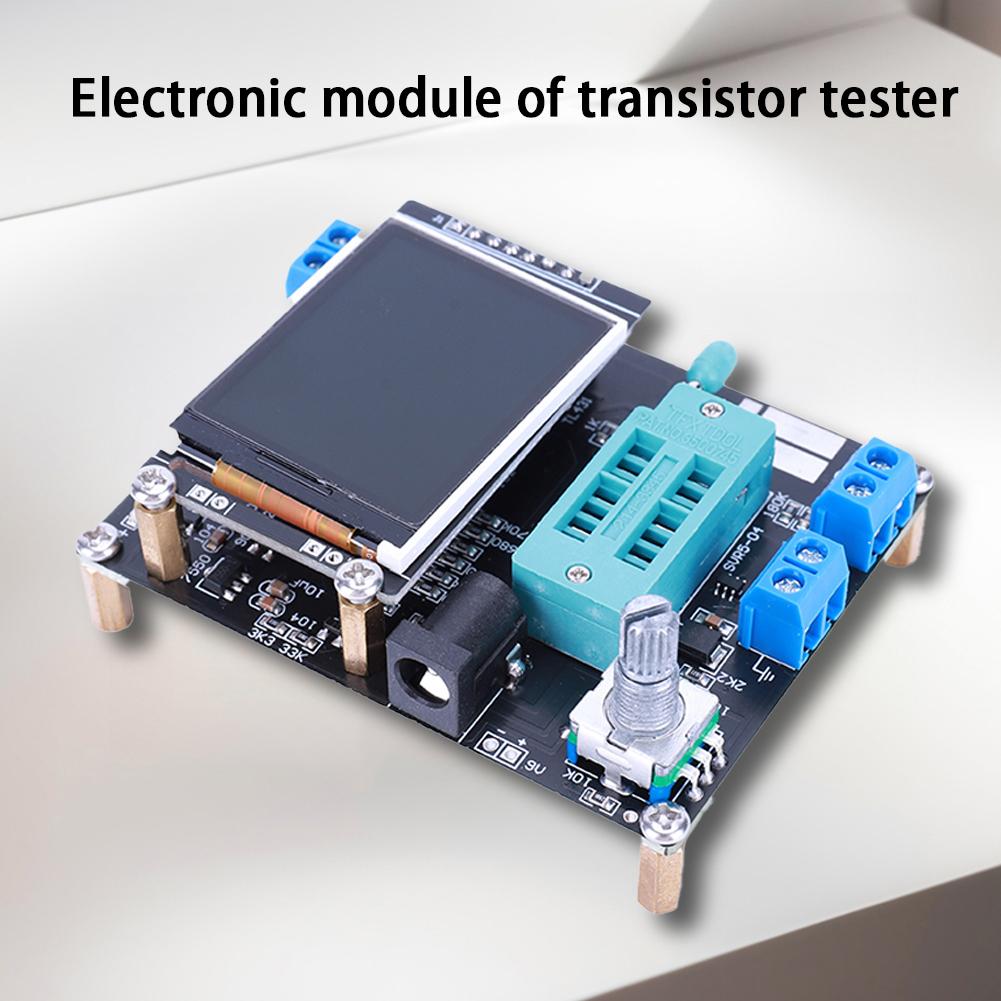

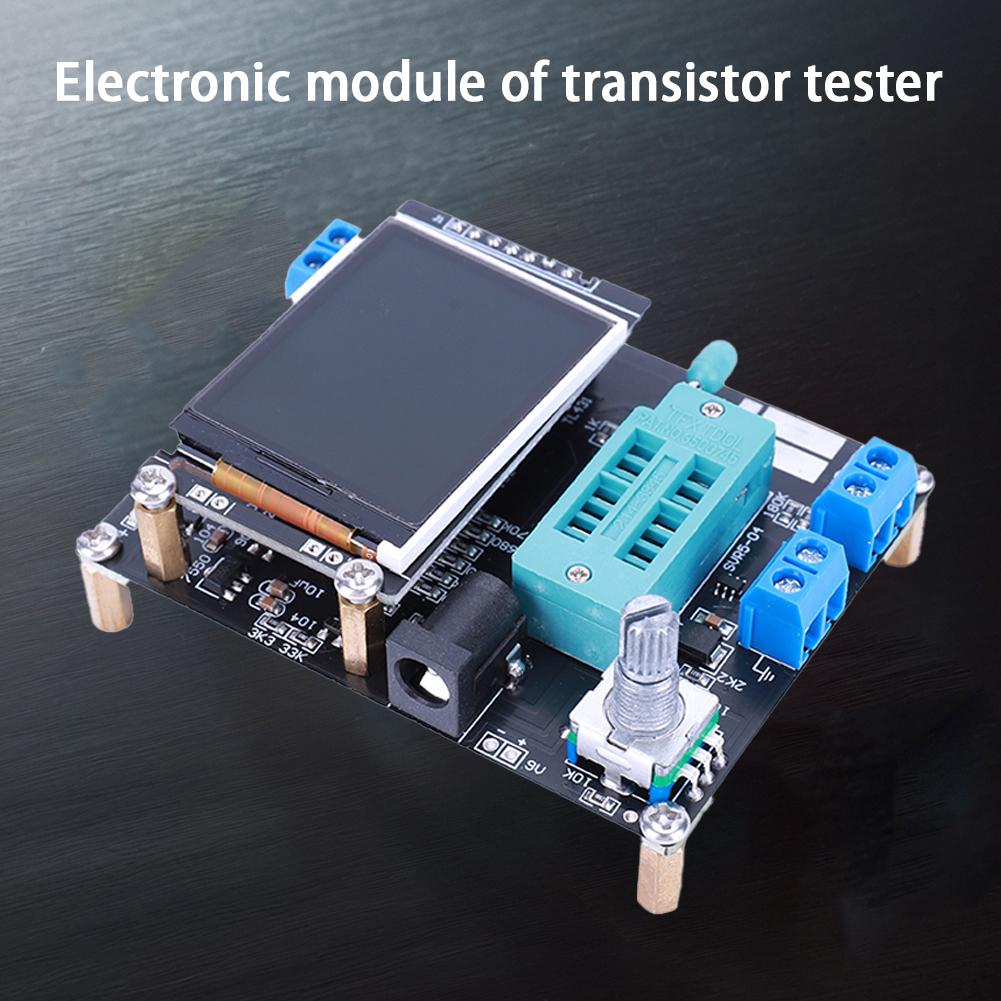

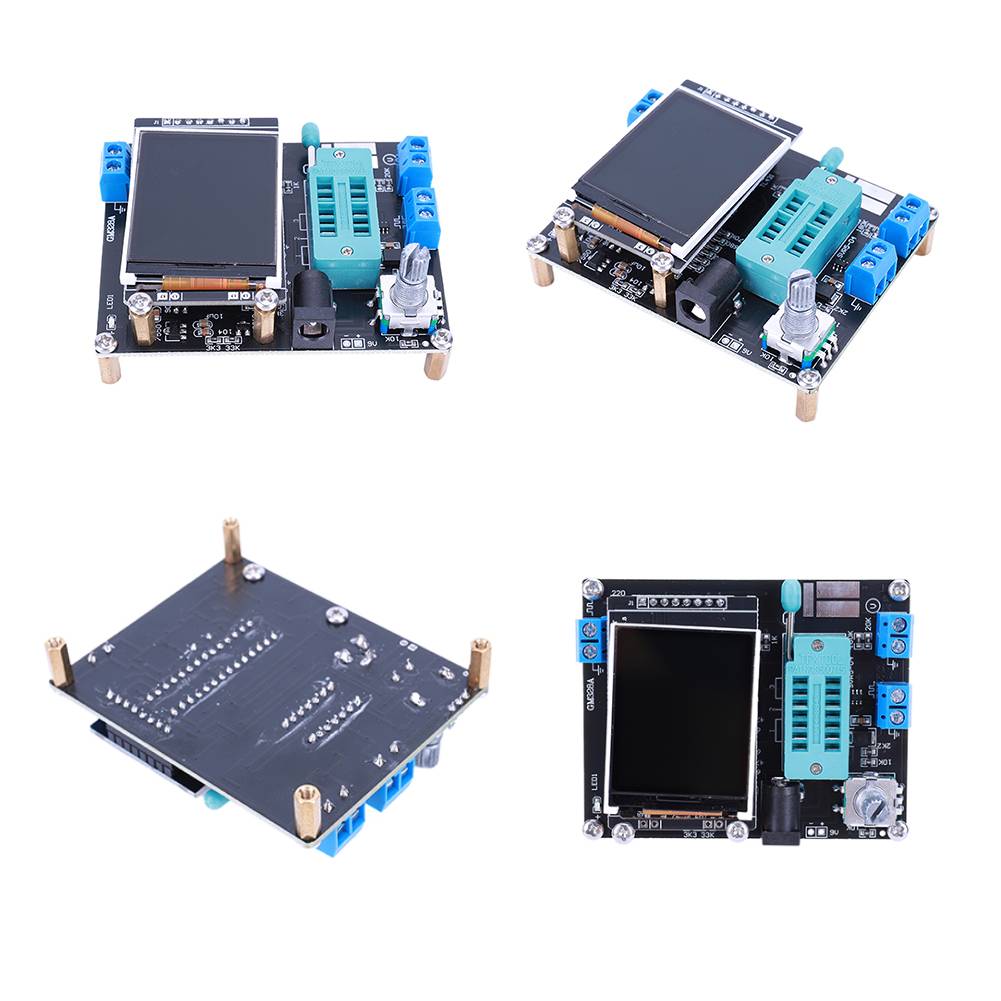

GM328 Transistor Tester LCR Diode Capacitance ESR Voltage Frequency Meter PWM GM328A Diode Cap ESR Volt Freq Meter Type-C Charge
Feature:
1. Wide Range of Applications:The transistor tester is designed for a variety of uses, making it an essential tool for hobbyists, engineers, and technicians working with electronic components.
2. Easy to Operate:The lcr diode capacitance esr voltage frequency meter features a user-friendly interface, ensuring simple and convenient operation even for beginners.
3. Attractive Design:The diode cap esr volt freq meter boasts a sleek and modern appearance, making it not only functional but also visually appealing on your workbench.
4. Dual Power Interfaces:Equipped with two power interfaces, Micro USB and Type-C, the diode capacitance inductance esr volt frequency tester ensures that power is always easily accessible.
5. Functionality and Versatility:The square wave generator adds to the versatility of this device, providing additional functionality for a wide range of electronic testing and measurement tasks.
Specification:
Certification: none
Origin: Mainland China
Model Number: GM328 Transistor Tester
Hign-concerned Chemical: None
Input voltage: DC 5V
Working voltage: about 30mA,

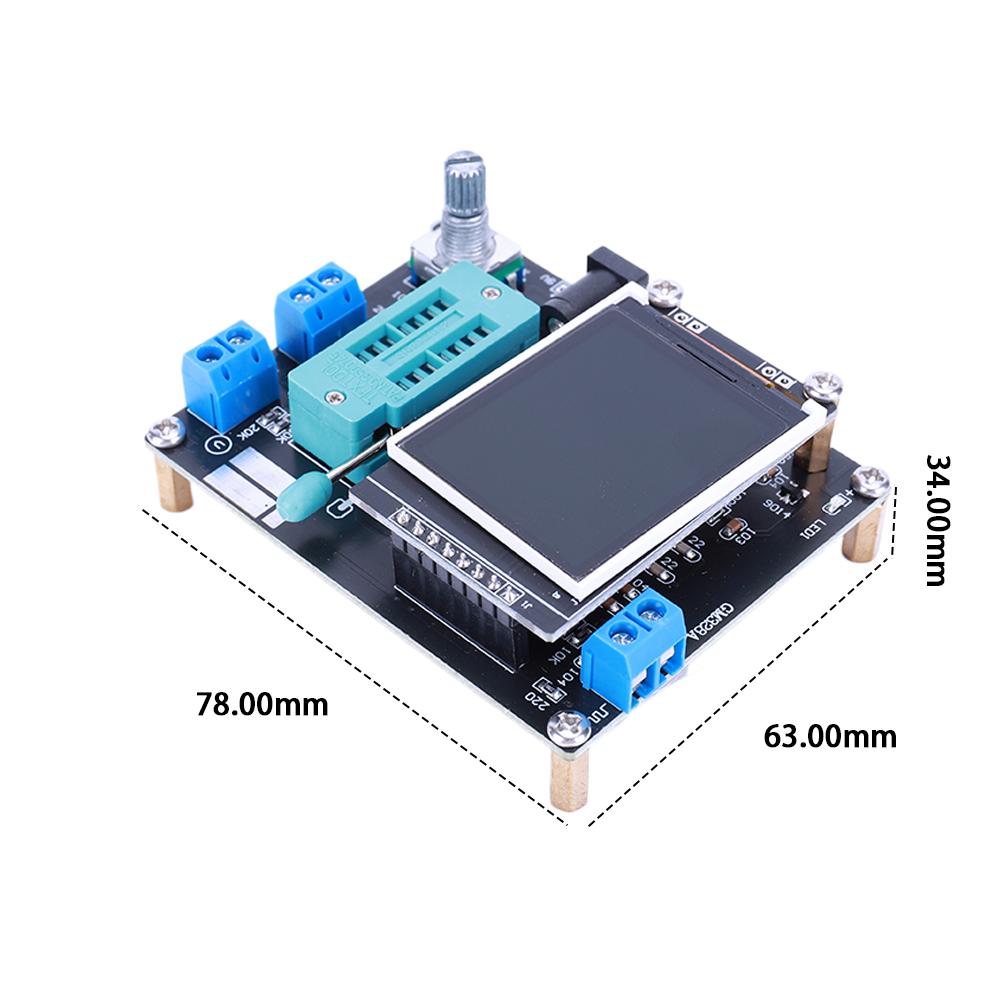

Product size: 78.00x63.00x34.00mm
Product size: 3.07x2.48x1.34inch
Transistor tester control
The tester is controlled by a rotary coding switch,
The rotary coding switch can have a total of 6 operations, short press, long press, left turn, right turn, press and hold left turn, press and hold right turn.
In the off state, short press once to turn on and start testing.
After a test is completed, if the device is not detected. Long press the switch or rotate the switch left and right to enter the function menu. After entering the function menu, you can select the left or right turn switch up and down in the menu item. To enter a function item, short press the switch once. When you need to exit a function, press and hold the switch.
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
1 X Transistor Tester
