Specifications:
Material: Stainless Steel
Color: Silver + Black
Gas Type: Natural Gas(NG)
Pressure: 2000Pa

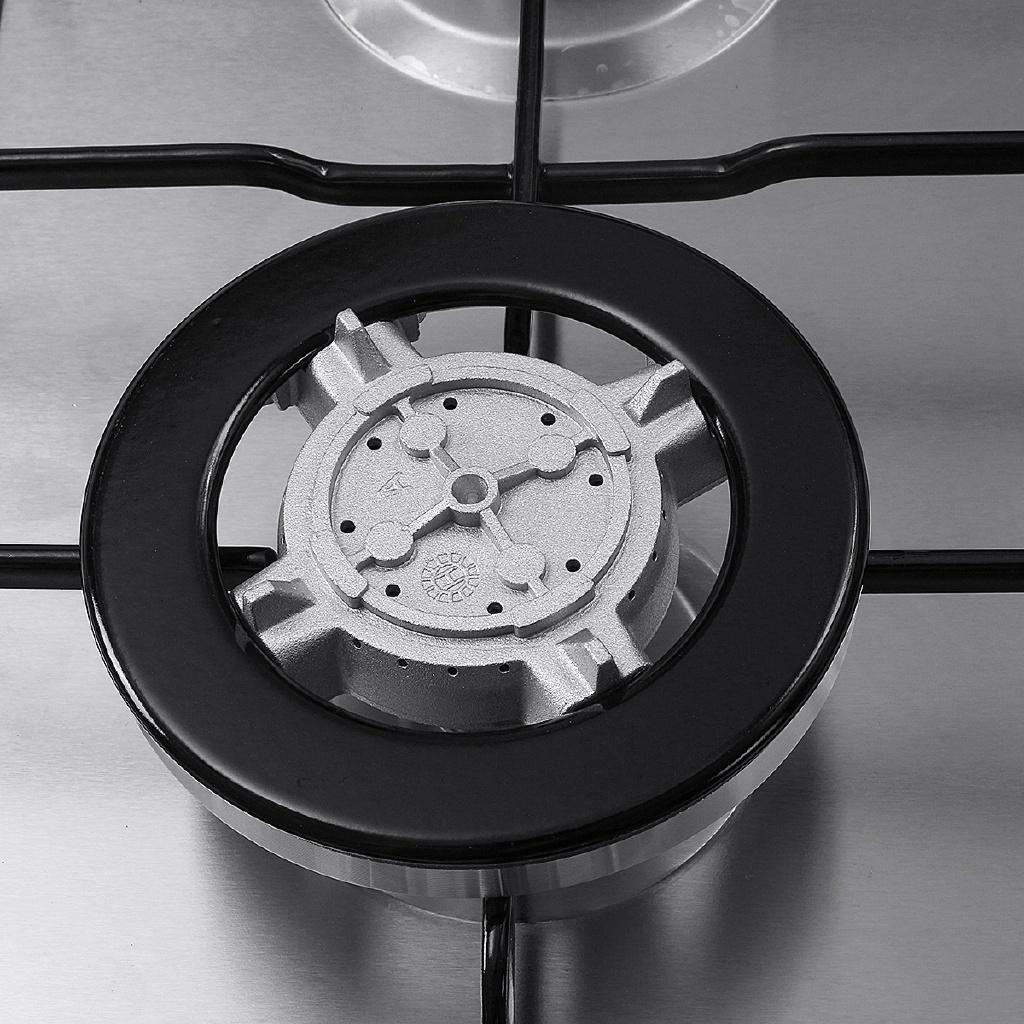

Burner: 120: 3.3kw; 75(x2): 1.75kw; 55: 1.0kw
Installation: Built-in
Size: (L)X(W) 58x50cm /22.83"x19.69"(appr.)
Hole Dimension: 55x47cm /21.65"x18.50"(appr.)
Features:

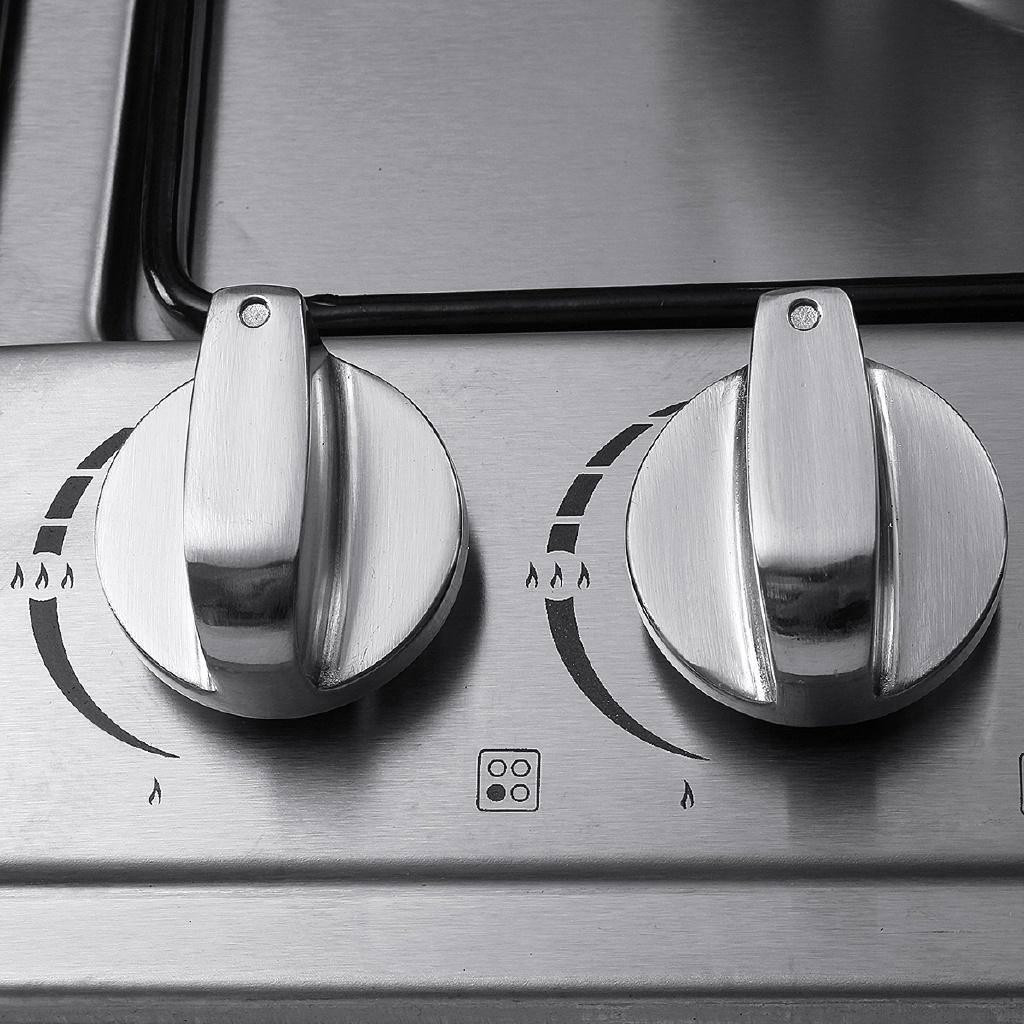

● Elegant brushed stainless finish control knobs.
● 201 level S.S brushes hob with enamel pan support.
● Easy to clean stainless steel top construction.
● A must for any modern kitchen.
Operation instruction and suggestion:
Using this appliance should follow some elementary regulations, ESPECIALLY:
- Do not touch the electrical appliance with wet hands or feet.
- Do not operate the appliance without wearing shoes.
- Make sure children should be far away from the appliance and should not use the appliance without anybody watching on.
Important:
Make sure that the place you select provides easy access to electricity or gas for the unit to operate and should provide adequate ventilation if use the appliance for a long time, open the window or install a ventilating hood at the same time add the function.
Installation:
(1)Remarks
In order to install built-in gas hob, you should first put the template on the cooktop, then the appliance in after.
REMENBER:
The free space under the appliance and over it should not be less than 30mms.
From wall to the appliance, the distance should not be less than 35mms.
If a ventilating hood is provided distance from the working top to the bottom of the hood should not be less than 650mms.
For not built-in structure design there should be a heat insulation divide between the appliances bottom and other units.
For built-in structure design the distance between the appliance and the oven should not be less than 30mms, both should not be connected to gas individually.
Note:
- Before installation, maker sure gas type used must be in accordance with the required gas type, mixing with other gas stove is forbidden.

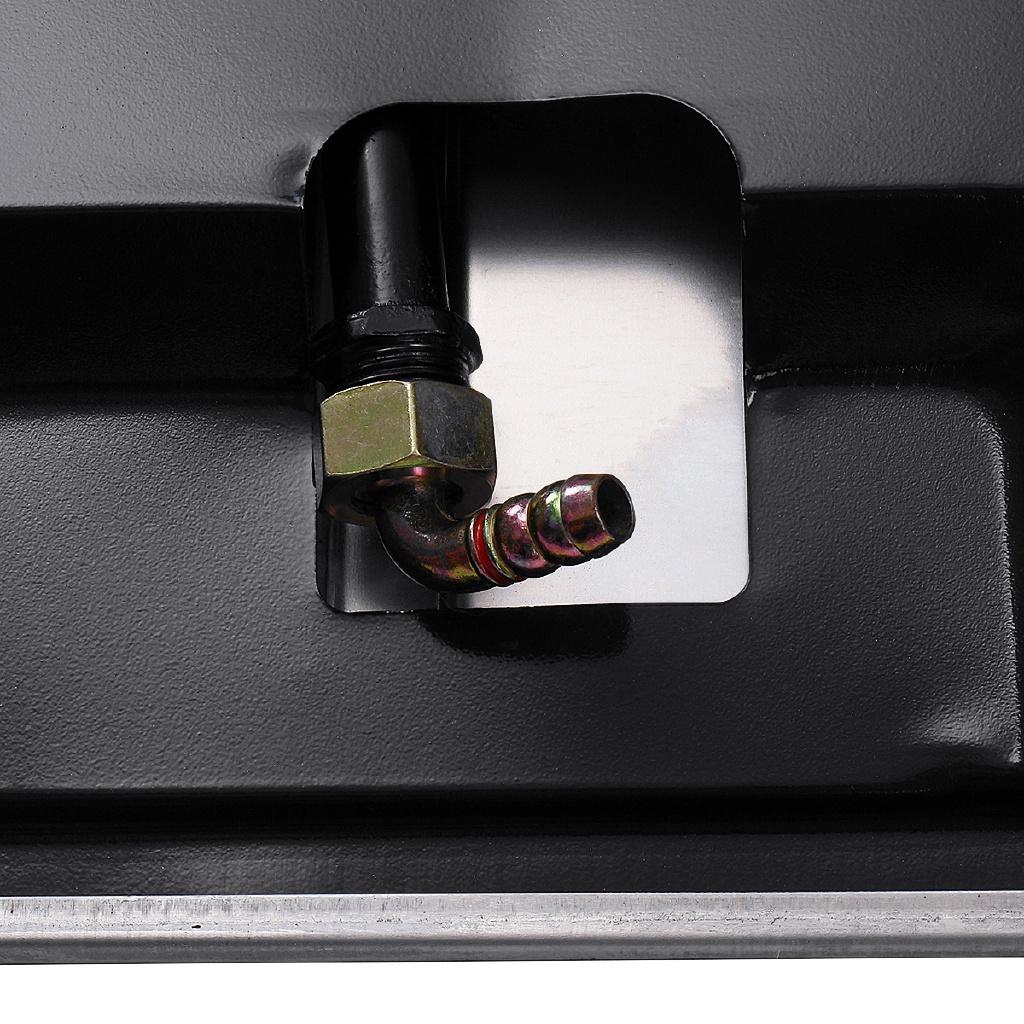

- Please check to make sure all connections are tight, check for leakage in your tank or the connecting hose by using soap and water around the connections.
- If rubber hose is used, it should be of minimum practical length so as to avoid bending. periodic inspection is recommended for added safety.
- Please read the user manual carefully before your operation.
Cleaning and maintenance:
- Clean the appliance after the unit had cooled off, especially for the porcelain enameled part.
- Do not leave alkaline with acid radical or chlorine radical important.
- Be sure to pull out the electric cord from its service outlet.
Package Included:
1 x Cooktop
4 x Screw Kits
1 x English User Manual
(excluding other decorations)
Please feel free to contact us if you have any questions. Hope a nice day!
Notice:
Please allow slight deviation of measurement due to manual measurement.
Due to different producing batches, product details might be a little different.
