1.This item has new two-way large power silicon controlled rectifier and the current can be up to 80A, which is a good solution to over-current of electric stove wire caused by low resistance during cooling.

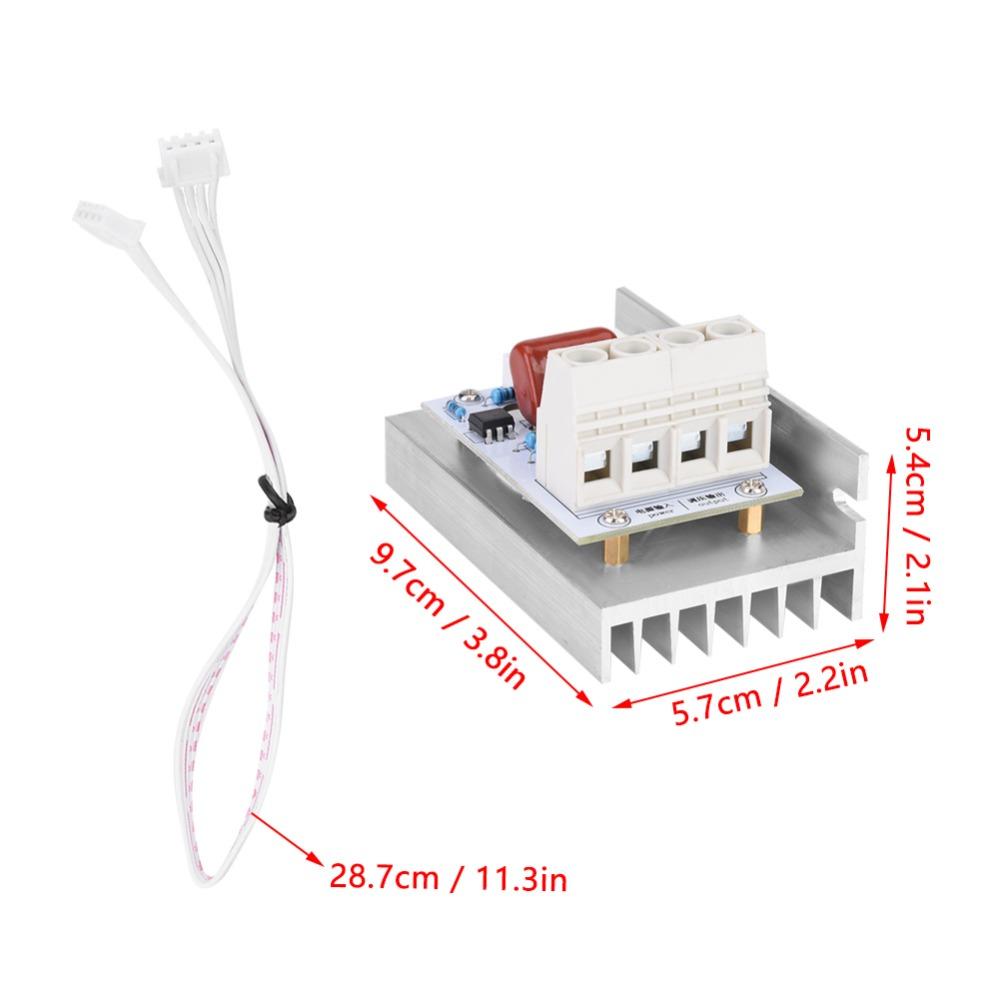

2.AC 220V input/output, controller size 9.7*5.7*5.4cm / 3.8*2.2*2.1in, panel size 7.5*6*1.7cm / 3*2.4*0.7in, Panel Screw Hole Spacing 6*4.5cm / 2.4*1.8in, compact size and easy installation

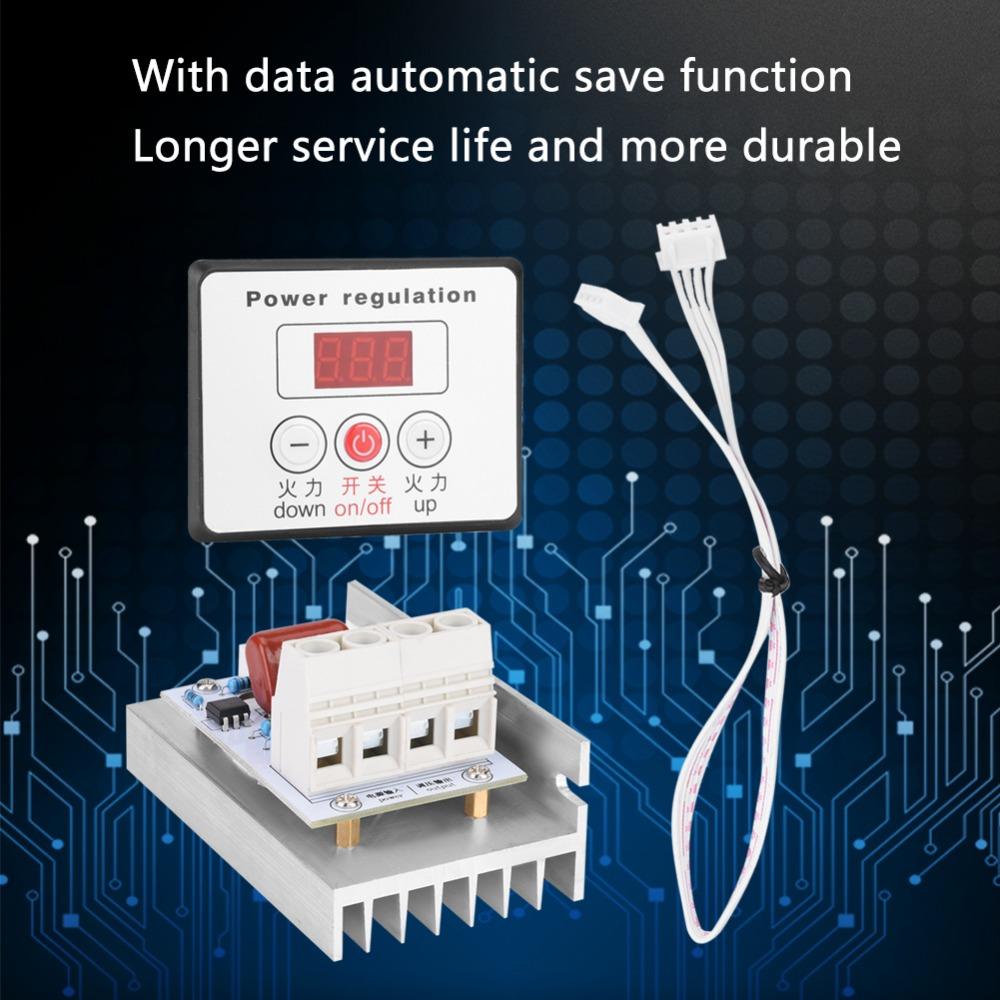

3.This voltage regulator is adjusted with button which is much more stable than potentiometer. It can easily adjust the output voltage on a scale of 0-100% (nonlinear) to power electric device

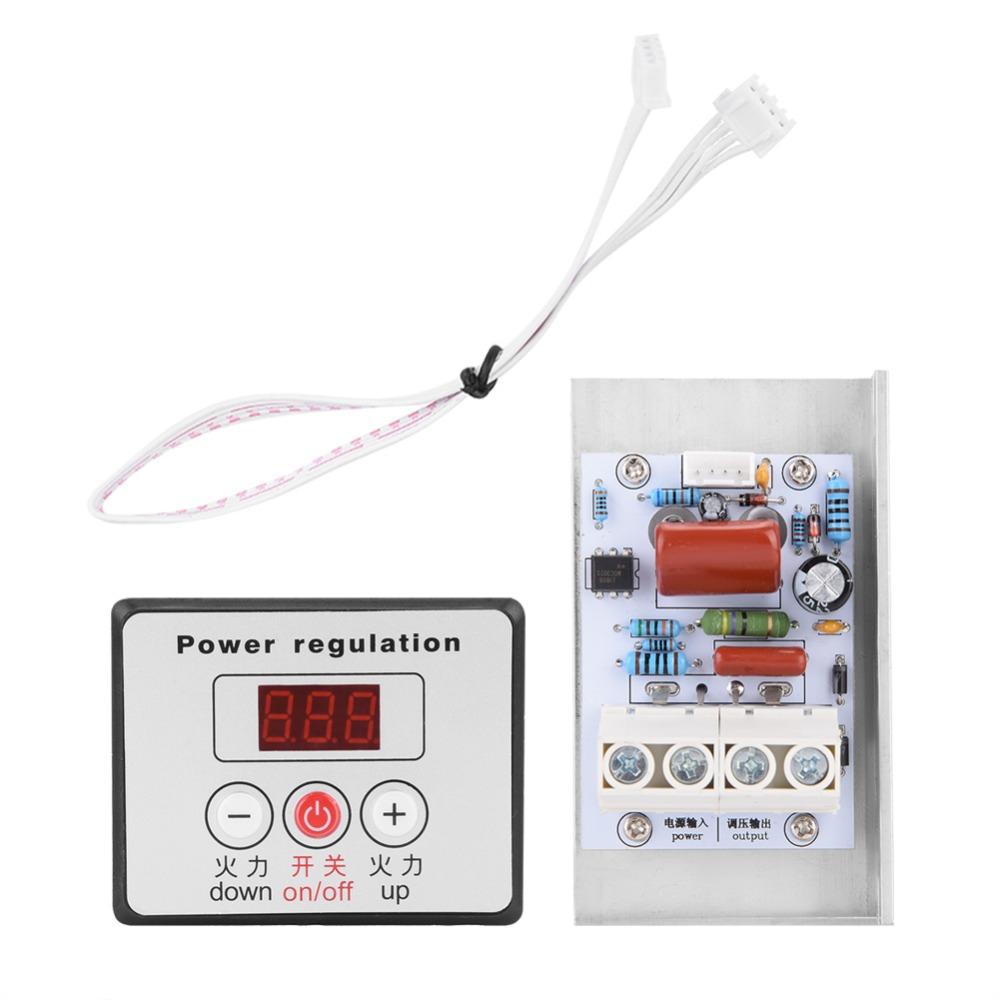

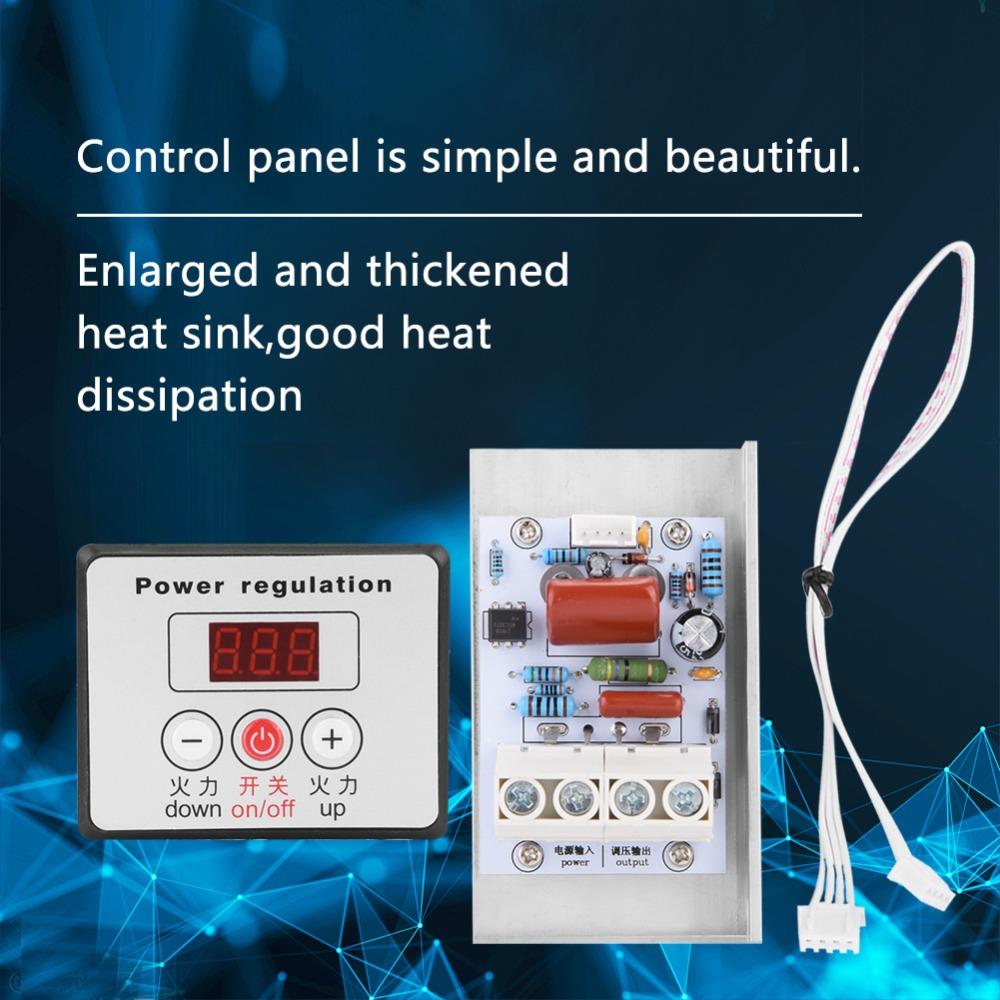

4.Voltage regulator has wave voltage absorbing circuit and effective protects large power silicon controlled rectifier, longer life and more durable and designed with large and thick heat sink that would enhance heat dissipation.
5.Could be widely used as heat controller on electric stoves, water boilers, light dimmer on lamps, speed controller on small motors, or temperature controller on electric soldering iron, etc. Specification:
Voltage:AC 220V
Maximum Power: 10000W(instantaneous limit power for resistive load; for long time use, 5000W or lower is recommended)
Controller Size: 9.7*5.7*5.4cm / 3.8*2.2*2.1in
Panel Screw Hole Spacing: 6*4.5cm / 2.4*1.8in

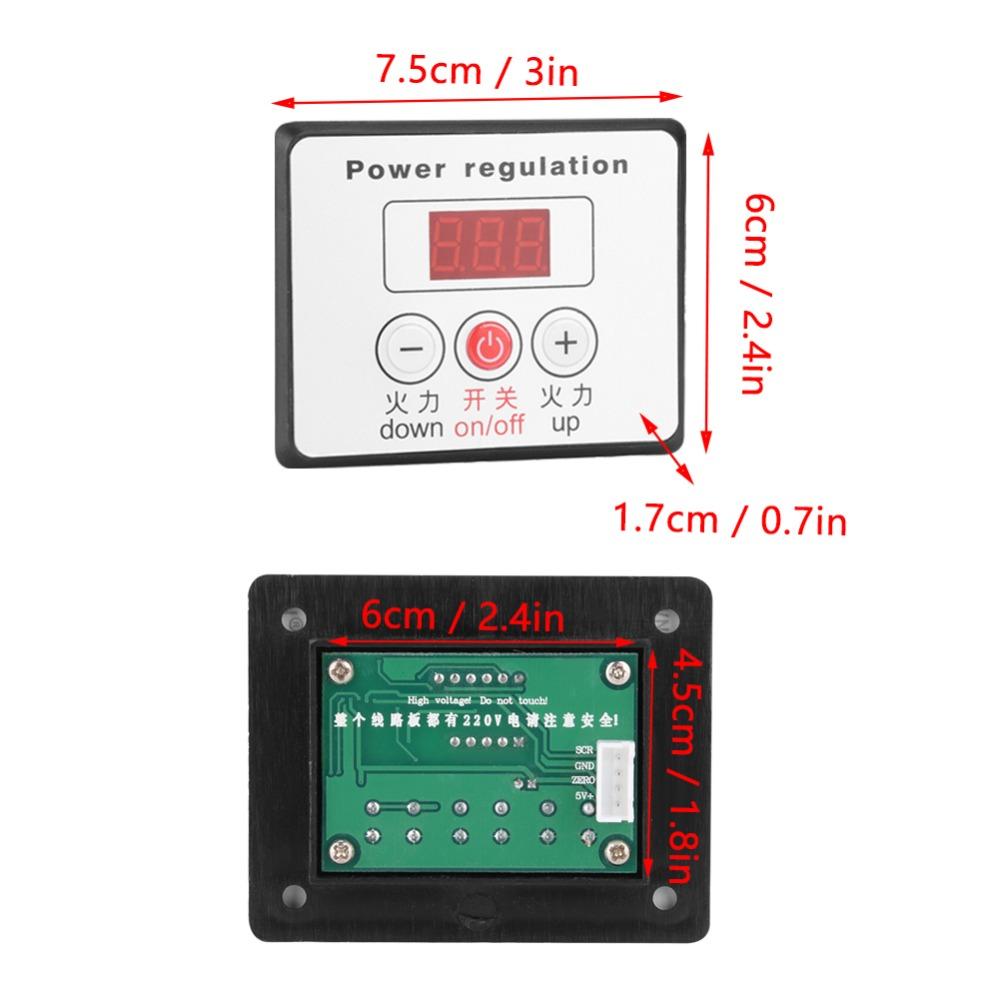

Panel Size: 7.5*6*1.7cm / 3*2.4*0.7in
Voltage Adjustment: 0-100% (nonlinear)
Weight: 210g
Applicable scenarios: water boiler temperature control, light dimming, small motor speed regulation, electric soldering iron constant temperature control, etc
Package list:
1 * SCR Controller
1 * ABS Panel
1 * Cable
Note:
1, AC input, AC output, output voltage is lower than(or equal to) input voltage; voltage can be adjusted only when connected to load; mainly used for resistive load(e.g. heating wire, incandescent light bulb).
2, It can not replace electric bicycles' battery charger, nor drive electric appliances which use switch power supply (such as 110V TV, speaker, refrigerator, air conditioner, rice cooker with a computer), and cannot drive induction cooker, energy saving lamp.
3. Due to the difference between different monitors, the picture may not reflect the actual color of the item.
4. Please allow slight dimension difference due to different manual measurements. Thank you for your understanding.
