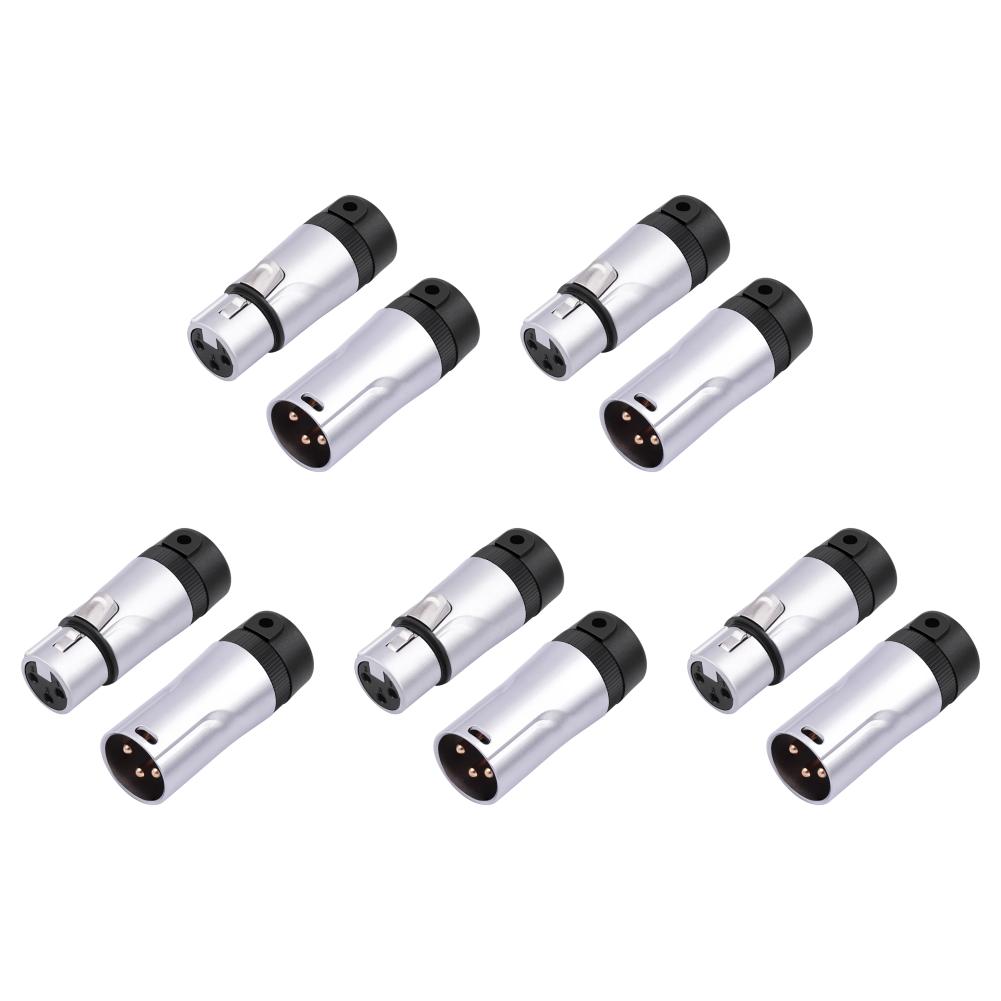

Male/Female Compact XLR Microphone Solder Adapter Adjustable 90° Right Angle 3Pin XLR Solder Connector Gold Plated Audio Mic Microphone DMX Plug Jack Socket
Feature:
1. Durable Compact XLR Microphone Solder Adapter:Featuring copper gold-plated interfaces and a thickened zinc alloy shell, this compact XLR microphone solder adapter is designed for enhanced durability and longevity.
2. Precision 3pin XLR Solder Connector:This compact male 3pin XLR solder connector is perfect for thin XLR/microphone cables with diameters less than 3-6.5mm, ensuring a precise and secure connection.
3. Adjustable Angle XLR Audio Plug:The 90-degree right-angle XLR audio plug allows for easy cable adjustment to the desired angle by simply loosening the set screw, providing flexibility in tight spaces.
4. High-Fidelity XLR Connector Plug:This compact 3-pin male XLR connector plug features gold-plated pins for stable, high-fidelity audio transmission, ensuring superior sound quality.
5. Reliable 3 Pin XLR Ends:With gold-plated contacts, these 3 pin XLR ends guarantee a reliable and high-quality connection, making them ideal for professional audio applications.
Specification:
Origin: Mainland China
Gender: Male
Item Type: Hybrid Connectors
Hign-concerned Chemical: None
Style: XLR male, XLR female, XLR male + XLR female (optional)

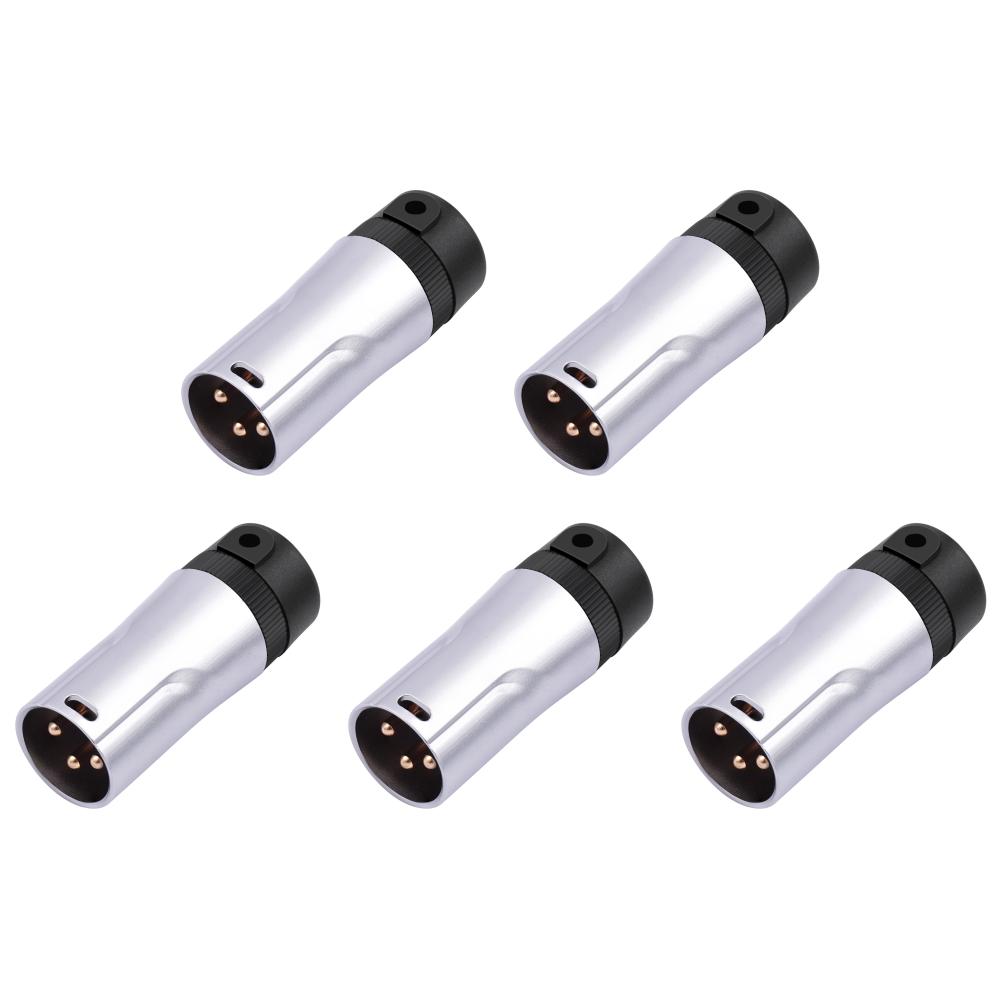

Interface type: 3-core XLR male

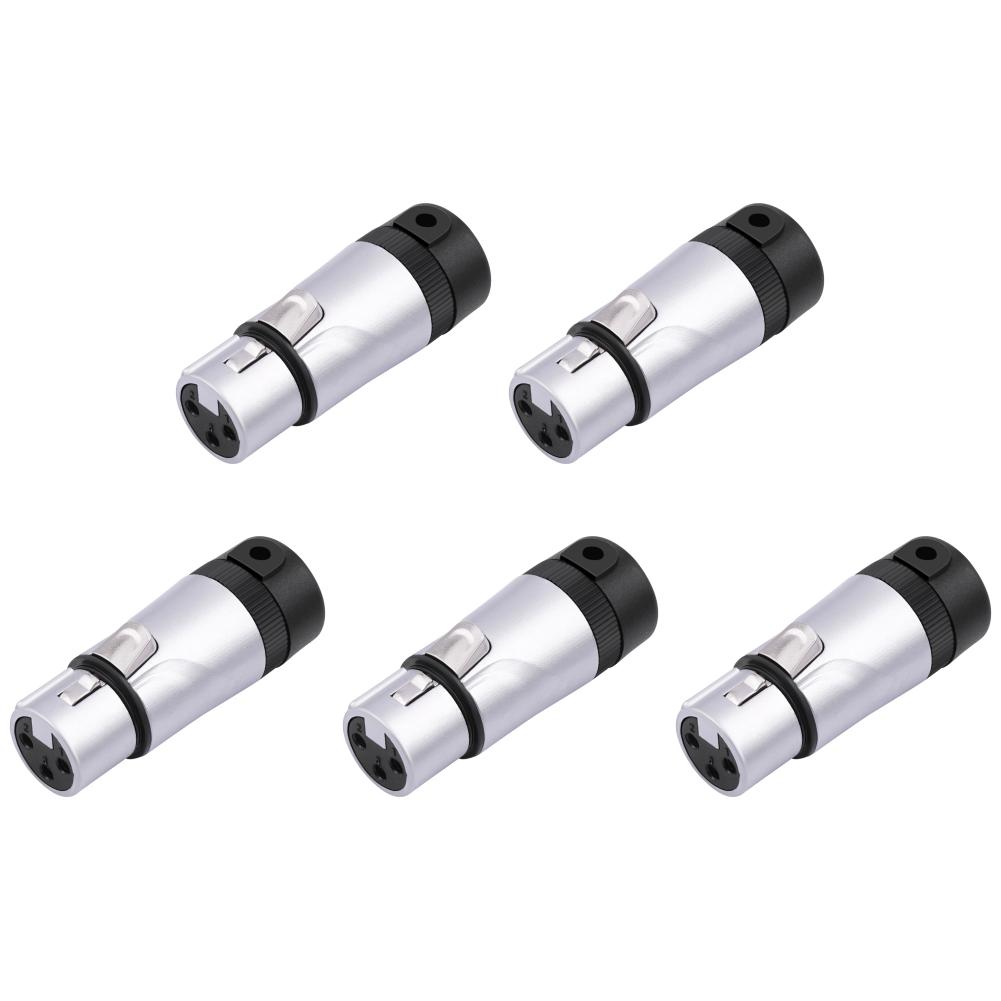

3-core XLR female
Material features:
The plug shell is made of thickened zinc alloy, and the connector is copper-plated gold. The tail is made of plastic.
This plug adopts a side outlet design, and after assembly, it can also be adjusted at a small angle by rotating the tail part. It is very suitable for devices with small back socket space
The diameter of the tail rubber sleeve is 3mm, which can be used for 3.0-5.0mm wires. When the rubber sleeve is removed, the diameter is 7mm and can be used for 5.0-6.5mm wires.
Product use: Suitable for making various xlr microphone cables and DMX cables. Microphone cable, etc. This model requires
Product size: XLR male 52*19*19mm, XLR female 49*19*19mm
Weight: XLR male 26.8g, XLR female 28.6g
Installation precautions:
Since this plug uses side outlet, you need to hold the tail plastic part and rotate it counterclockwise to remove the tail cover before tightening the plastic back shell. After tightening the plastic shell, determine the angle and press the tail cover tightly. When assembling, be sure to remove it first, then modify it, and then tighten the shell. If you do not remove the tail cover and tighten it directly, the wire will rotate multiple times while the plug is fixed, which may cause the wire to be twisted off or the welding part to fall off.
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
1/2 PCS X Compact XLR Microphone Solder Adapter
