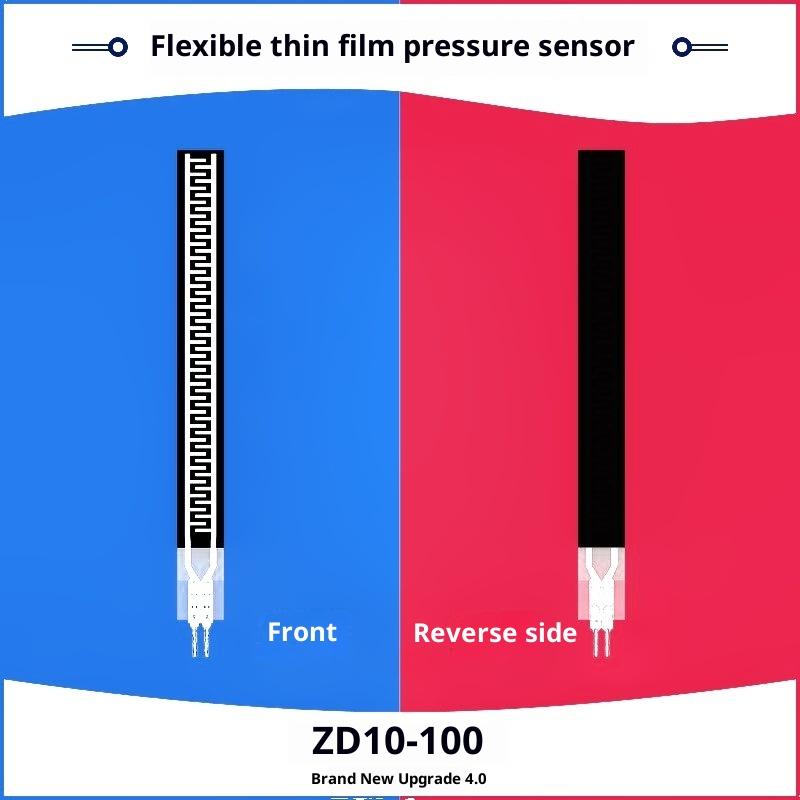

1Pcs High-Precision And High-Sensitivity Force Sensor Zd10-100 500G Resistance Type Flexible Thin Film Pressure Sensor

Features: The flexible sensor has the characteristics of flexible ultra-thin, and extreme speed response, etc. Waterproof and pressure sensitive dual function Highly sensitive flexible nanometer materials can realize highly sensitive detection of pressure. High sensitivity and long service life Application: Smart home, medical electronics. When sensor detects outside pressure, the resistance of sensor will change. Pressure signal can be converted into a corresponding electrical signal output using simple circuit Specification: Model: ZD10-100 Length: 100 mm/3.9in Width:10mm/04in Range: 500g Thickness: ≤ 0.3mm Response point: ≤ 50g Initial resistance:>10M Ω (no load) Test voltage: typical dc3.3v Durability: more than 1 million times Response time: less than 1ms Recovery time: less than 15ms Working temperature:- 20℃~ 60℃ EMI: no ESD: not sensitive Material: Metal Package list: 1 x Pressure Sensor Note: 1. The color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness. Please refer to the actual product received. 2. Please allow slight manual measurement deviation for the data. The merchant warrants that their products comply with all applicable laws, and are offered only if they comply with Joom's policies and EU Product Safety and Compliance laws.
