Oscilloscope Dso150 200Khz Diy Kit

DSO Shell Digital Oscilloscope (DSO150) for DIY assembly, requires soldering THT components.

DSO150-SHELL is a complete DIY KIT/DIY kit that allows you to build a mini digital oscilloscope.

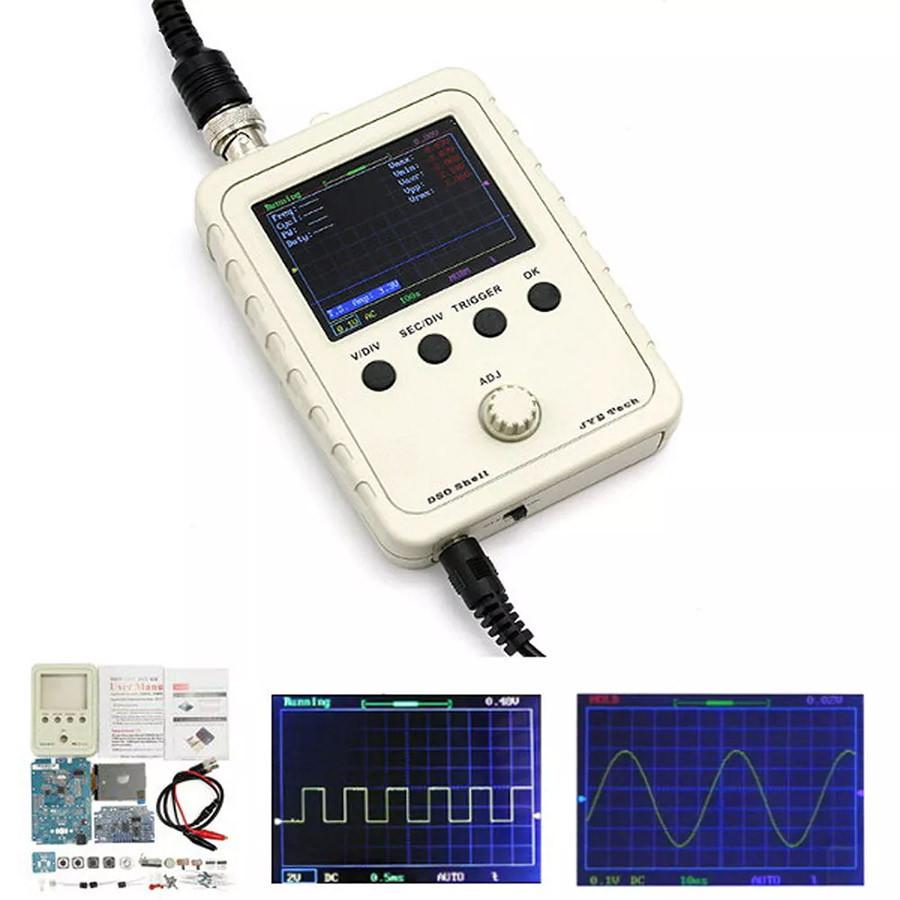

This miniature 1-channel digital oscilloscope is equipped with a 2.4-inch color TFT display with a resolution of 320x240.

Analog bandwidth is 200kHz at a maximum input voltage of 50V peak.

The DSO150 oscilloscope can be powered by a 9V battery (6F22) or an external 9V DC source.

Small dimensions combined with the option of battery power make the DSO150SHELL an ideal portable digital oscilloscope.

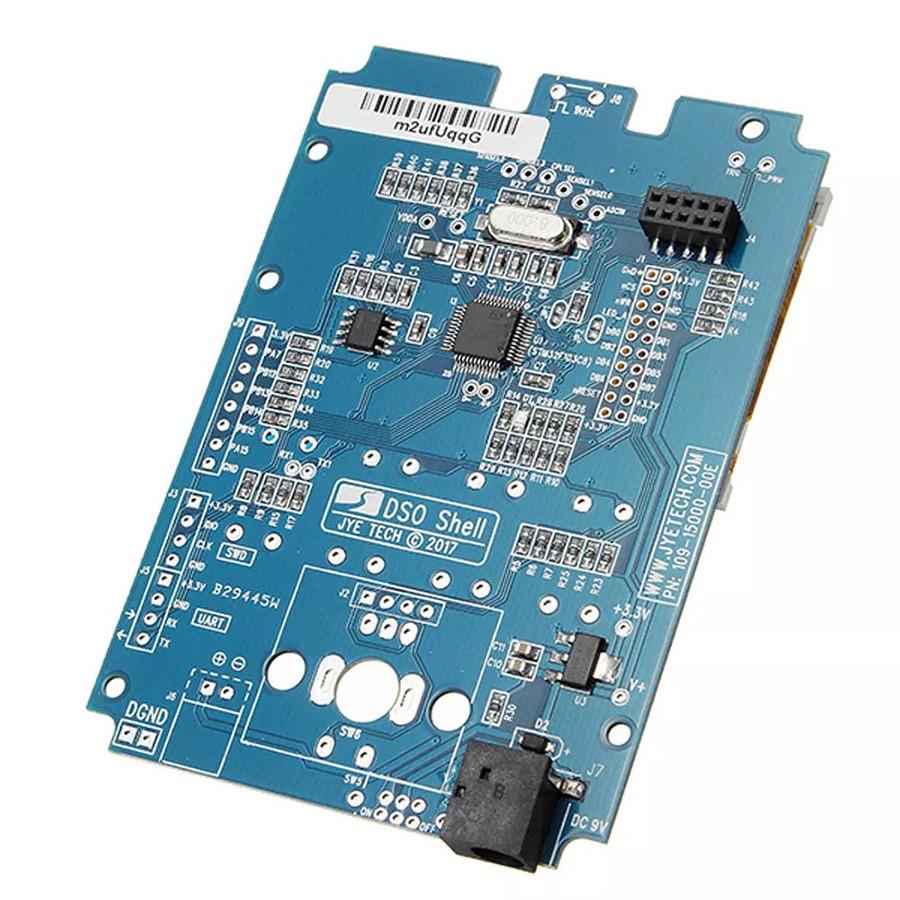

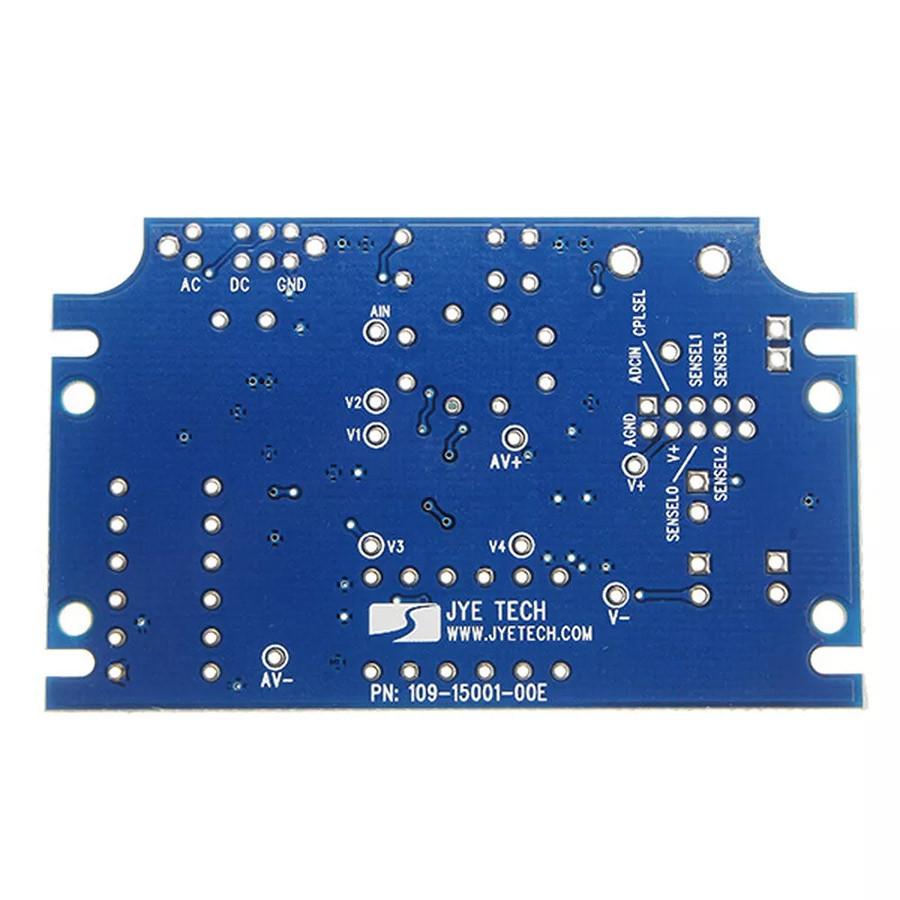

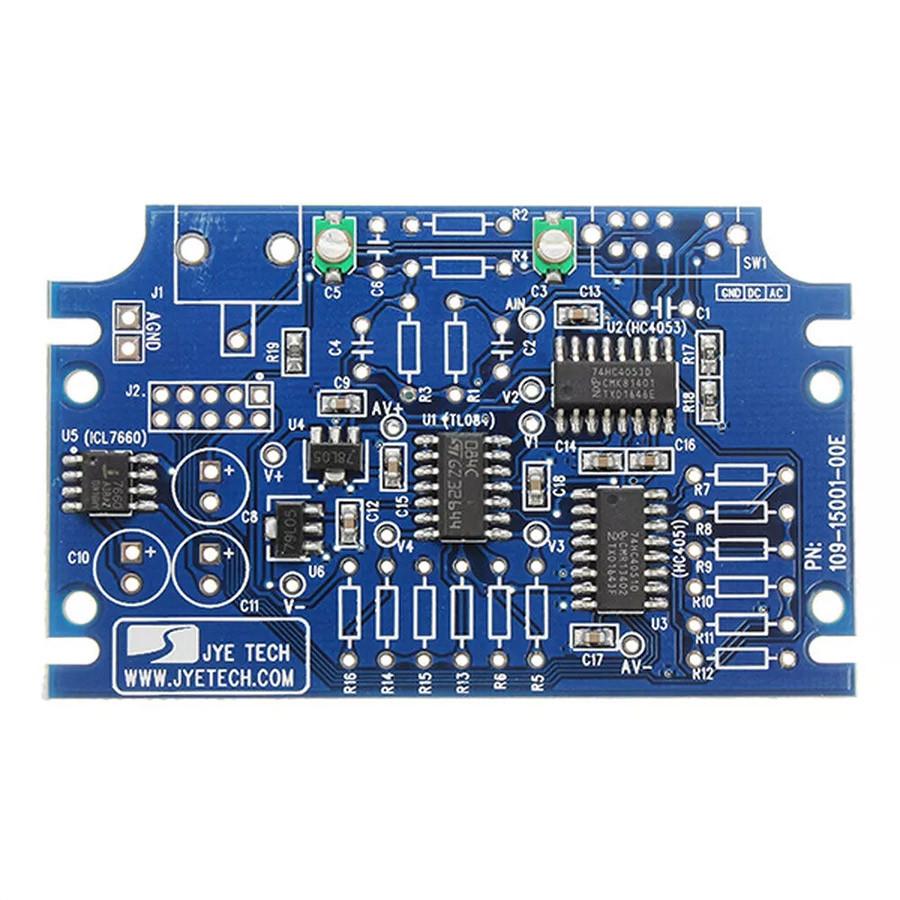

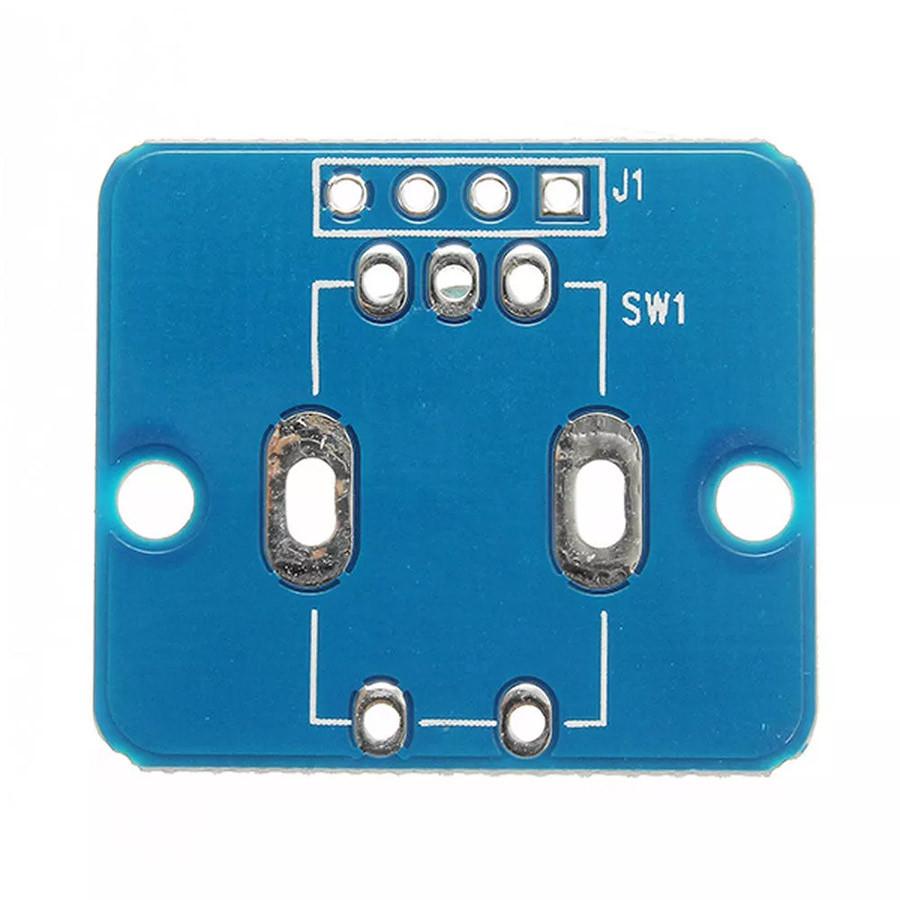

All SMD components are already soldered, the owner only needs to solder the through-hole components and assemble the oscilloscope into the included housing.

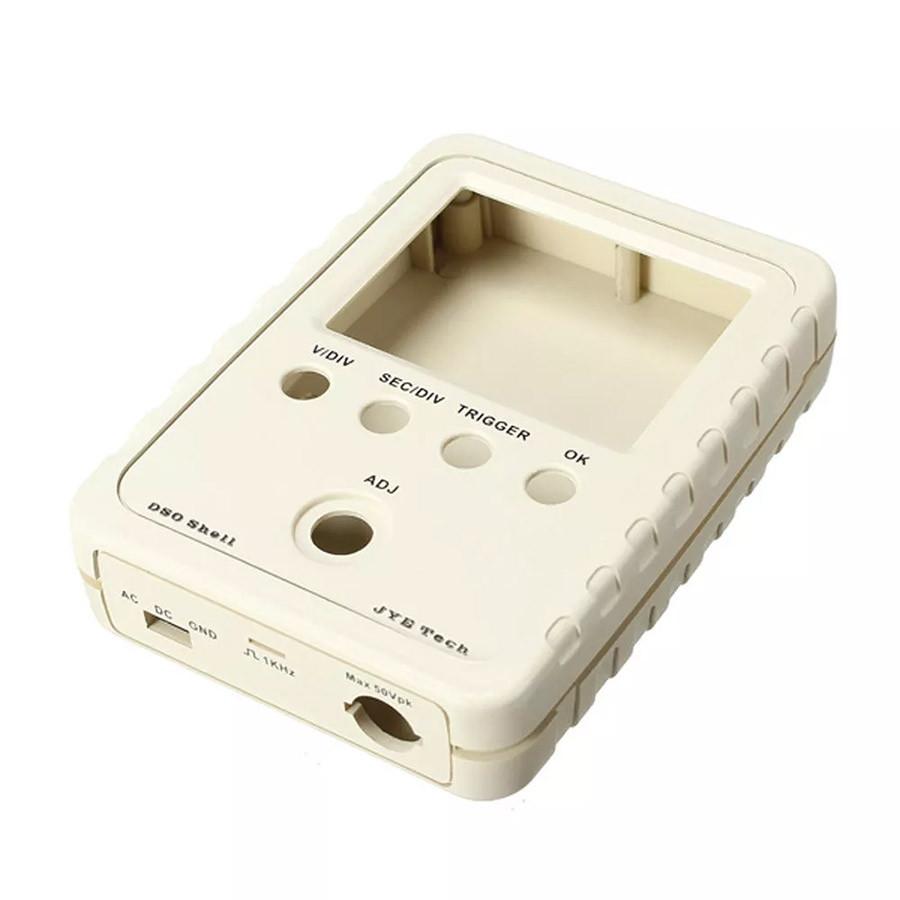

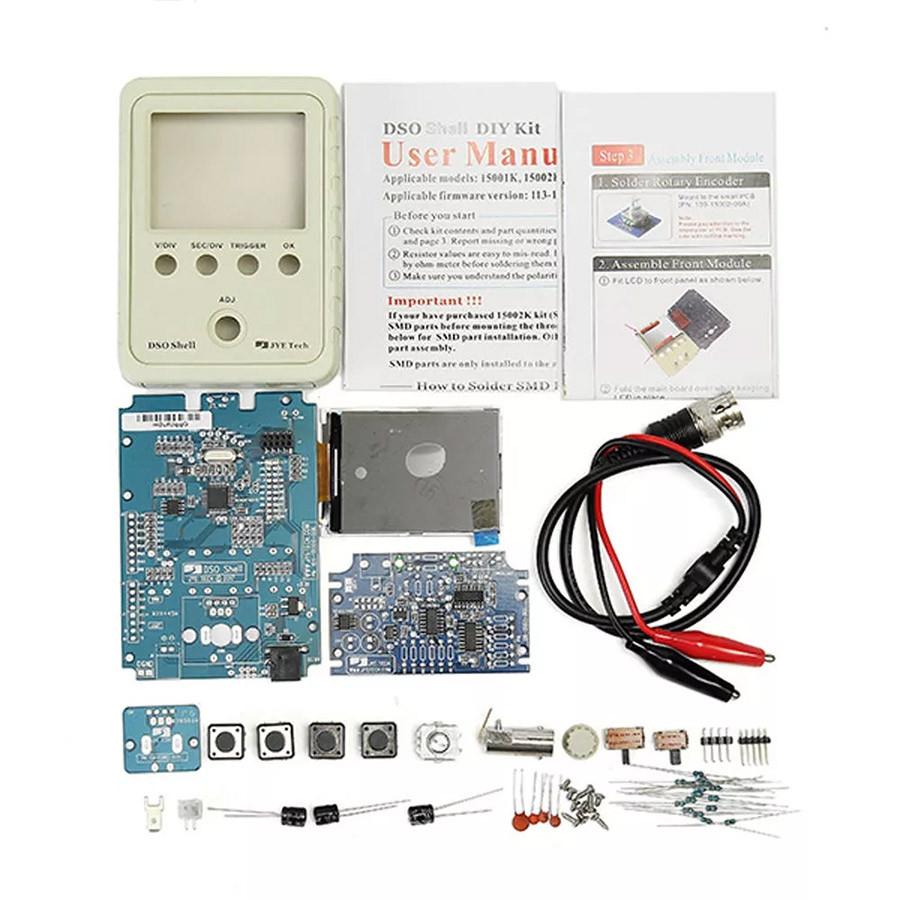

• Dedicated plastic housing

• PCB with soldered SMD components

• 2.4-inch TFT display with a resolution of 320x240

• Set of through-hole components and sockets

Technical data of the DSO150-SHELL oscilloscope:

• ARM Cortex-M Processor

• Sensitivity: 5mV / div - 20V / div

• Accuracy: 12Bit

• HOLD Function

• Sampling Buffer Depth: 1024 Bytes

• Input Impedance: 1MΩ

• 2.4' Color TFT Display

• Maximum Real-Time Sampling Rate: 1Msps

• Maximum Input Voltage: 50Vpp (1:1 Probe), 400Vpp (10:1 Probe)

• Supply Voltage: DC 9V

• Analog Bandwidth: 0 - 200kHz

• 1 x DIY DSO Shell (DSO150) Oscilloscope Digital

• 1 x EN Manual

• Motherboard Schematic

• Analog Board Schematic

• How to use DSO 150

• Source files
