Feature:
1. Stable Performance: Permanent magnet motor, strengthened magnetic tile, no demagnetization, increased torsion,with D shaped output shaft.
2. Strong Conductivity: Pure copper wire motor and motor configuration, the stator and rotor adopt pure copper coils, strong conductivity and reduced resistance.
3. Features: The operating voltage is DC24V, which can be forward and reverse rotation, smoother movement, large torsion, low noise, and long life.
4. Material: Gears are made of low carbon alloys. After carburizing and quenching, they have a wear resistant surface and a sturdy heart to ensure the service life of the reducer.
5. Wide Application: Can be used in smart homes, automobiles, nursing, robots, electronic locks, industrial automation and other fields.
Specification:

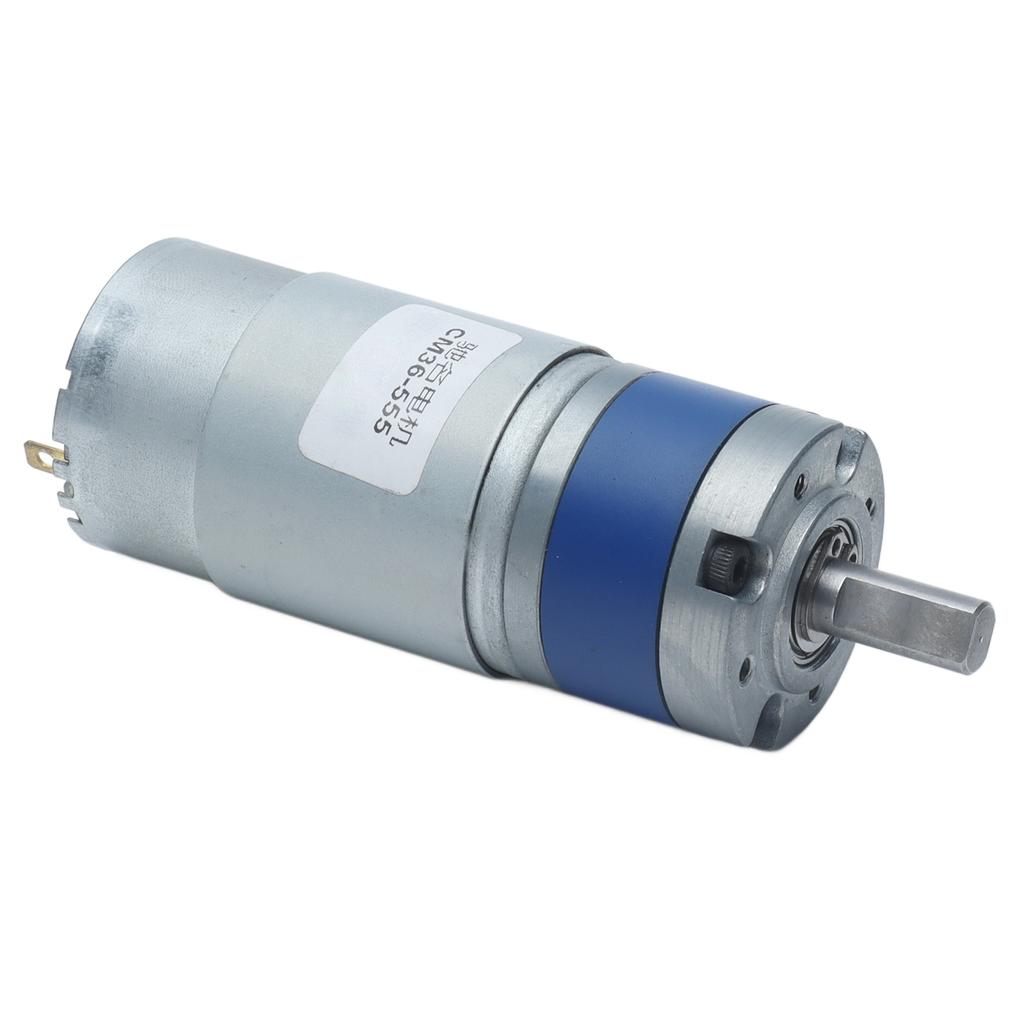

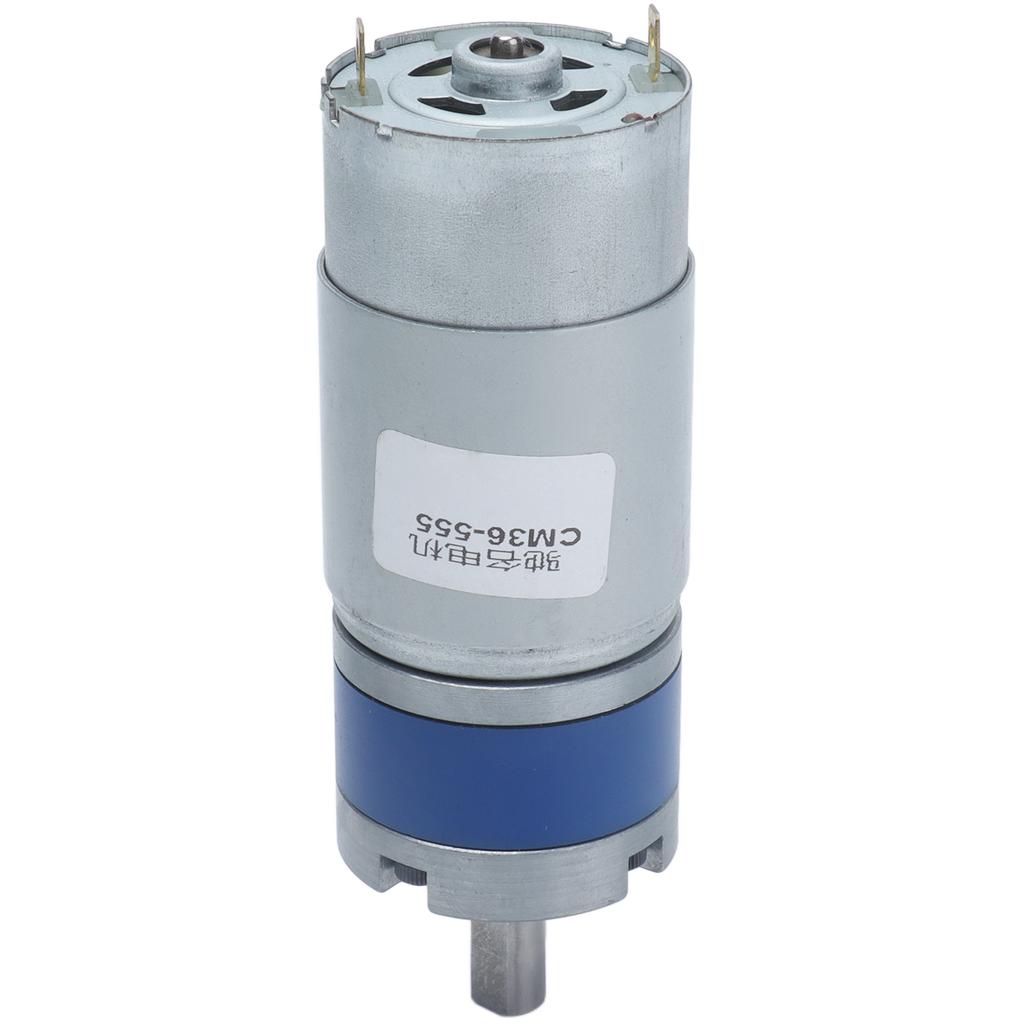

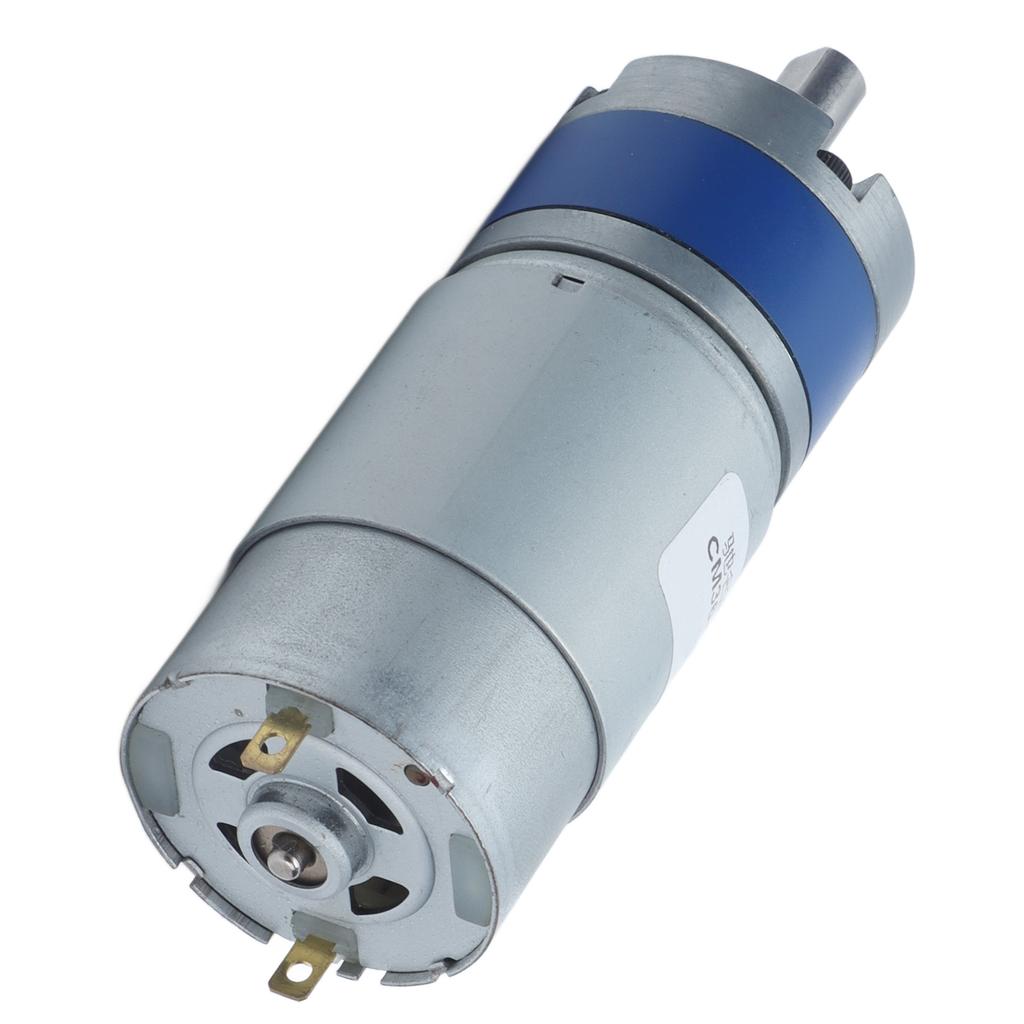

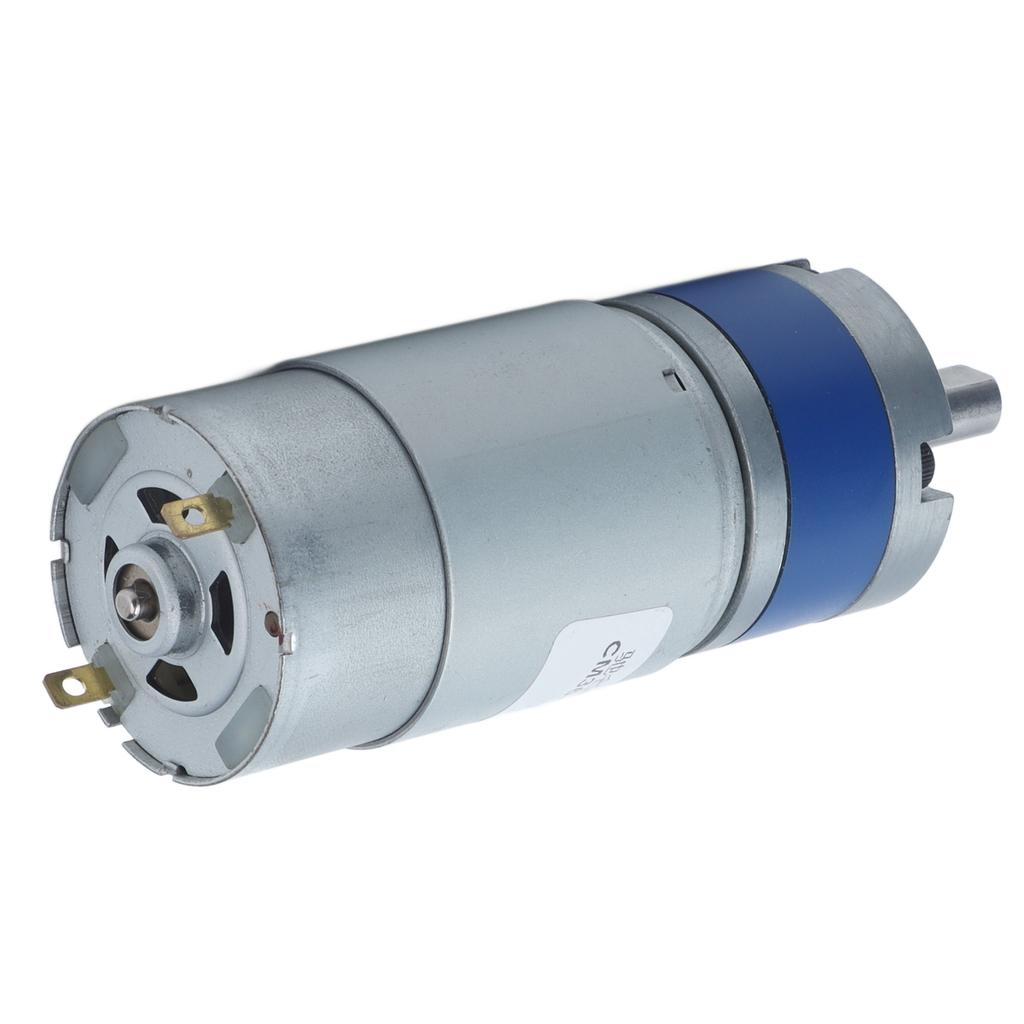

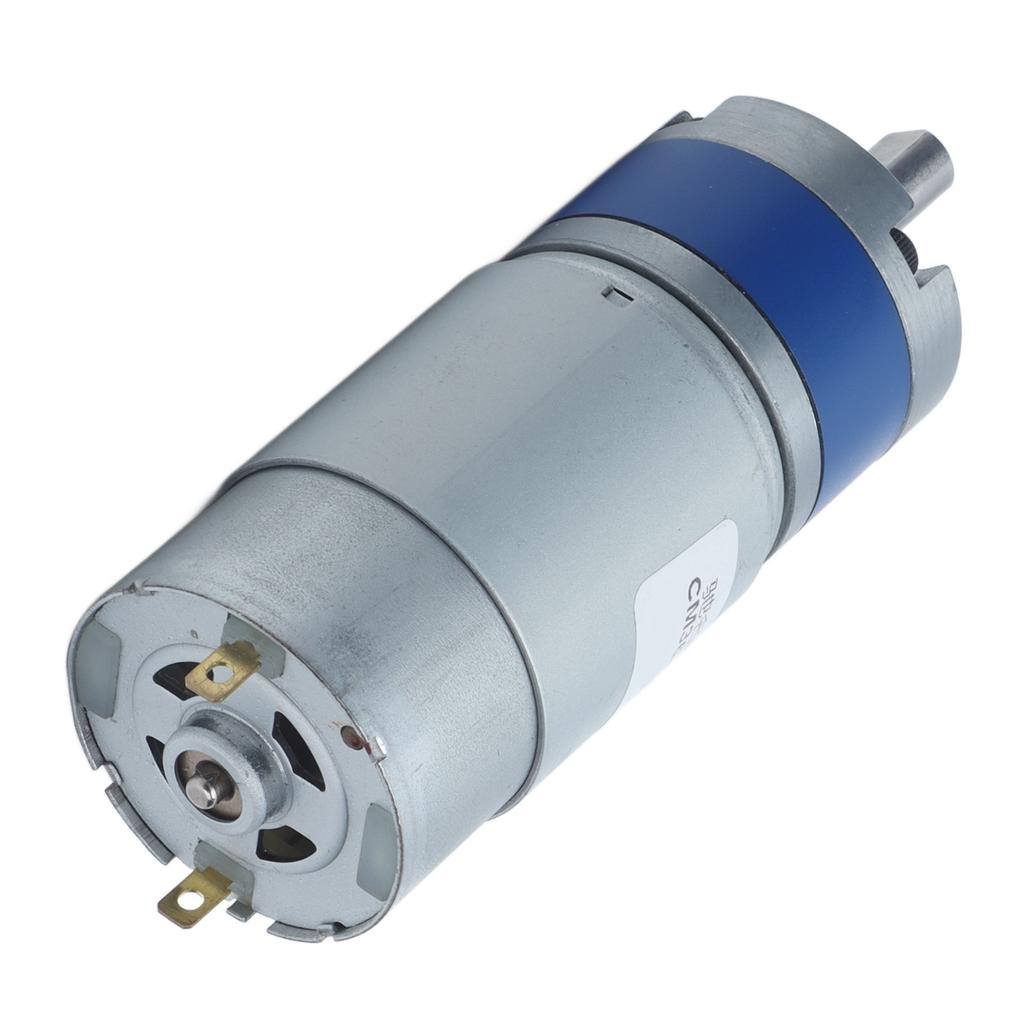

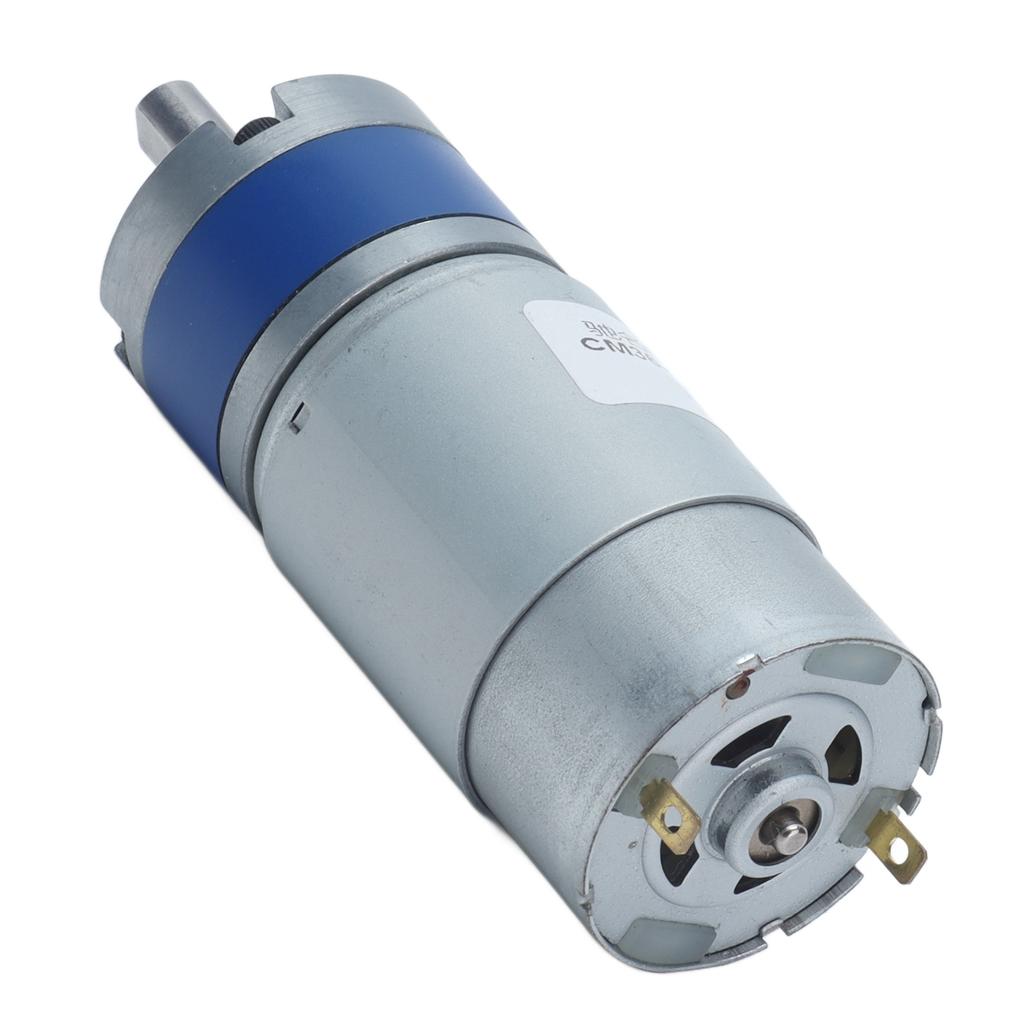

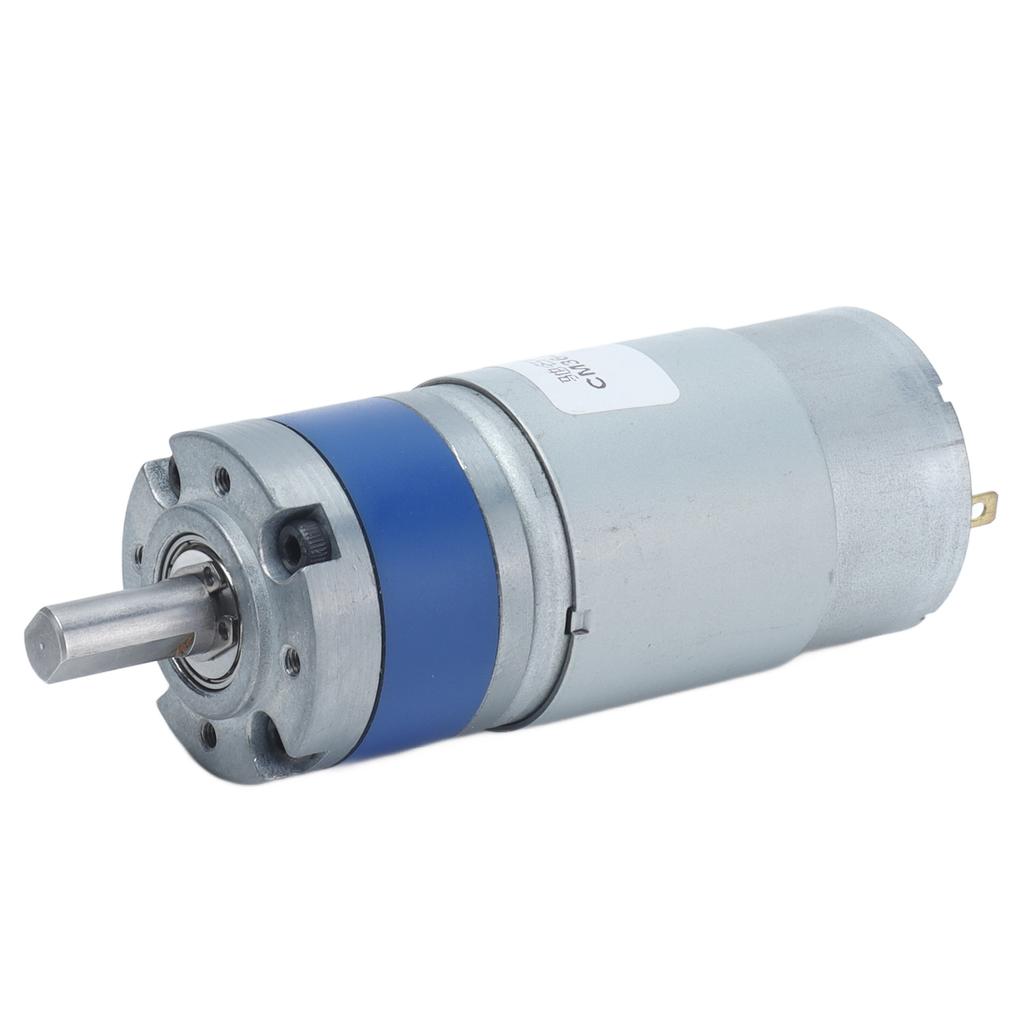

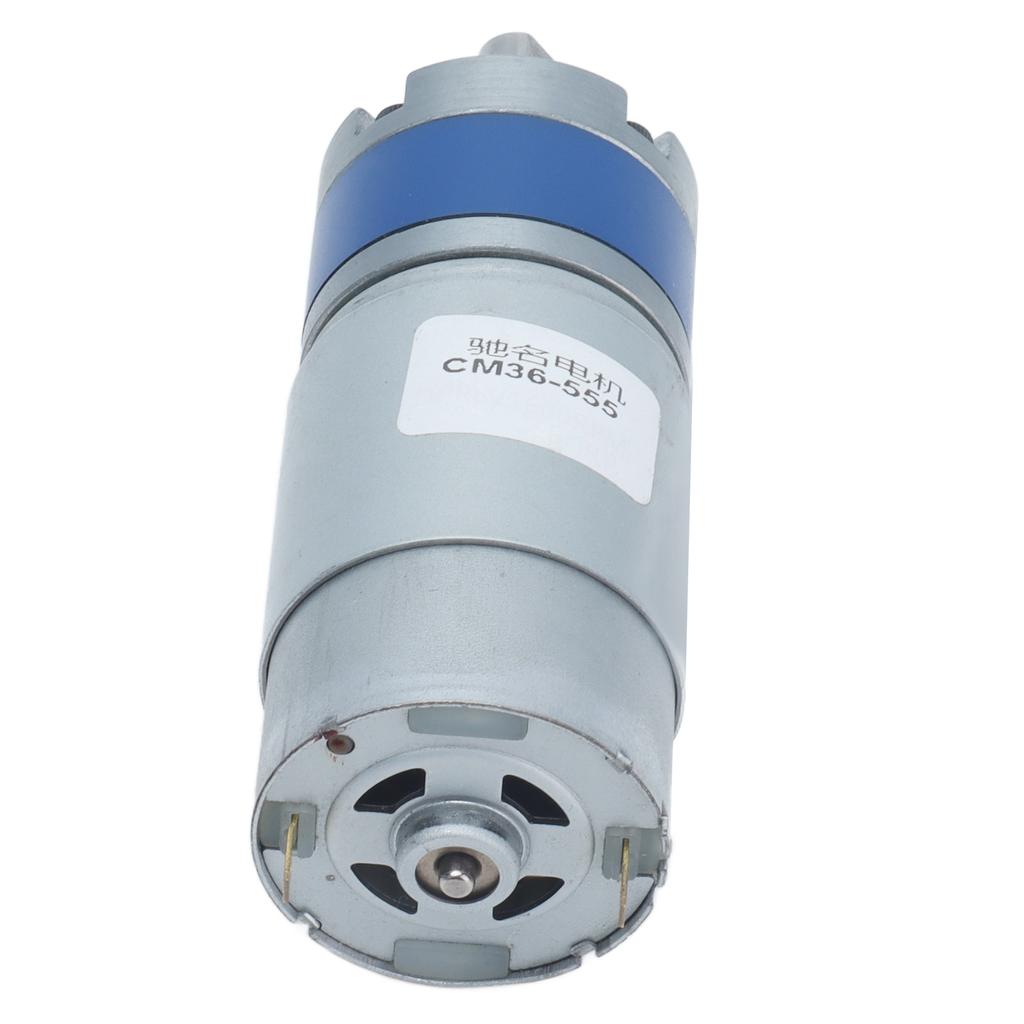

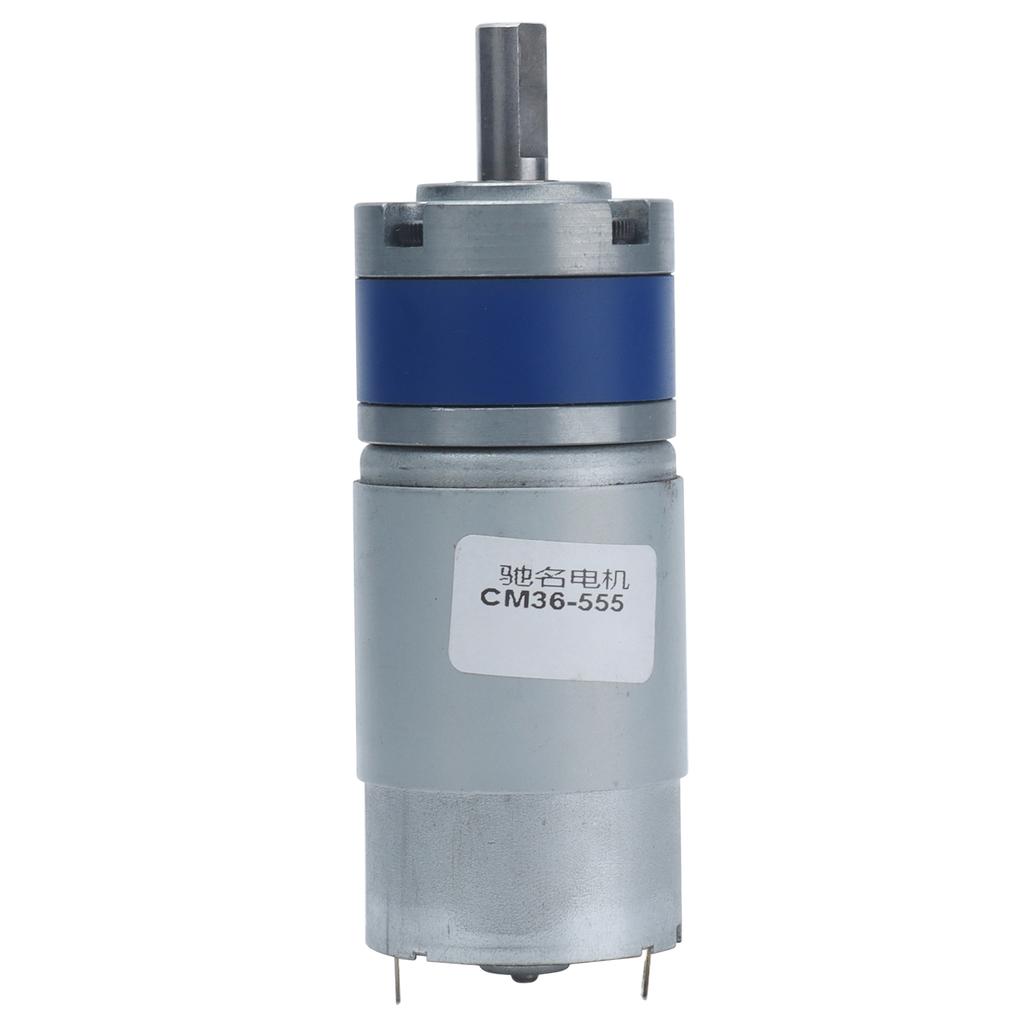

Item Type: Planetary Gear Motor Reduction
Material: Red Copper, Low Carbon Alloy, Magnet
Model: CM36 555
Working Voltage: DC 24V
Shaft Length: Approx. 17.5mm 0.7in
Shaft Diameter: Approx. 8mm 0.3in (D Shaped Shaft)
Motor Diameter: Approx. 36mm 1.4in
Direction: CW, CCW
Uses: Can Be Used in Smart Home Appliances, Smart Homes, Office Automation, Automobiles, Treatment, Care, Robotics, Electronic Locks, Industrial Automation and Other Fields
No Load Speed r min
1600
1200
430
230
120
85
60
45
32
8
No Load Current A
0.16
0.16
0.16
0.16
0.16
0.16
0.16
0.16
0.16
0.16
Rated Negative KG.CM
2
2.5
3.2
5
6
18
17
24
30
70
Load Speed r min
1320
980
360
170
96
70
50
37
33
7.7
Load Current A
2.1
2.3
2
2
2
2.2
2
1.8
1.6
2.1
Output Power W
23
20
12
12
17
12.5
9.6
9.2
10
5.8
Locked Rotor Torsion KG.CM
4.9
7
16
28
50
70
96
Blocking is Prohibited
Locked Rotor Current A
5
5
5
5
5
5
5
L size MM
26.8
32.8
38.9
45
.
Package List:
1 x Planetary Gear Motor Reduction
Note:
1. Do not place the product in an environment that is too corrosive, humid and high temperature.2. Please supply power according to the operating voltage, using other voltages may cause fire and product damage.
